Available Packages:
MC833 MC833 + 2 x CCFK12 MC833 + FS433 + 2 x CCFK12 MC833 + FS433/833-16F + CCFK16
MC833 MC833 + 2 x CCFK12 MC833 + FS433 + 2 x CCFK12 MC833 + FS433/833-16F + CCFK16
Attributes:

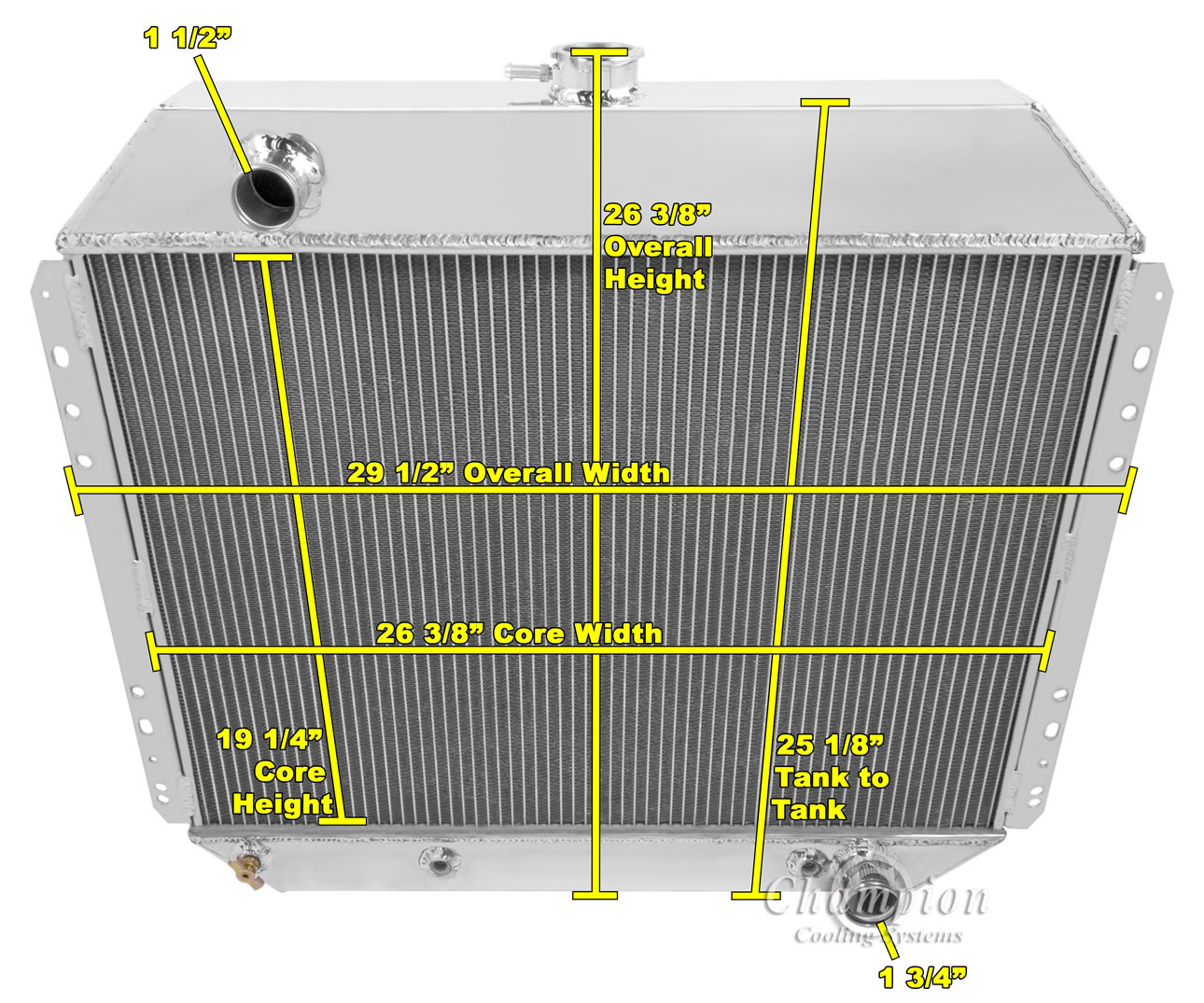

| CORE DIM (H x W): 19 1/4 X 26 3/8 |
| OVERALL (H x W): 26 3/8 X 29 1/2 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 4 ROW |
| CORE THICKNESS: 2 3/4 |
| TANK WIDTH: 3 1/8 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1978 - 1979 Ford Bronco | Chevy Conversion | |
| 1968 - 1979 Ford F-Series | Chevy Conversion |
