Attributes:

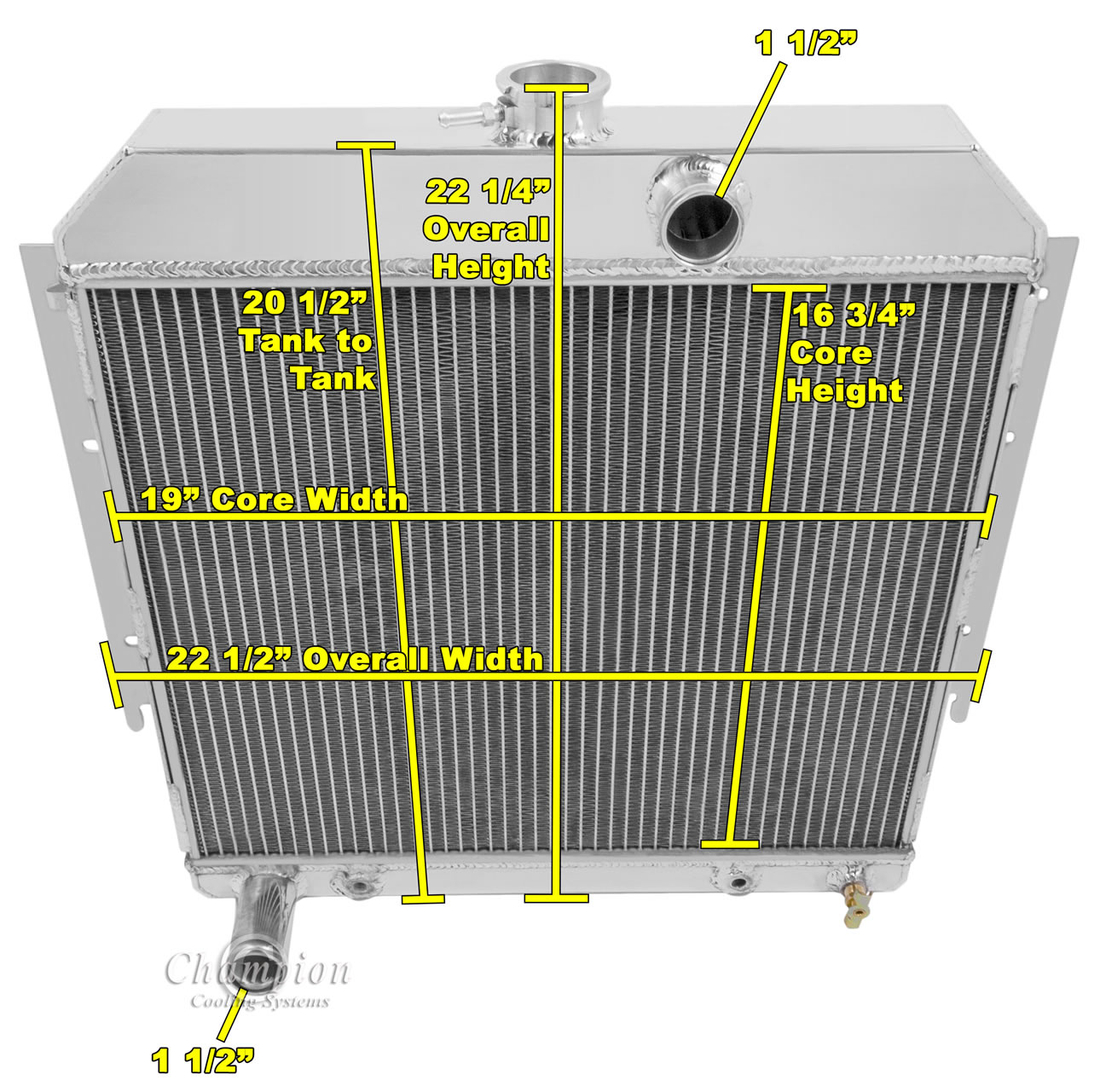

| CORE DIM (H x W): 16 3/4 X 19 |
| OVERALL (H x W): 22 1/4 X 22 1/2 |
| HOSE LOCATIONS: IN: OFF-SET PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 4 ROW |
| CORE THICKNESS: 2 3/4 |
| TANK WIDTH: 3 1/8 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1964 Dodge Dart | 4.5L 273ci V8 | |
| 1964 Plymouth Barracuda | 4.5L 273ci V8 | |
| 1964 Plymouth Valiant | 4.5L 273ci V8, 5.9L 361ci V8 |
