IN STOCK (5)

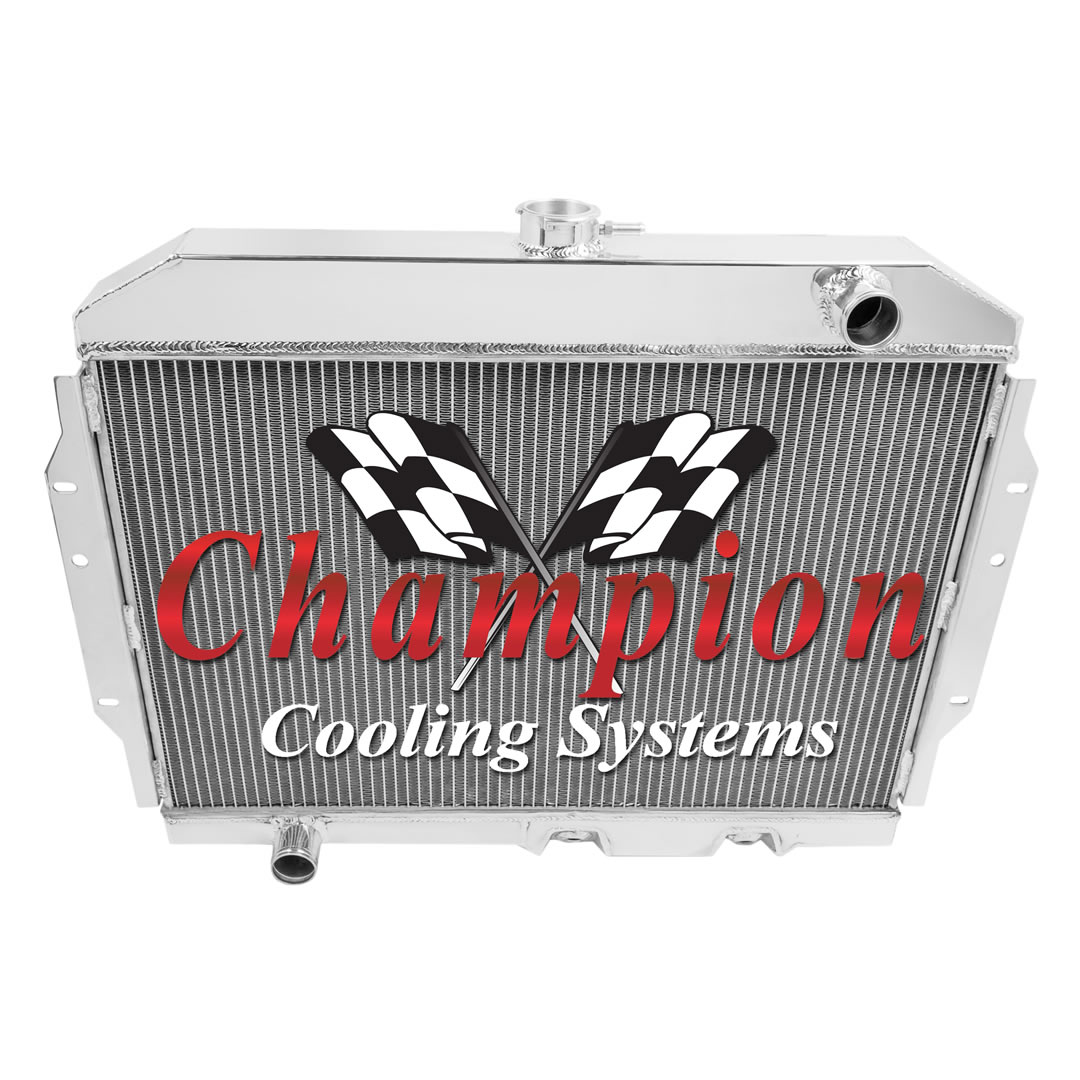

4 Row All Aluminum Radiator

Engine side mounting brackets, for Grill side mounting brackets see part# 403
Related Products:
Available Packages:
MC407 MC407 + 2 x CCFK12 MC407 + CCFK16 MC407 + 2 x CCFK10 MC407 + FS407 + 2 x CCFK12

Attributes:


CORE DIM (H x W): 15 7/8 X 24 1/8
OVERALL (H x W): 23 1/4 X 27 1/4
HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2
FILL NECK: YES
TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 4 ROW
CORE THICKNESS: 2 3/4

Applications:

Name Engine Notes
1958 - 1974 American Motors Ambassador 3.3L 199ci L6, 3.8L 232ci L6, 4.2L 258ci L6, 4.7L 287ci V8, 4.7L 290ci V8, 4.8L 290ci V8, 5.0L 304ci V8, 5.1L 309ci V8, 5.3L 327ci V8, 5.4L 327ci V8, 5.6L 343ci V8, 5.9L 360ci V8, 6.4L 390ci V8, 6.6L 401ci V8
1958 - 1968 American Motors American 3.2L 196ci L6, 3.3L 199ci L6, 3.8L 232ci L6, 4.7L 290ci V8, 5.6L 343ci V8
1968 - 1970 American Motors AMX 4.7L 290ci V8, 4.8L 290ci V8, 5.0L 304ci V8, 5.6L 343ci V8, 5.9L 360ci V8, 6.4L 390ci V8
1961 - 1966 American Motors Classic 3.2L 196ci L6, 3.3L 199ci L6, 3.8L 232ci L6, 4.1L 250ci V8, 4.7L 287ci V8, 4.7L 290ci V8, 5.3L 327ci V8
1961 - 1962 American Motors Custom 3.2L 196ci L6
1961 - 1962 American Motors Deluxe 3.2L 196ci L6
1970 - 1974 American Motors Gremlin 3.3L 199ci L6, 3.8L 232ci L6, 4.2L 258ci L6, 5.0L 304ci V8
1970 - 1974 American Motors Hornet 3.3L 199ci L6, 3.8L 232ci L6, 4.2L 258ci L6, 5.0L 304ci V8, 5.9L 360ci V8
1968 - 1974 American Motors Javelin 3.8L 232ci L6, 4.2L 258ci L6, 4.7L 290ci V8, 5.0L 304ci V8, 5.6L 343ci V8, 5.9L 360ci V8, 6.4L 390ci V8, 6.6L 401ci V8
1965 - 1967 American Motors Marlin 3.3L 199ci L6, 3.8L 232ci L6, 4.7L 287ci V8, 4.7L 290ci V8, 5.3L 327ci V8, 5.6L 343ci V8
1971 - 1974 American Motors Matador 3.8L 232ci L6, 4.2L 258ci L6, 5.0L 304ci V8, 5.9L 360ci V8, 6.6L 401ci V8
1958 - 1960 American Motors Rambler 3.2L 196ci L6
1969 American Motors Rambler 3.3L 199ci L6, 3.8L 232ci L6, 4.7L 290ci V8, 5.6L 343ci V8, 6.4L 390ci V8
1958 - 1961 American Motors Rebel 4.1L 250ci V8
1966 - 1970 American Motors Rebel 3.3L 199ci L6, 3.8L 232ci L6, 4.7L 287ci V8, 4.7L 290ci V8, 4.8L 290ci V8, 5.0L 304ci V8, 5.1L 309ci V8, 5.3L 327ci V8, 5.6L 343ci V8, 5.9L 360ci V8, 6.4L 390ci V8
1966 American Motors Rogue 4.7L 290ci V8
1961 - 1962 American Motors Super Six 3.2L 196ci L6
