Attributes:

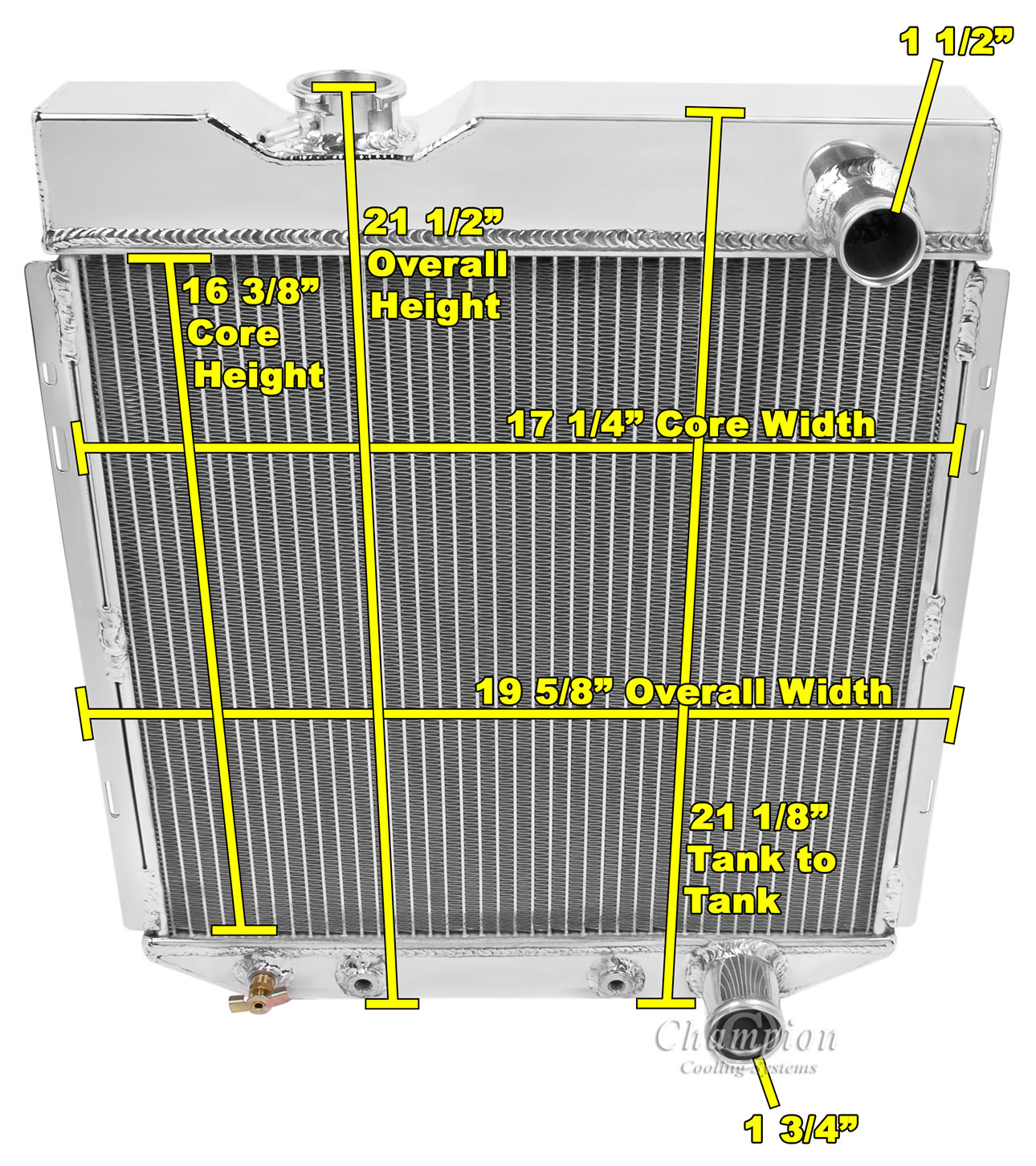

| CORE DIM (H x W): 16 3/8 X 17 1/4 |
| OVERALL (H x W): 21 1/2 X 19 5/8 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 4 ROW |
| CORE THICKNESS: 2 3/4 |
| TANK WIDTH: 3 1/8 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1962 - 1965 Ford Falcon | 3.3L 200ci L6, 3.6L 221ci V8, 4.3L 260ci V8, 4.7L 289ci V8 | |
| 1964 - 1966 Ford Mustang | 4.3L 260ci V8, 4.7L 289ci V8 | |
| 1962 - 1965 Ford Ranchero | 4.3L 260ci V8, 4.7L 289ci V8 | |
| 1962 - 1965 Mercury Comet | 3.6L 221ci V8, 4.3L 260ci V8, 4.7L 289ci V8 |
