Attributes:

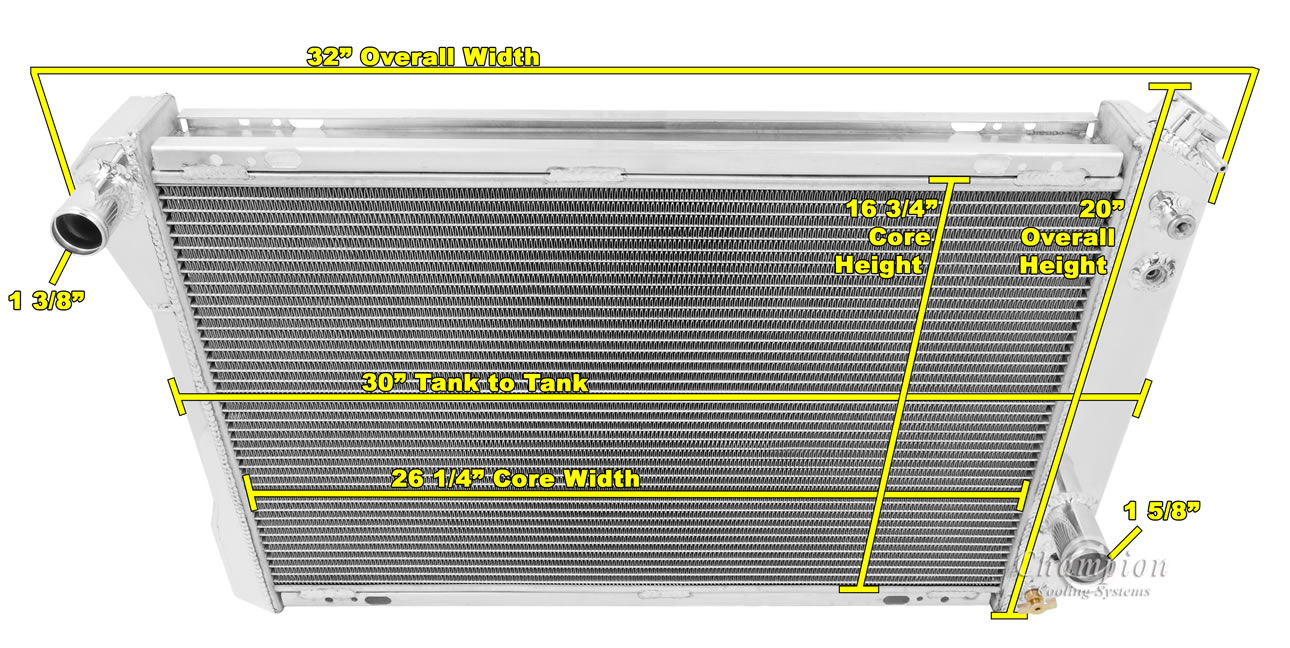

| CORE DIM (H x W): 17 1/4 X 26 1/4 |
| OVERALL (H x W): 20 X 32 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 3/8 - OUT: 1 5/8 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 2 ROW |
| CORE THICKNESS: 1 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1982 - 1992 Chevrolet Camaro | 2.5L 151ci L4, 3.8L 231ci V6, 5.0L 305ci V8, 5.7L 350ci V8 | |
| 1982 - 1992 Pontiac Firebird Trans Am | 2.5L 151ci L4, 3.8L 231ci V6, 5.0L 305ci V8, 5.7L 350ci V8 |
