Available Packages:
EC8164 EC8164 + 2 x CCFK12 EC8164 + CCFK16 EC8164 + FS6164/8164 + 2 x CCFK12 EC8164 + FS6164/8164-16F + CCFK16
EC8164 EC8164 + 2 x CCFK12 EC8164 + CCFK16 EC8164 + FS6164/8164 + 2 x CCFK12 EC8164 + FS6164/8164-16F + CCFK16
Attributes:

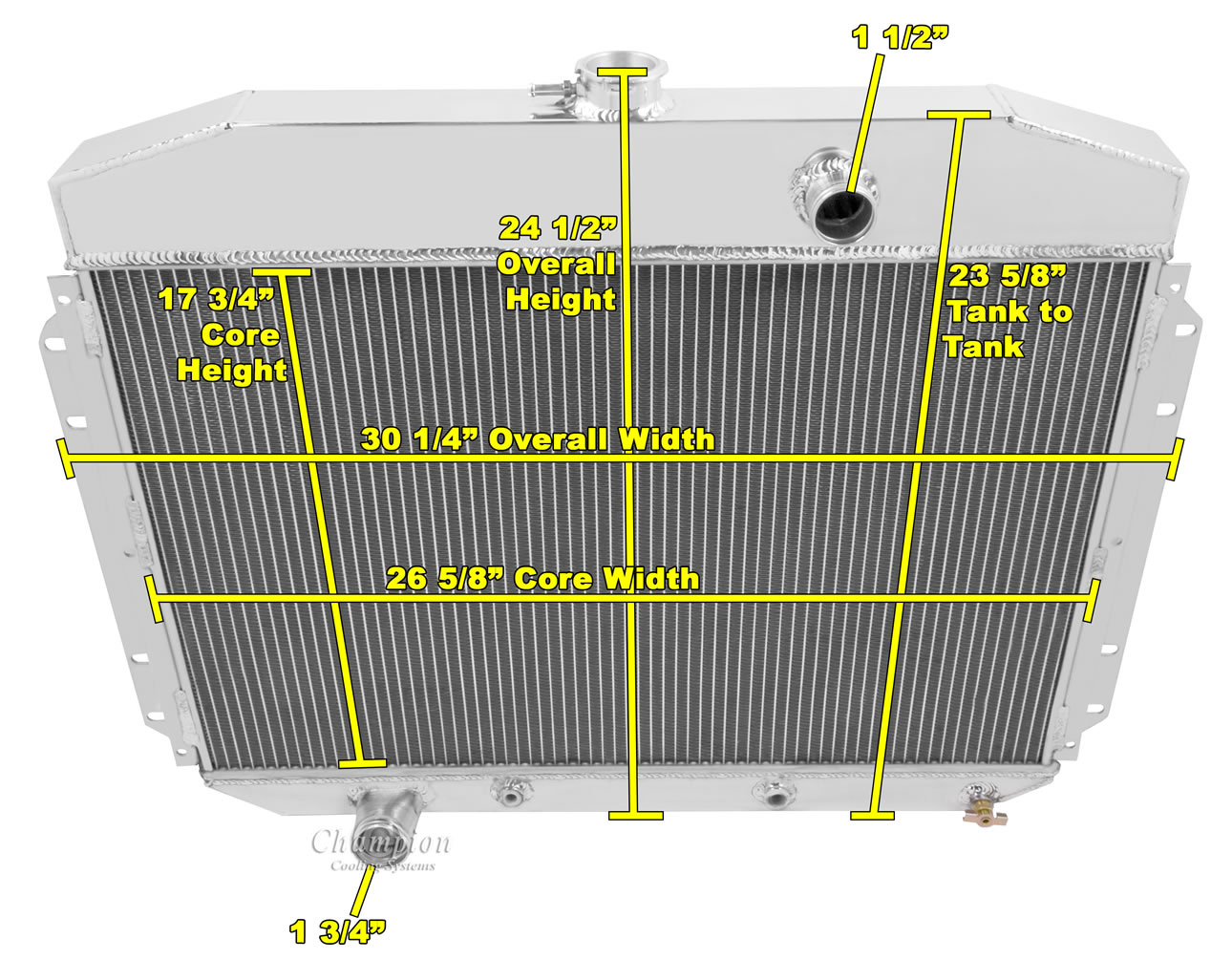

| CORE DIM (H x W): 17 3/4 X 26 1/2 |
| OVERALL (H x W): 24 1/4 X 30 1/4 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1961 - 1964 Ford F-Series | Factory V8 |
