Attributes:

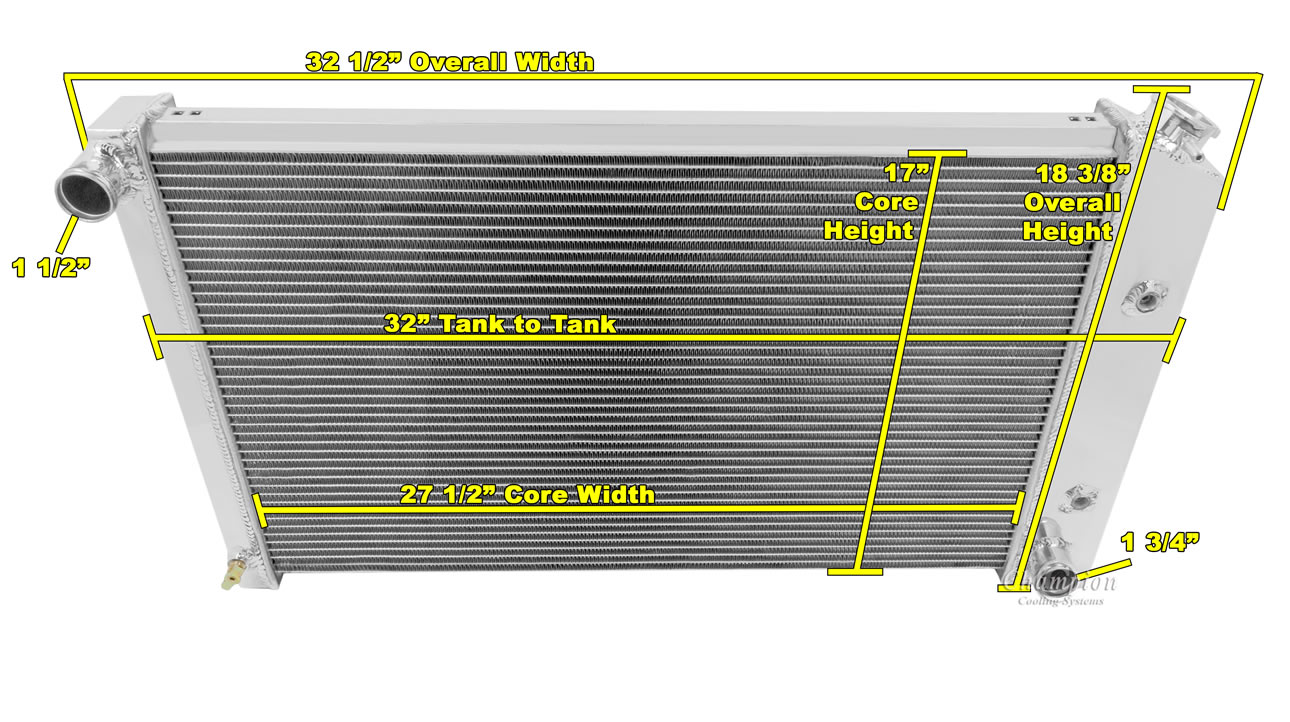

| CORE DIM (H x W): 17 X 27 1/2 |
| OVERALL (H x W): 18 3/8 X 32 1/2 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 2 ROW |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1970 - 1981 Pontiac Firebird Trans Am | 3.8L 231ci V6, 4.3L 265ci V8, 4.9L 301ci V8, 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 6.6L 403ci V8 |
