Attributes:

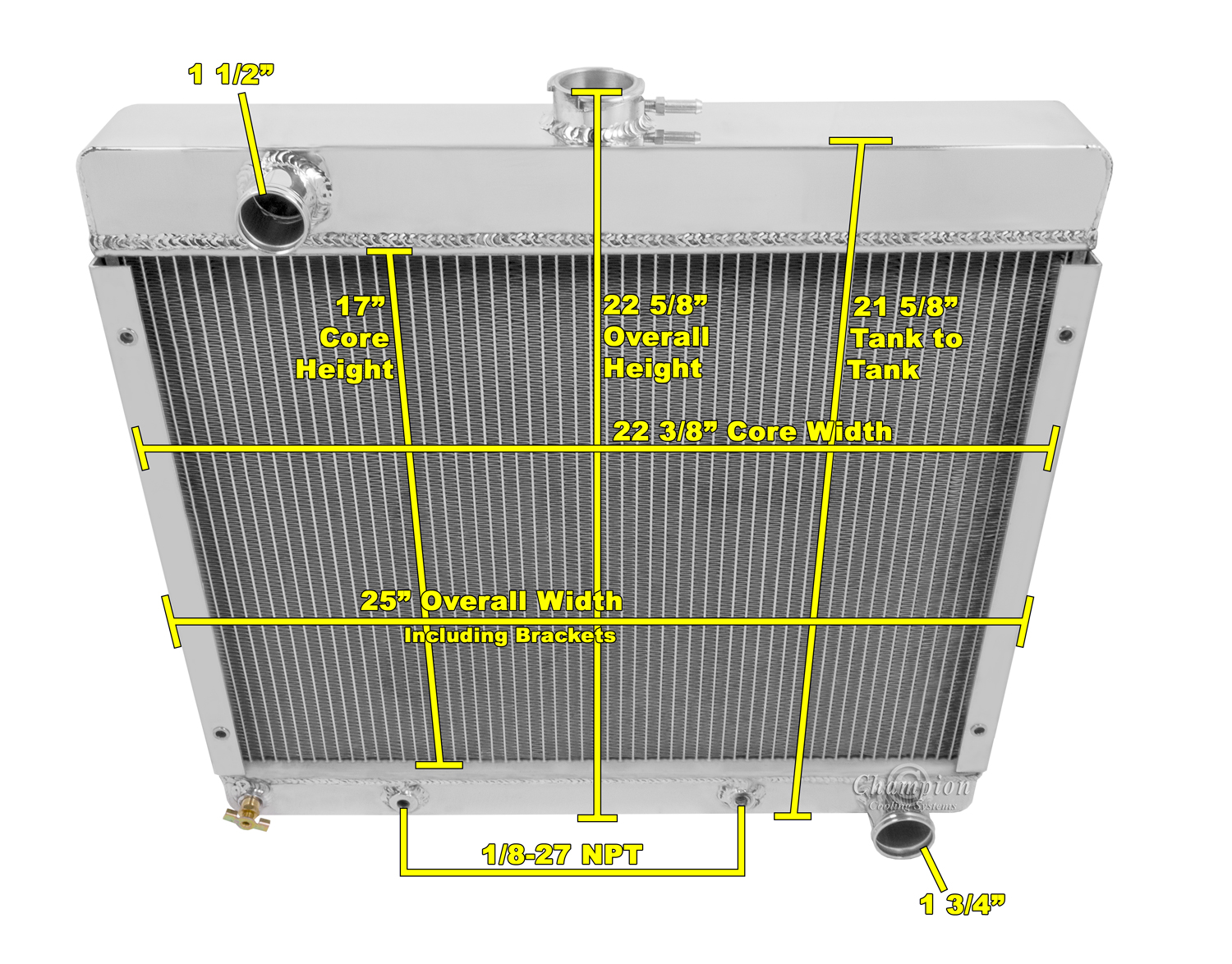

| CORE DIM (H x W): 17 X 22 3/8 |
| OVERALL (H x W): 22 5/8 X 25 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1970 - 1972 Dodge Dart | 5.2L 318ci V8, 5.6L 340ci V8, 5.9L 360ci V8 | Small Block |
| 1970 - 1972 Plymouth Duster | 5.2L 318ci V8, 5.6L 340ci V8, 5.9L 360ci V8 | Small Block |
| 1970 - 1972 Plymouth Valiant | 5.2L 318ci V8, 5.6L 340ci V8, 5.9L 360ci V8 | Small Block |
