Attributes:

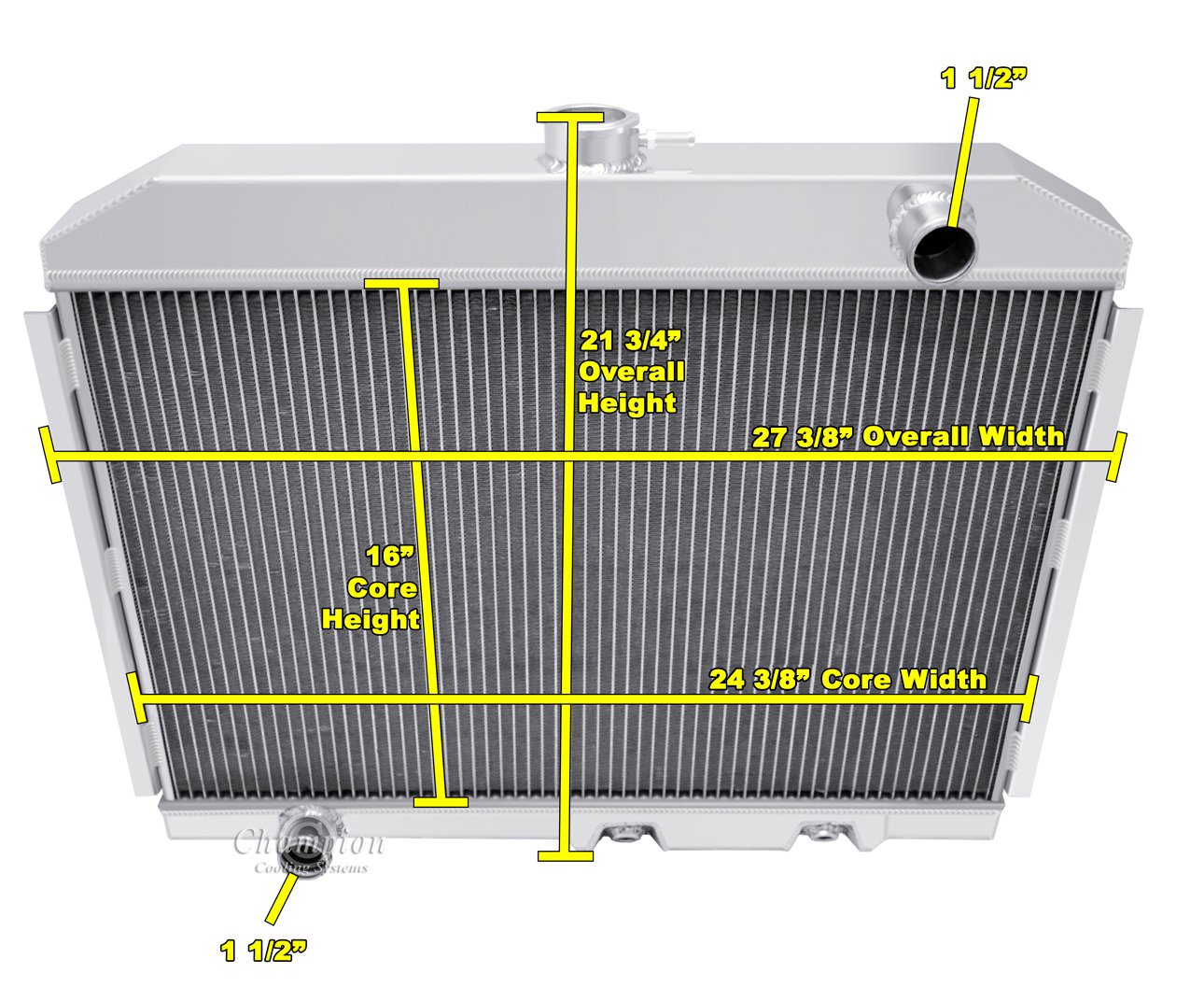

| CORE DIM (H x W): 16 X 24 3/8 |
| OVERALL (H x W): 21 3/4 X 27 3/8 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1972 - 1976 AMC Gremlin | 3.8L 232ci L6, 4.2L 258ci L6, 5.0L 304ci V8 | |
| 1972 - 1977 AMC Hornet | 3.8L 232ci L6, 4.2L 258ci L6, 5.0L 304ci V8 |
