Attributes:

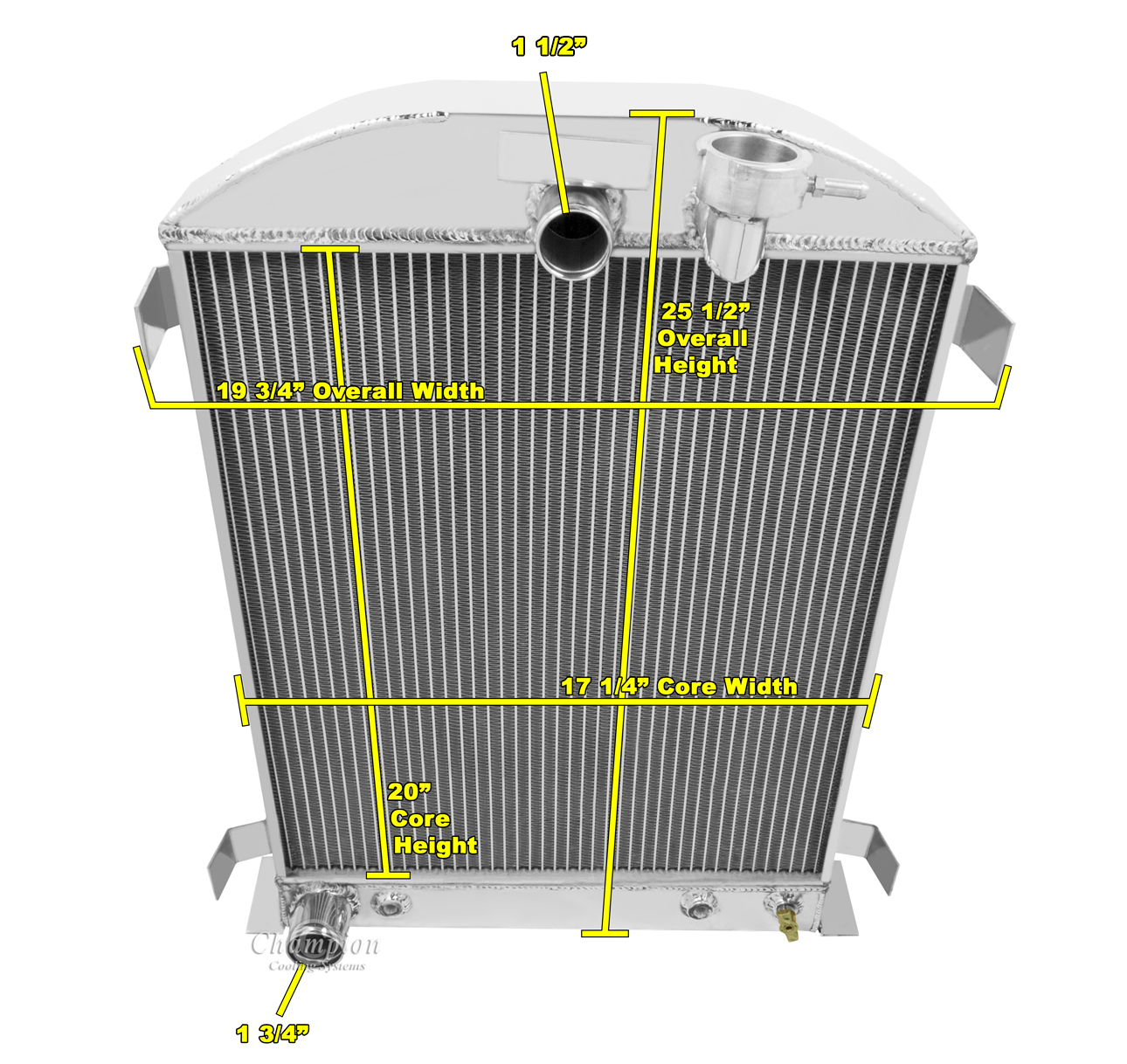

| CORE DIM (H x W): 20 X 17 1/4 |
| OVERALL (H x W): 25 1/2 X 19 3/4 |
| HOSE LOCATIONS: IN: CENTER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: FLANGES |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1932 Ford High Boy | Ford Configuration |
