Attributes:

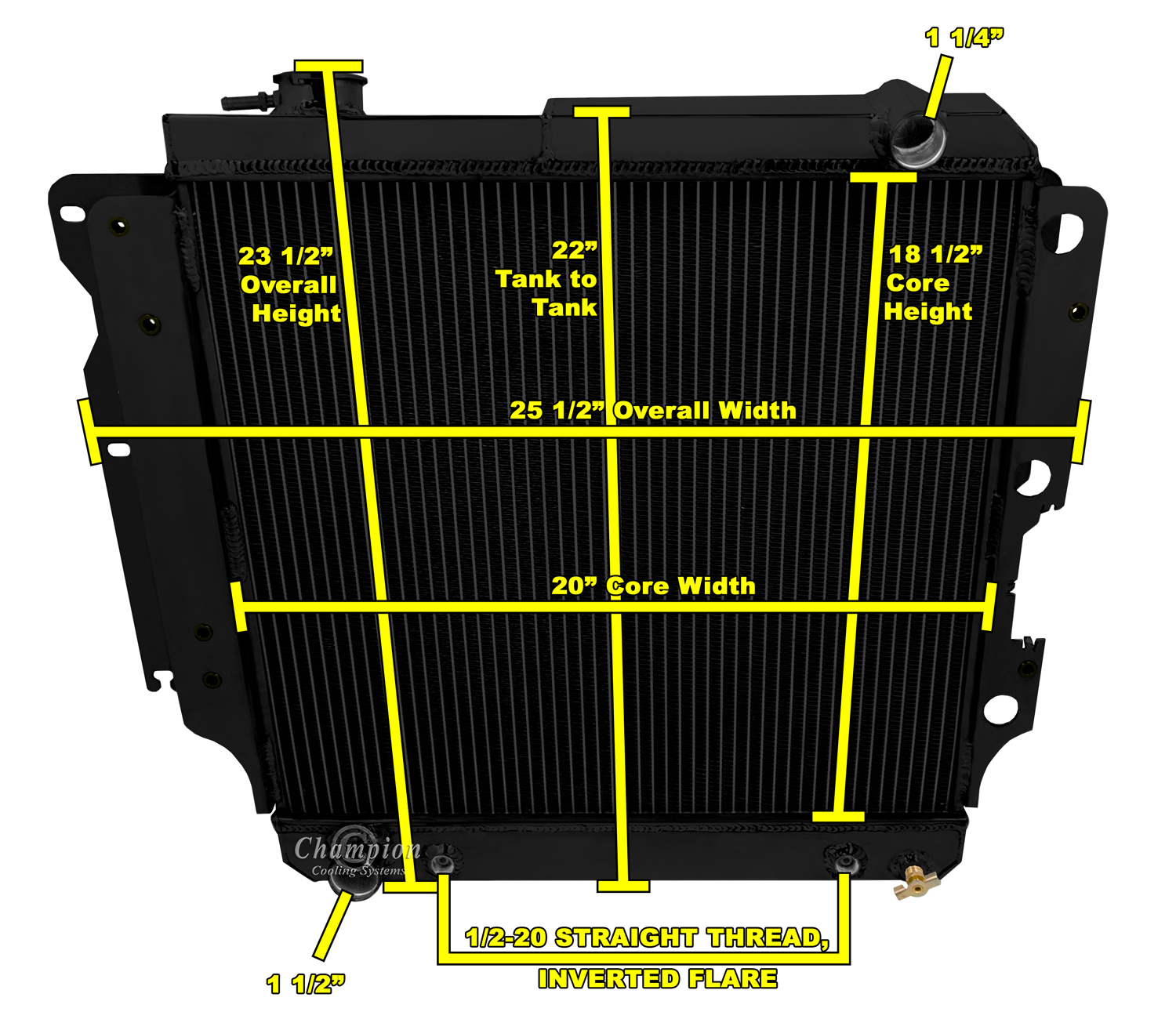

| CORE DIM (H x W): 18 1/2 X 20 |
| OVERALL (H x W): 23 1/2 X 25 1/2 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/4 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1987 - 2006 Jeep Wrangler | 2.4L 148ci L4, 2.5L 150ci L4, 4.0L 241ci L6, 4.0L 242ci L6, 4.2L 258ci L6 | Oil cooler is not compatible with quick disconnects, barbed oil cooler fittings included |
