Attributes:

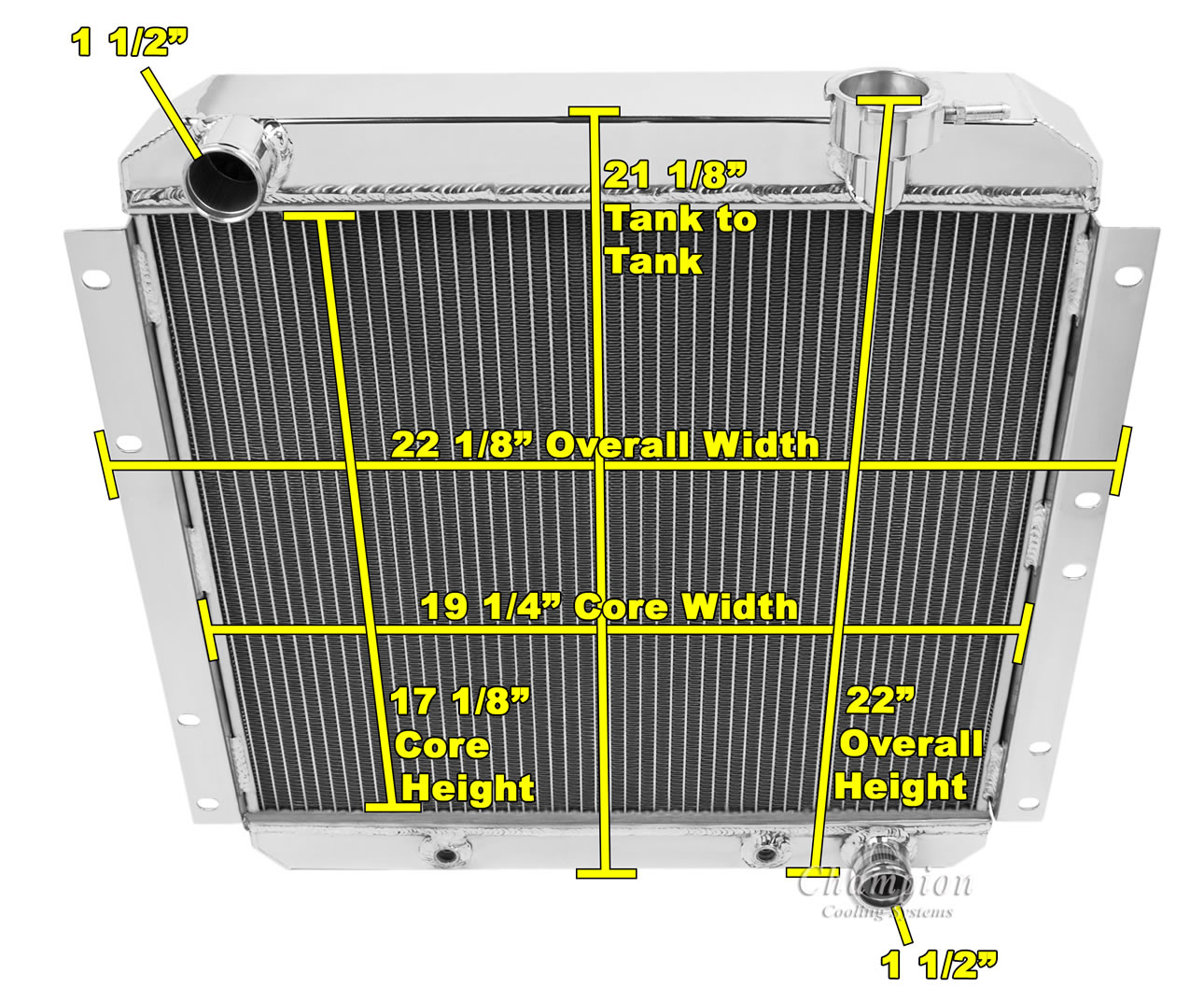

| CORE DIM (H x W): 17 1/8 X 19 1/4 |
| OVERALL (H x W): 22 X 22 1/8 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW |
| CORE THICKNESS: 1 1/2 |
| TANK WIDTH: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1958 - 1980 Toyota Land Cruiser | 3.9L, 4.2L V6 | |
| 1958 - 1984 Toyota Land Cruiser FJ40 | 3.9L, 4.2L V6 |
