2 Row 1" Tubes Custom Shop Radiator

Dual Pass

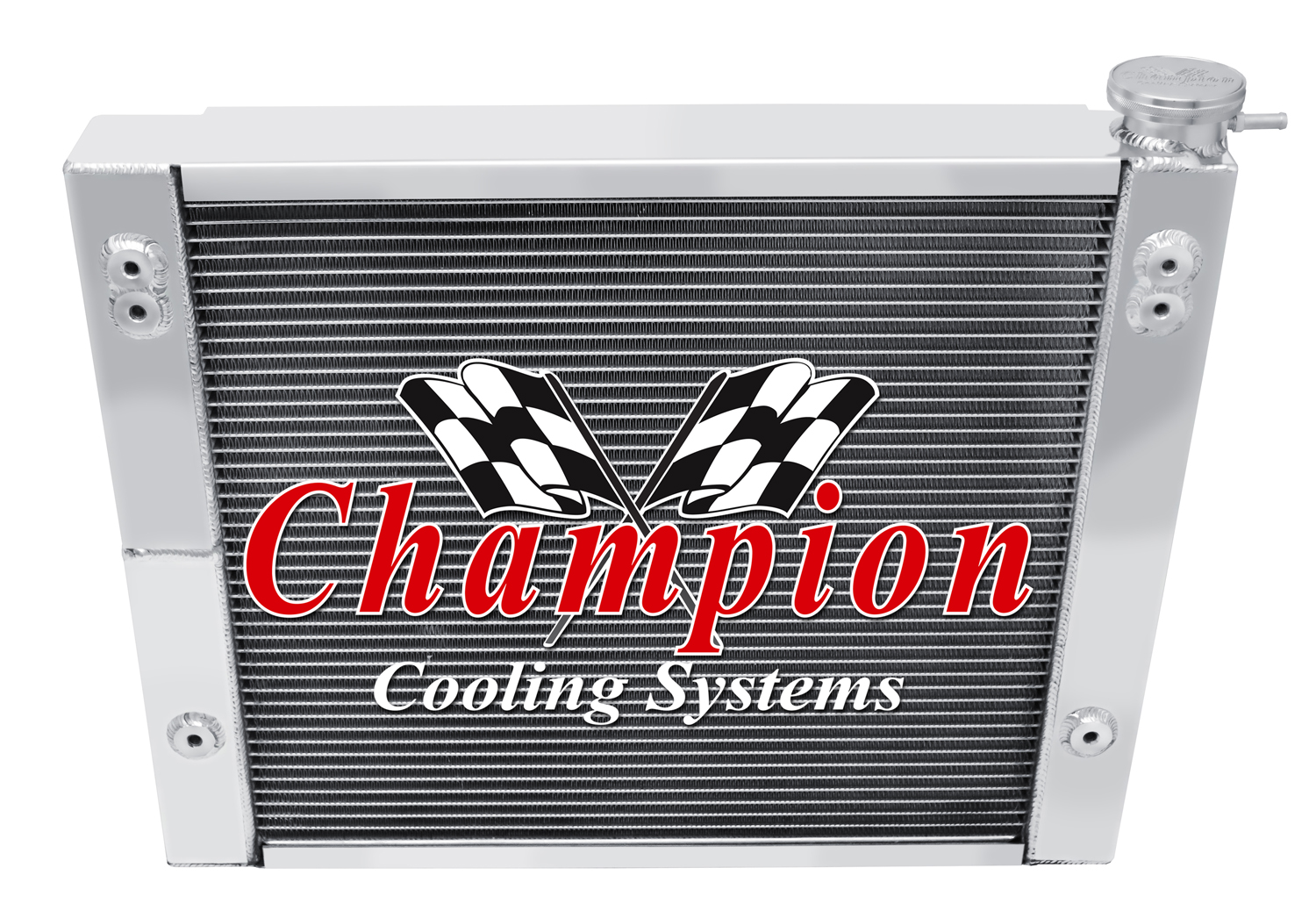

An American assembled 2 row 1" double-pass radiator crossflow replacement for the stock downflow. This radiator comes with the shroud welded on the radiator with a 16" fan and inlet / outlet 'DP' fittings per customer request. The radiator and shroud are polished to a mirror finish. Radiator is a replacement for all engines and will bolt up to the stock core support for 1967 - 1970 Ford Mustang. It fits Ford V8 motors with Passenger Side Outlet and Chevy LS Conversions. NOTE: This can be used in a 1964 - 1966 Mustang but there will need to be new holes drilled for mounting.

INCLUDES: Fan Shroud & 16" Fan

Available Packages:
CS6770DP

Attributes:


CORE DIM (H x W): 17 1/2 X 19 1/8
OVERALL (H x W): 19 3/4 X 24
HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER
HOSE FITTINGS: IN: 16ORB(FEMALE) - OUT: 16ORB(FEMALE)
MOUNTING TYPE: MOUNTING BUNG 5/16-18
FLOW DIRECTION: CROSS FLOW
CORE ROWS: 2
CORE THICKNESS: 2 1/4
TANK WIDTH: 2 7/8

Applications:

Name Engine Notes
1964 - 1968 Ford Country Sedan 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 LS Swap
1964 - 1968 Ford Country Squire 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 LS Swap
1963 - 1969 Ford Fairlane 3.6L 221ci V8, 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 LS Swap
1966 - 1970 Ford Falcon 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 7.0L 429ci V8 LS Swap
1964 - 1967 Ford Galaxie 4.3L 260ci V8, 4.7L 289ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 LS Swap
1967 - 1968 Ford LTD 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 LS Swap
1967 - 1970 Ford Mustang 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8, 7.0L 429ci V8 LS Swap
1967 - 1969 Ford Ranchero 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 428ci V8 LS Swap
1968 - 1969 Ford Torino 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 LS Swap
1967 - 1970 Mercury Cougar 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8, 7.0L 429ci V8 LS Swap
