Available Packages:
CC889-BLK
CC889-BLK
Attributes:

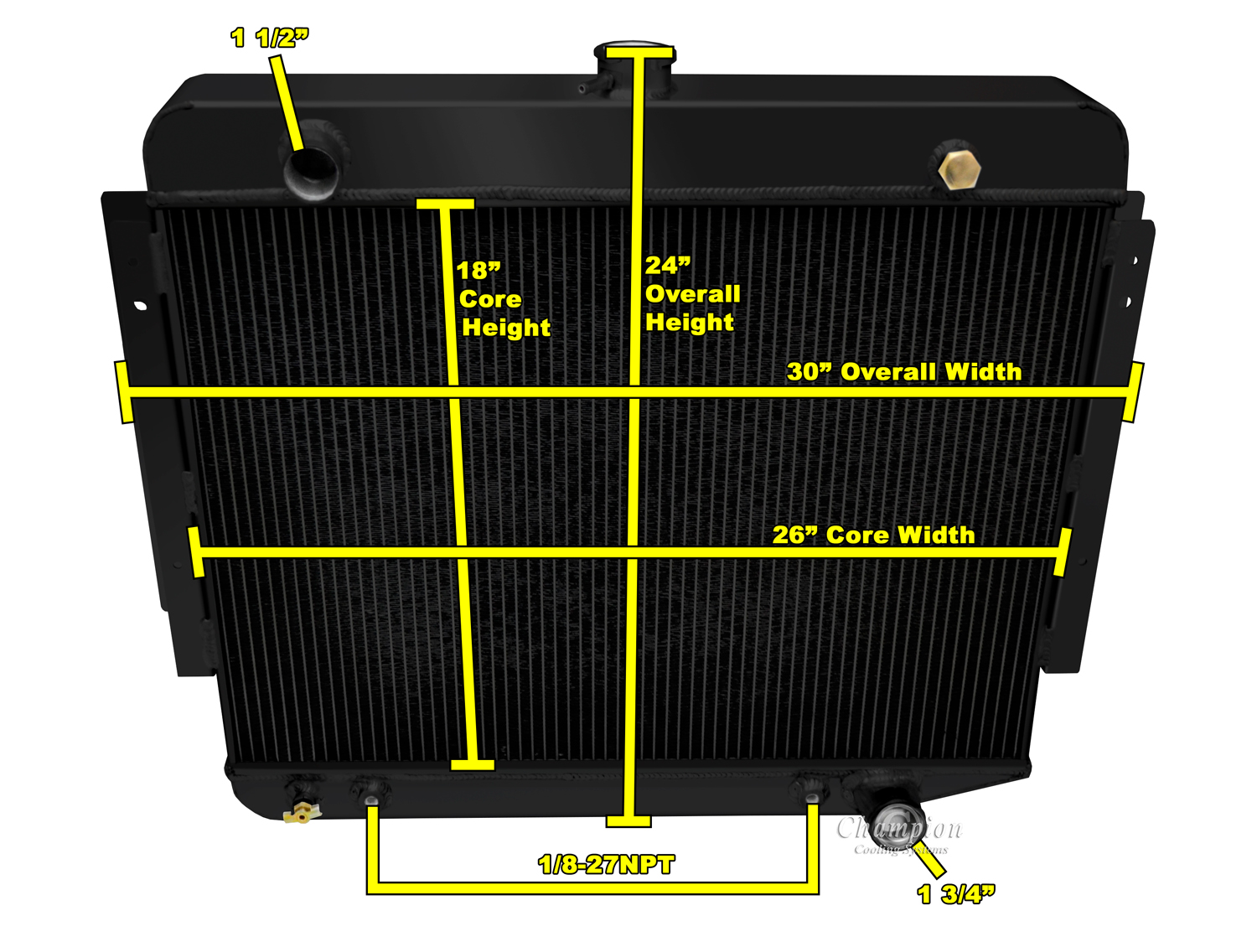

| CORE DIM (H x W): 18 X 26 |
| OVERALL (H x W): 24 X 30 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 2 3/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1971 - 1978 Dodge B100 Van | 5.2L 318ci V8, 5.9L 360ci V8 | |
| 1971 - 1978 Dodge B200 Van | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge B300 Van | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1974 - 1978 Dodge CB300 | 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1972 - 1979 Dodge D/W Series Pickups | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge D100 Pickup | 5.2L 318ci V8, 5.9L 360ci V8, 6.3L 383ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1977 - 1978 Dodge D150 | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge D200 | 5.2L 318ci V8, 5.9L 360ci V8, 6.3L 383ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge D300 Pickup | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1978 Dodge D400 | 5.9L 360ci V8, 7.2L 440ci V8 | |
| 1978 Dodge D450 | 5.9L 360ci V8, 7.2L 440ci V8 | |
| 1970 - 1978 Dodge Ram Vans | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1974 - 1978 Dodge Ramcharger | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge W100 Pickup | 5.2L 318ci V8, 5.9L 360ci V8, 6.3L 383ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1977 - 1978 Dodge W150 | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge W200 Pickup | 5.2L 318ci V8, 5.9L 360ci V8, 6.3L 383ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1971 - 1978 Dodge W300 Pickup | 5.2L 318ci V8, 5.9L 360ci V8, 6.3L 383ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1974 - 1978 Plymouth PB100 Van | 5.2L 318ci V8, 5.9L 360ci V8 | |
| 1974 - 1978 Plymouth PB200 Van | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1974 - 1978 Plymouth PB300 Van | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 | |
| 1974 - 1979 Plymouth Trailduster | 5.2L 318ci V8, 5.9L 360ci V8, 6.6L 400ci V8, 7.2L 440ci V8 |
