Available Packages:
CC7170
CC7170
Attributes:

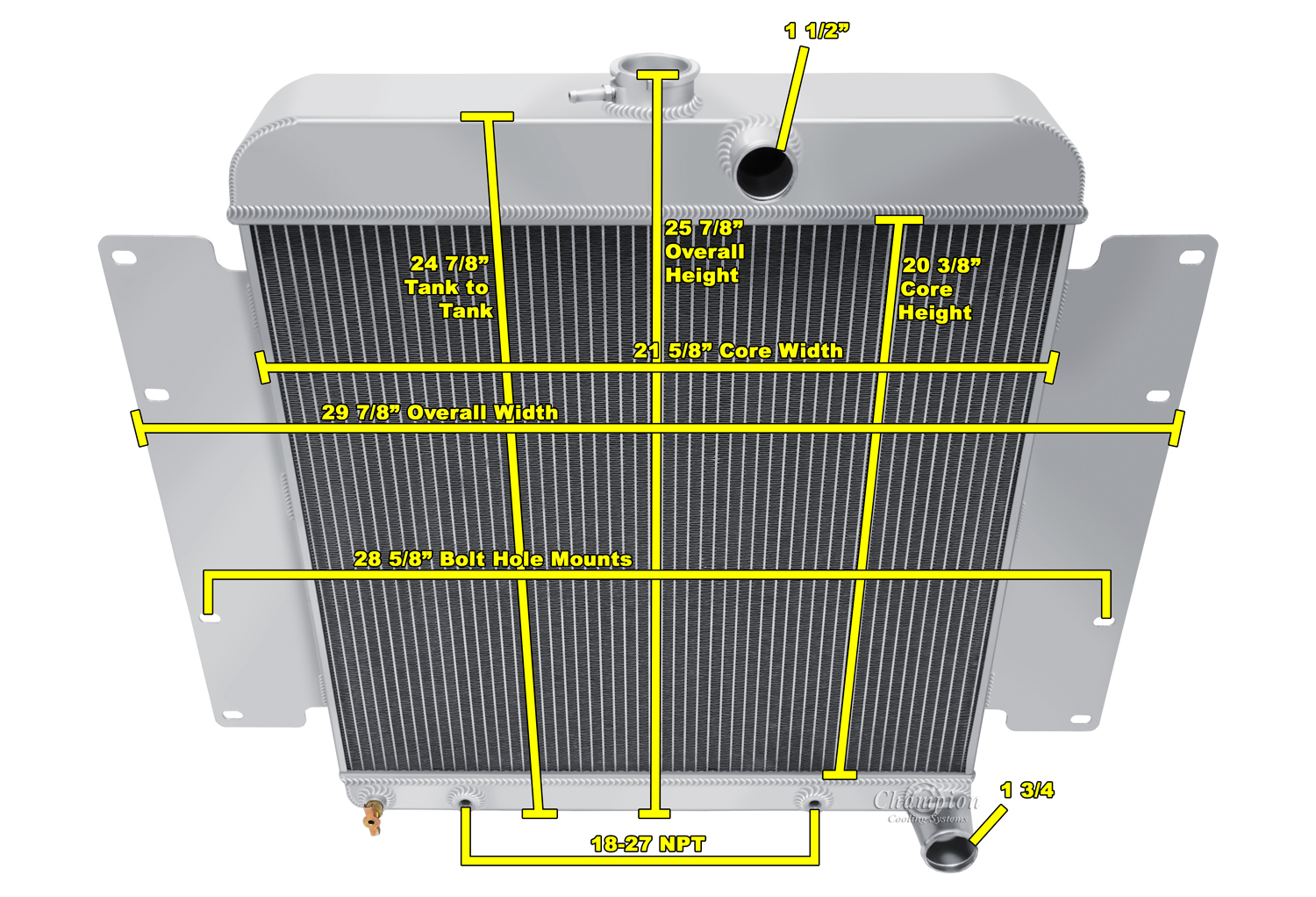

| CORE DIM (H x W): 20 3/8 X 21 5/8 |
| OVERALL (H x W): 25 7/8 X 29 7/8 |
| HOSE LOCATIONS: IN: OFF-SET PASSENGER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 |
| TANK WIDTH: 0 3/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1970 - 1971 Dodge D100 Pickup | 5.2L 318ci V8 | |
| 1970 - 1971 Dodge D200 Pickup | 5.2L 318ci V8 | |
| 1970 - 1971 Dodge D300 Pickup | 5.2L 318ci V8 |
