IN STOCK (1)

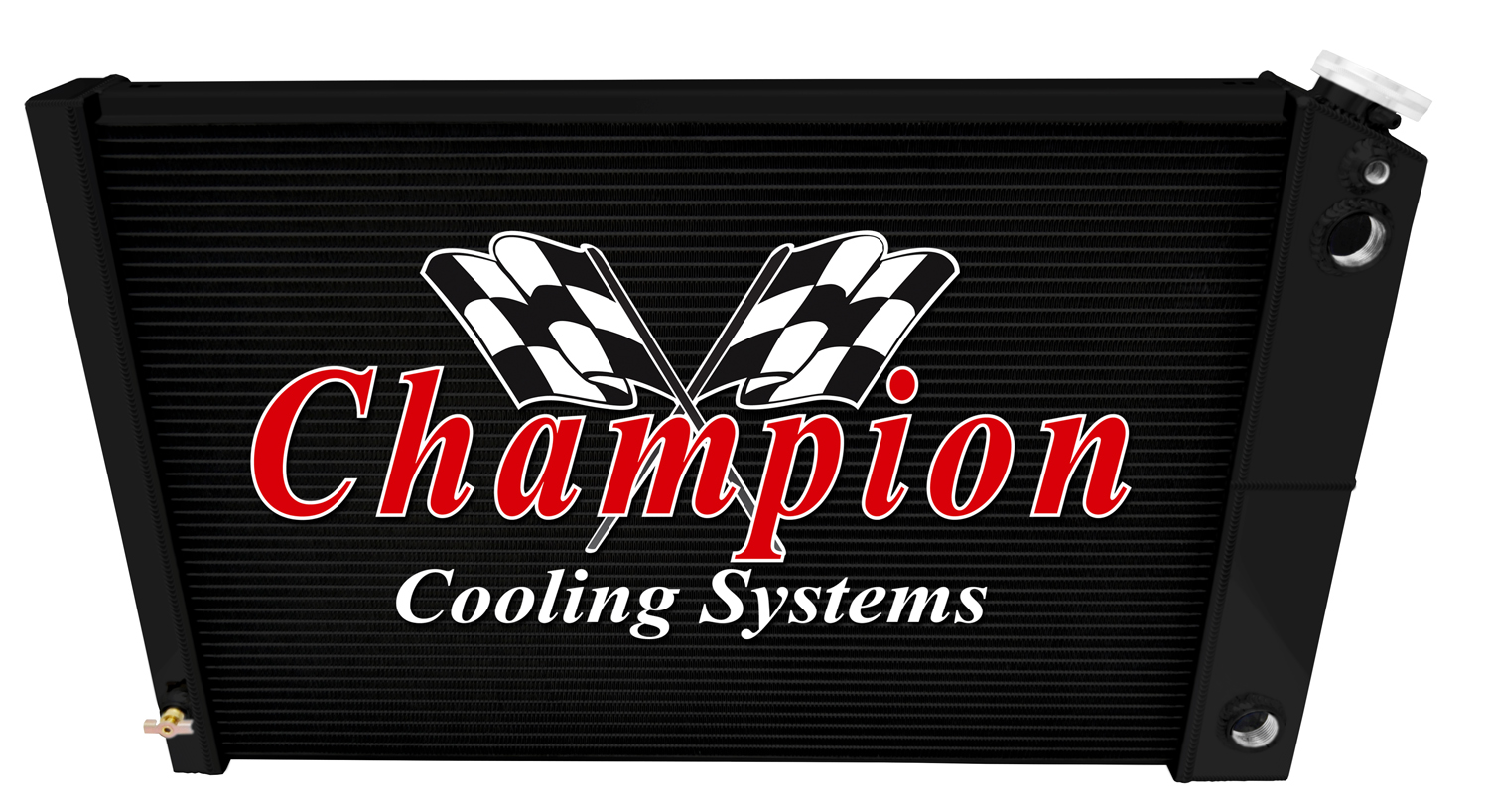

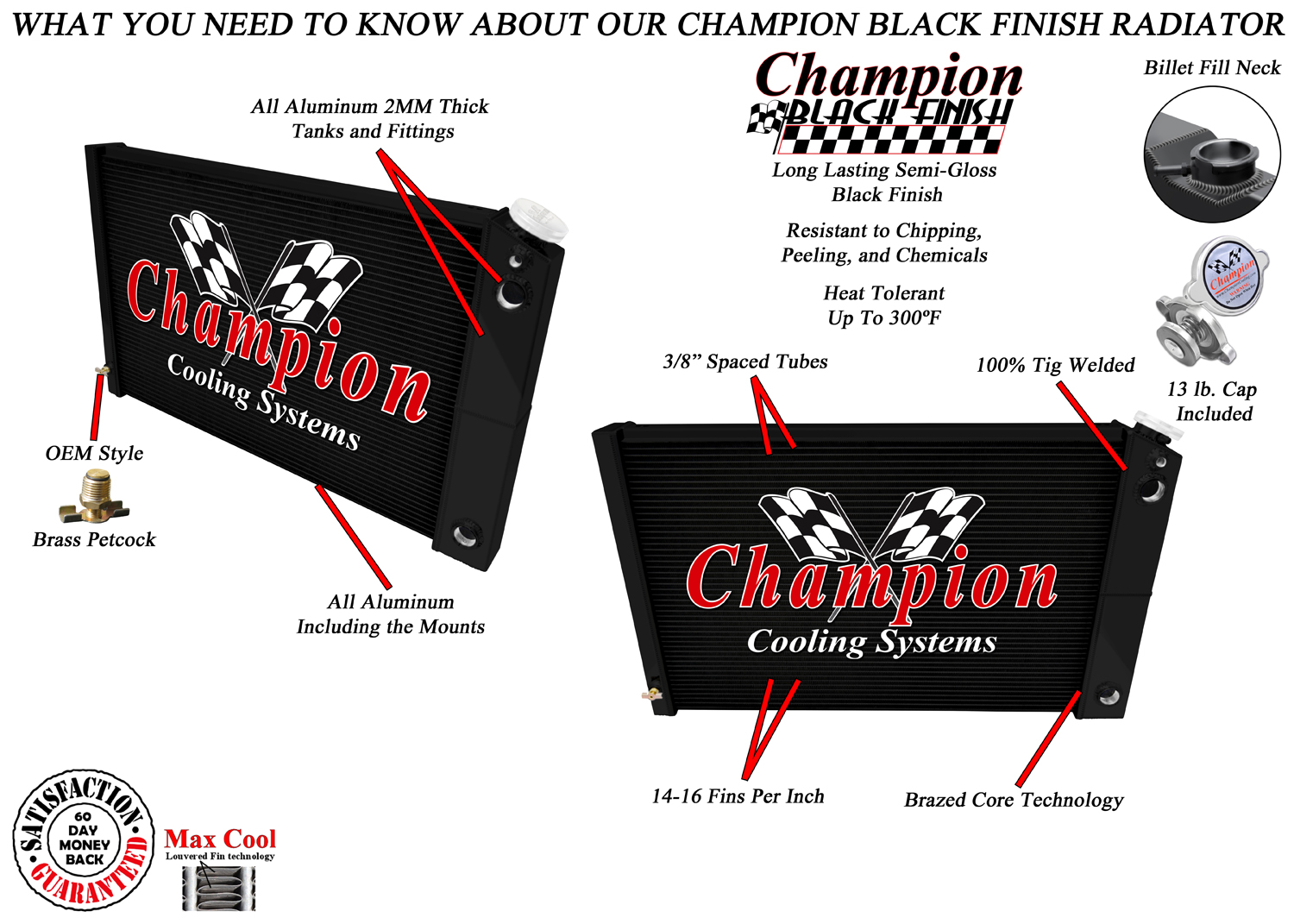

3 Row Dual Pass Black Finish All Aluminum Radiator

LS Swap 19"x28" Core

Multiple radiators were used for this application please verify your core size(19" x 28" Core) and hose configurations(In: Passenger - Out: Passenger)
Related Products:
Available Packages:
CC716DP-BLK CC716DP-BLK + FS716-BLK + 2 x CCFK14

Attributes:


CORE DIM (H x W): 18 7/8 X 28 1/4
OVERALL (H x W): 20 7/8 X 33 3/4
HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER
HOSE FITTINGS: IN: 16ORB(FEMALE) - OUT: 16ORB(FEMALE)
FILL NECK: YES
MOUNTING TYPE: SADDLE
FLOW DIRECTION: CROSS FLOW
CORE ROWS: 3
CORE THICKNESS: 2 1/4
TANK WIDTH: 2 1/2

Applications:

Name Engine Notes
1973 - 1974 Chevrolet Blazer 7.4L 454ci V8 LS Swap
1987 - 1991 Chevrolet Blazer 5.0L 305ci V8, 5.7L 350ci V8 LS Swap
1975 - 1986 Chevrolet C10 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1973 - 1974 Chevrolet C10 Pickup 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1973 - 1986 Chevrolet C10 Suburban 5.0L 305ci V8, 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1975 - 1987 Chevrolet C20 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1973 - 1974 Chevrolet C20 Pickup 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1973 - 1986 Chevrolet C20 Suburban 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1975 - 1986 Chevrolet C30 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1973 - 1974 Chevrolet C30 Pickup 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1973 - 1987 Chevrolet C50 5.7L 350ci V8 LS Swap
1973 - 1987 Chevrolet C60 5.7L 350ci V8 LS Swap
1979 - 1980 Chevrolet C70 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1986 Chevrolet C70 5.7L 350ci V8 LS Swap
1975 - 1986 Chevrolet K10 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1973 - 1974 Chevrolet K10 Pickup 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1973 - 1986 Chevrolet K10 Suburban 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1975 - 1986 Chevrolet K20 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1973 - 1974 Chevrolet K20 Pickup 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1973 - 1986 Chevrolet K20 Suburban 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1977 - 1986 Chevrolet K30 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1973 - 1974 Chevrolet K30 Pickup 5.7L 350ci V8, 7.4L 454ci V8 LS Swap
1975 - 1986 Chevrolet K5 Blazer 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
1987 - 1991 Chevrolet Suburban 5.7L 350ci V8 LS Swap
1973 - 1991 GMC Jimmy 4.1L 250ci L6, 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 7.4L 454ci V8 LS Swap
