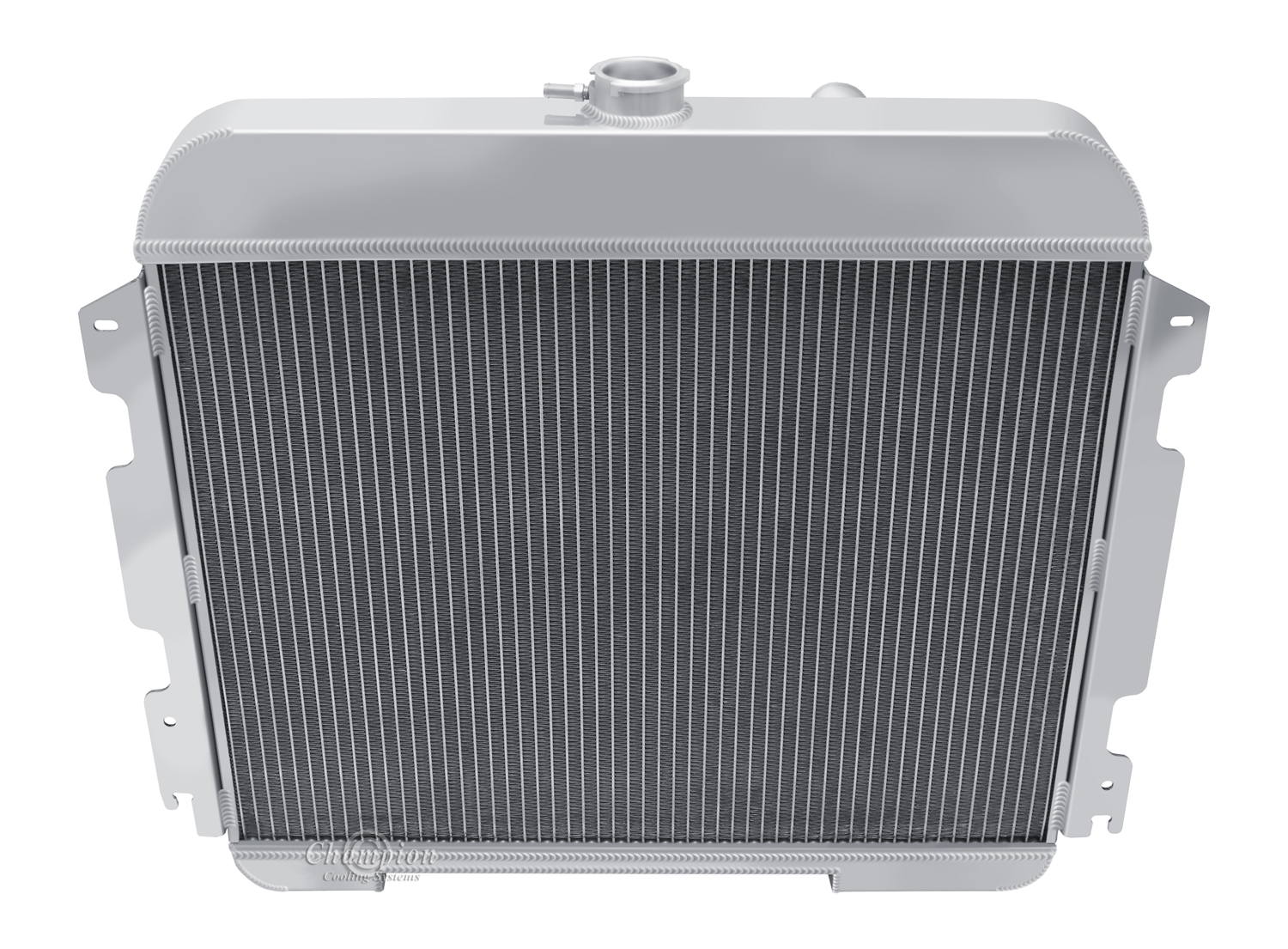

Attributes:
| CORE DIM (H x W): 17 1/2 X 22 |
| OVERALL (H x W): 22 3/4 X 25 1/4 |
| HOSE LOCATIONS: IN: OFF-SET DRIVER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 0 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1967 - 1969 Dodge Dart | 4.5L 273, 5.2L 318ci, 5.6L 340ci V8 | |
| 1967 - 1969 Plymouth Barracuda | 4.5L 273, 5.2L 318ci, 5.6L 340ci V8 | |
| 1967 - 1969 Plymouth Valiant | 4.5L 273, 5.2L 318ci, 5.6L 340ci V8 |
