Attributes:

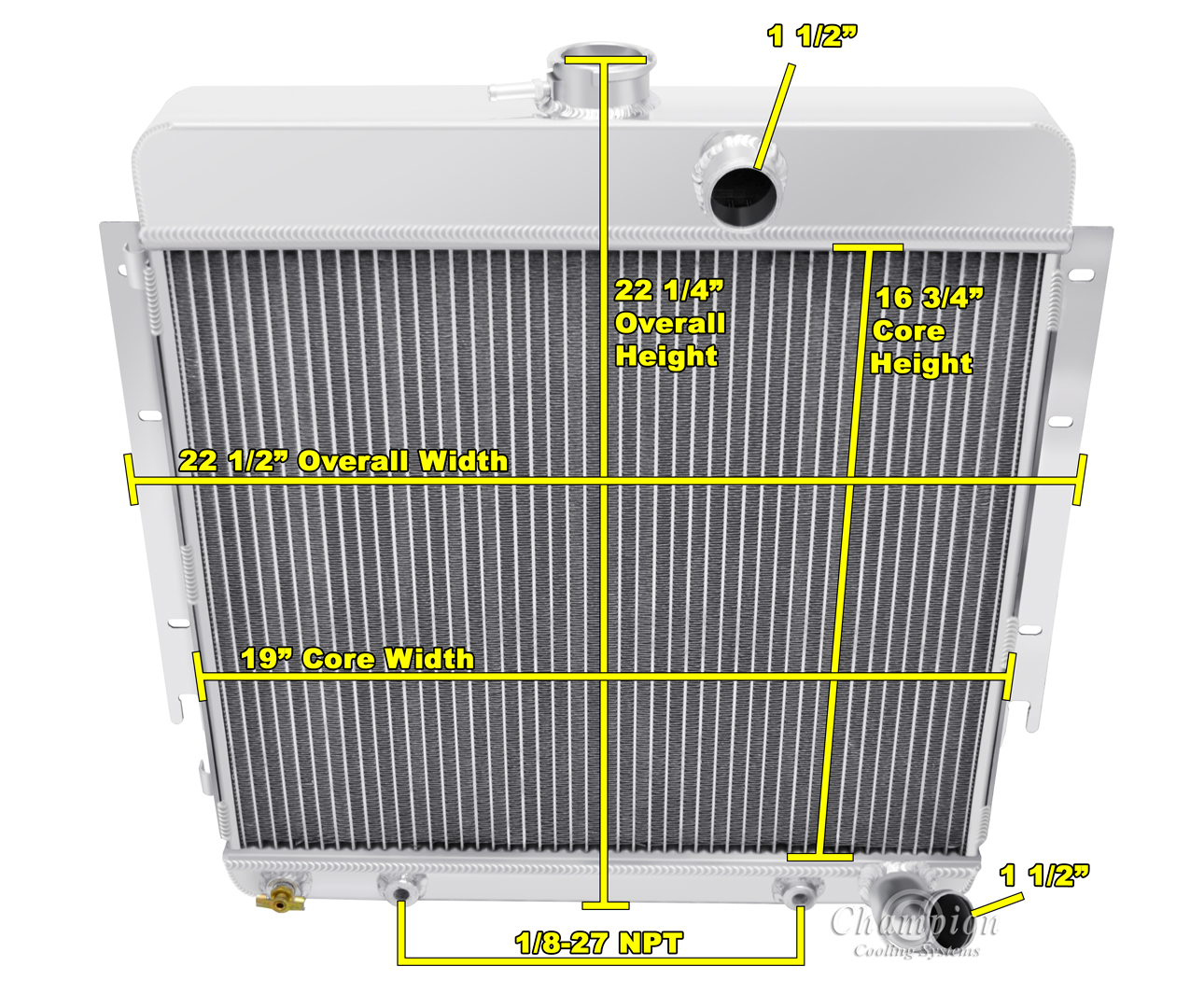

| CORE DIM (H x W): 16 3/4 X 19 |
| OVERALL (H x W): 22 1/4 X 22 1/2 |
| HOSE LOCATIONS: IN: OFF-SET PASSENGER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1964 Dodge Dart | 3.2L 198ci L6, 3.7L 225ci L6 | |
| 1964 Plymouth Barracuda | 3.2L 198ci L6, 3.7L 225ci L6 | |
| 1964 Plymouth Valiant | 3.2L 198ci L6, 3.7L 225ci L6 |
