Lower Tank Tapered to 2 1/4"
Attributes:

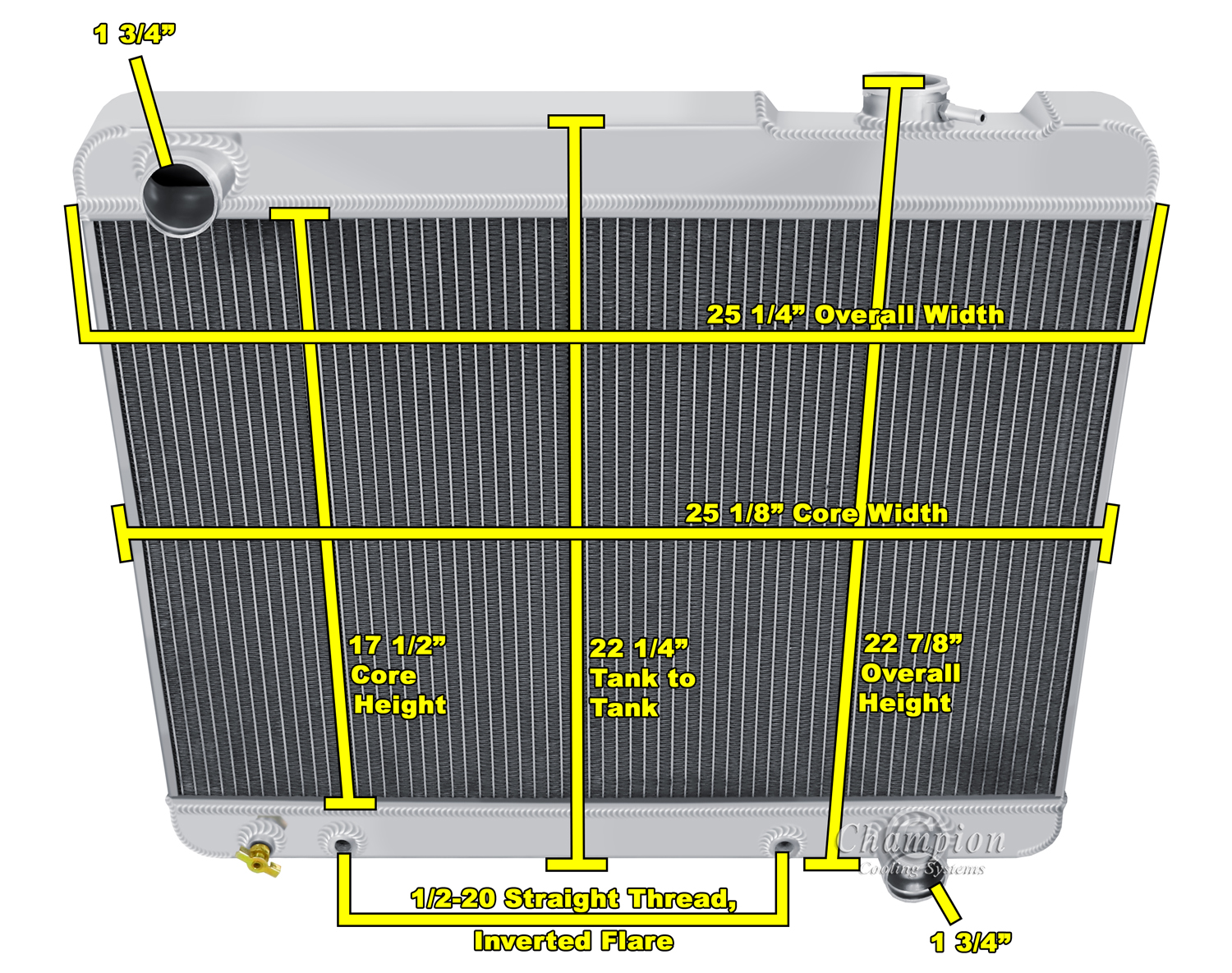

| CORE DIM (H x W): 17 1/2 X 25 1/8 |
| OVERALL (H x W): 22 7/8 X 25 1/4 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 3/4 - OUT: 1 3/4 |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1961-1964 Pontiac Bonneville | 6.4L 389ci V8, 6.9L 421ci V8 | Lower Tank Tapered to 2 1/4" |
| 1961 - 1964 Pontiac Catalina | 6.4L 389ci V8, 6.9L 421ci V8 | Lower Tank Tapered to 2 1/4" |
| 1962-1964 Pontiac Grand Prix | 6.4L 389ci V8, 6.9L 421ci V8 | Lower Tank Tapered to 2 1/4" |
| 1961-1964 Pontiac Star Chief | 6.4L 389ci V8, 6.9L 421ci V8 | Lower Tank Tapered to 2 1/4" |
| 1961 Pontiac Ventura | 6.4L 389ci V8, 6.9L 421ci V8 | Lower Tank Tapered to 2 1/4" |
