IN STOCK (21)

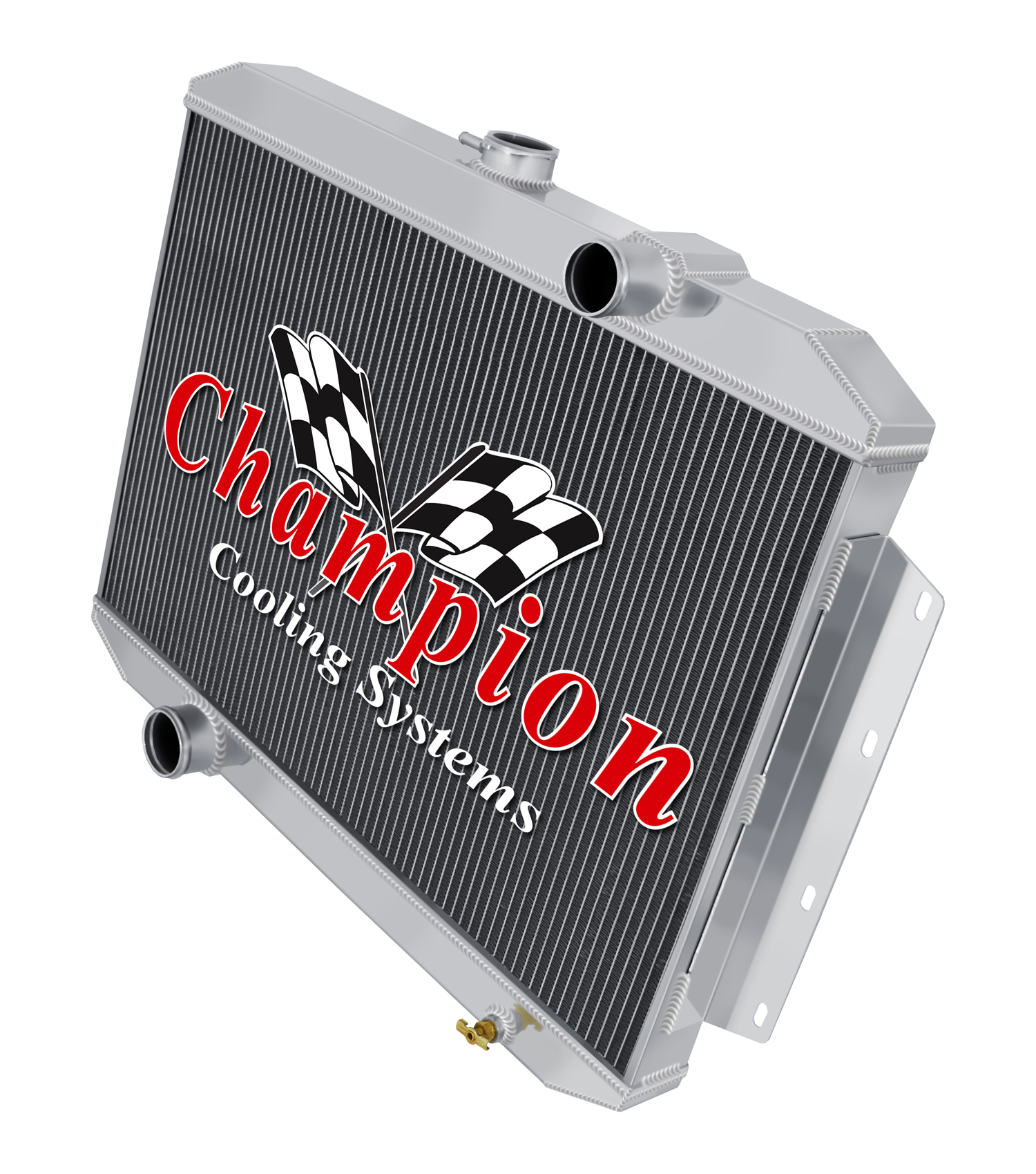

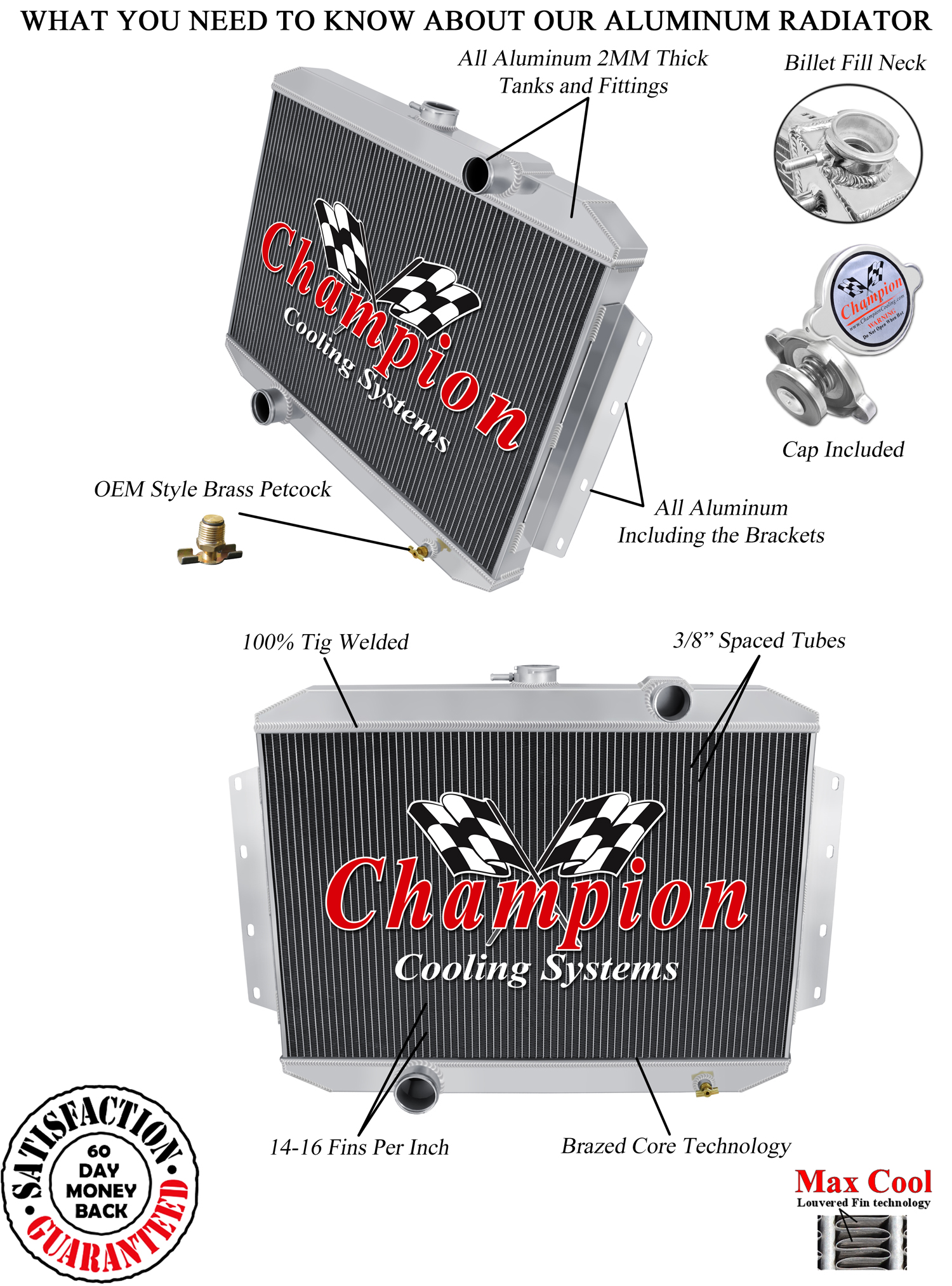

3 Row All Aluminum Radiator

V8 Engine

Available Packages:
CC6168 CC6168 + 2 x CCFK13 CC6168 + CCFK16

Attributes:

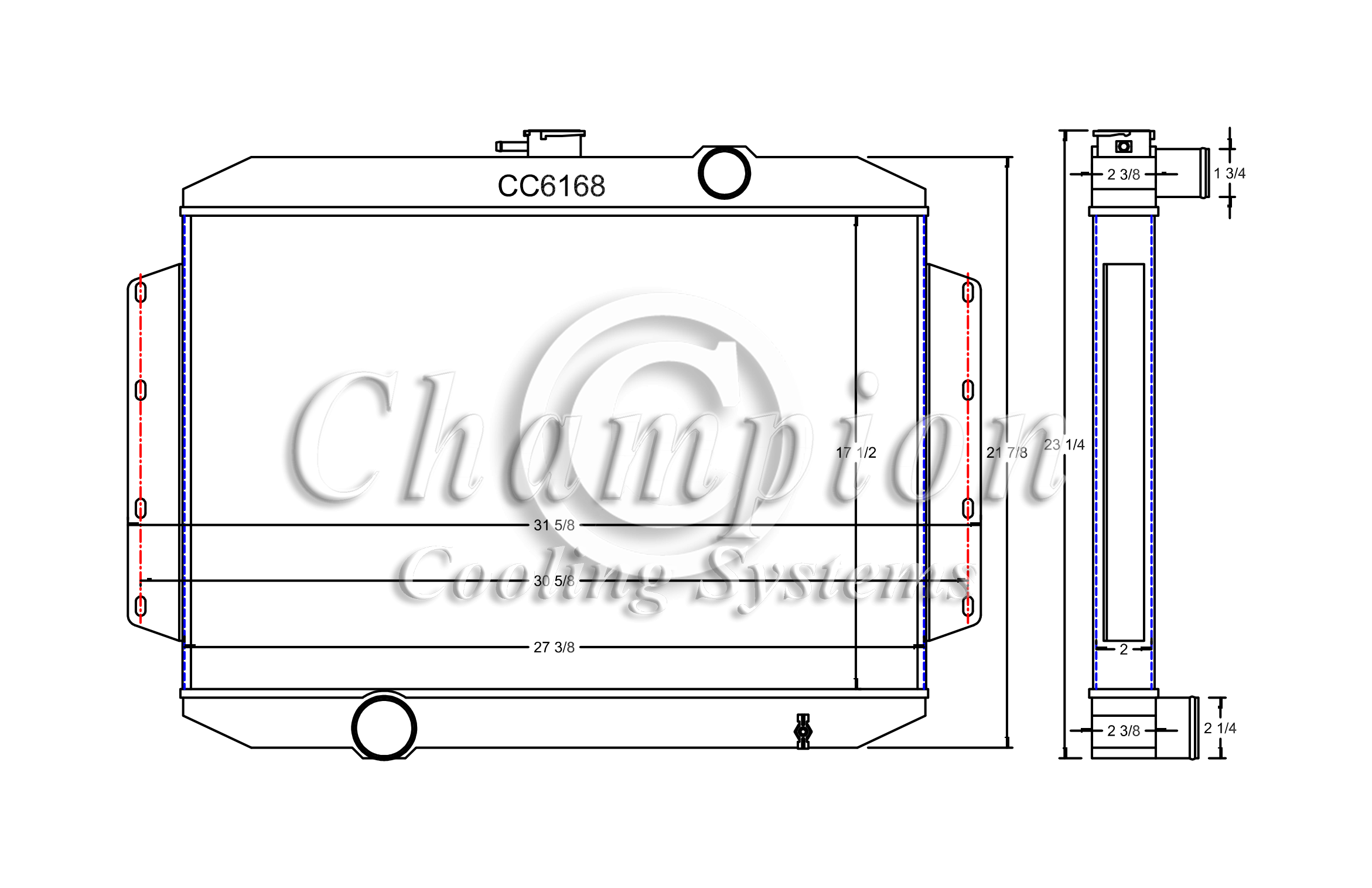

CORE DIM (H x W): 17 1/2 X 27 3/8
OVERALL (H x W): 23 1/4 X 31 5/8
HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER
HOSE FITTINGS: IN: 1 3/4 - OUT: 2 1/4
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3
CORE THICKNESS: 2
TANK WIDTH: 2 3/8

Applications:

Name Engine Notes
1966 International 1000A 4.3L 266ci V8, 5.0L 304ci V8
1967 International 1000B 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1968 International 1000C 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1966 International 1100A 4.3L 266ci V8, 5.0L 304ci V8
1967 International 1100B 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1968 International 1100C 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1966 International 1200A 4.3L 266ci V8, 5.0L 304ci V8
1967 International 1200B 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1968 International 1200C 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1966 International 1300A 4.3L 266ci V8, 5.0L 304ci V8
1967 International 1300B 4.3L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1968 International 1300C 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8, 5.6L 345ci V8
1966 International 1500A 4.4L 266ci V8, 5.0L 304ci V8
1967-1968 International 1500B 4.4L 266ci V8, 5.0L 304ci V8
1968 International 1500C 4.4L 266ci V8, 5.0L 304ci V8
1967 International 908B 4.3L 266ci V8, 5.0L 304ci V8
1968 International 908C 4.3L 266ci V8, 4.4L 266ci V8, 5.0L 304ci V8
1961-1962 International C100 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1963-1964 International C1000 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C102 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C110 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1963-1964 International C1100 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C112 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C120 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1963-1964 International C1200 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C122 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C130 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1963-1964 International C1300 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1961-1962 International C132 2.5L 155ci V8, 4.3L 266ci V8, 5.0L 304ci V8
1965 International D1000 4.3L 266ci V8, 5.0L 304ci V8
1965 International D1100 4.3L 266ci V8, 5.0L 304ci V8
1965 International D1200 4.3L 266ci V8, 5.0L 304ci V8
1965 International D1300 4.3L 266ci V8, 5.0L 304ci V8
1965 International D300 4.4L 266ci V8
