Attributes:

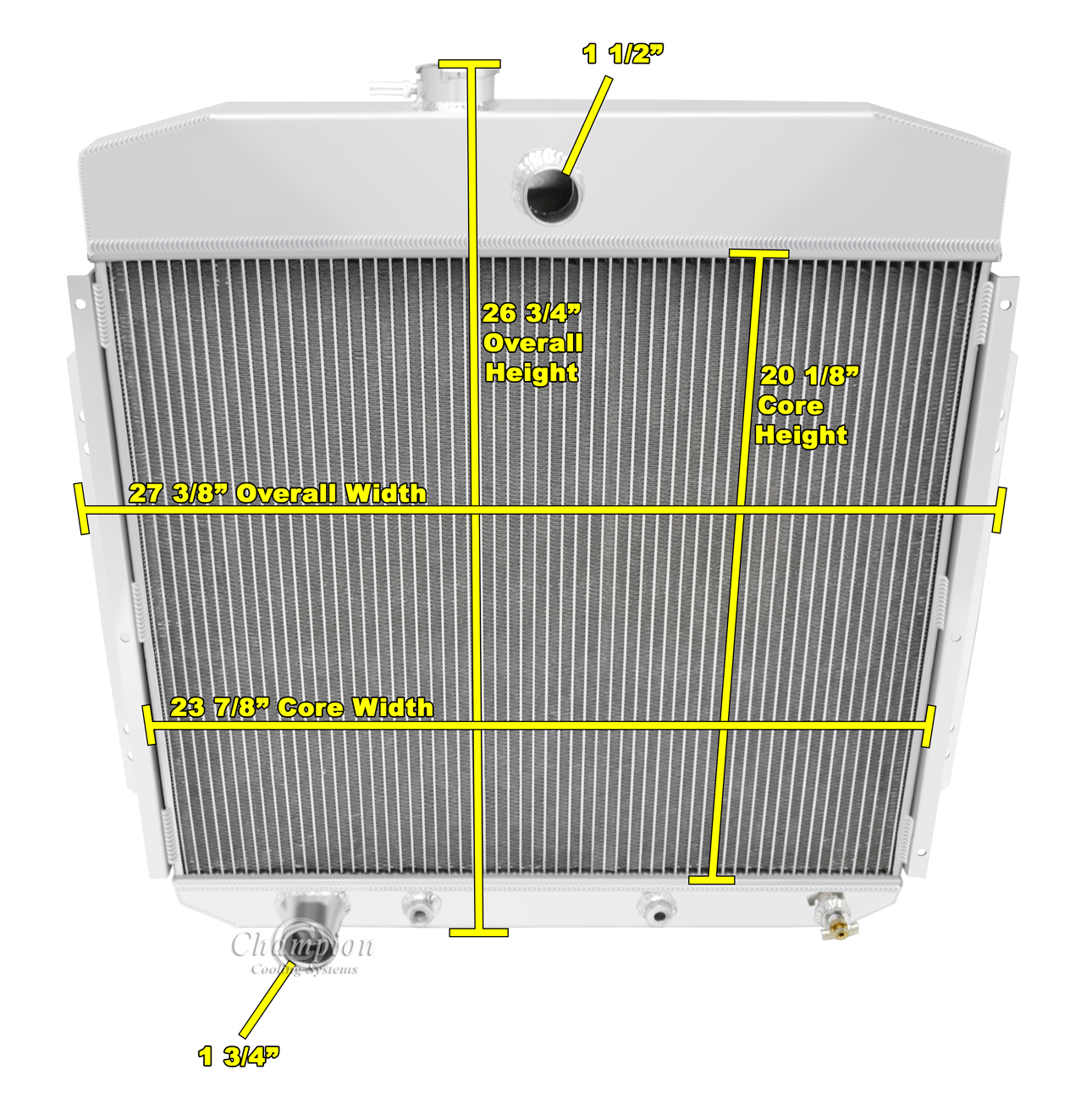

| CORE DIM (H x W): 20 1/8 X 23 7/8 |
| OVERALL (H x W): 26 3/4 X 27 3/8 |
| HOSE LOCATIONS: IN: CENTER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 0 1/8 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1957 - 1960 Ford F-100 | Factory Engine |
