Available Packages:
CC514
CC514
Attributes:

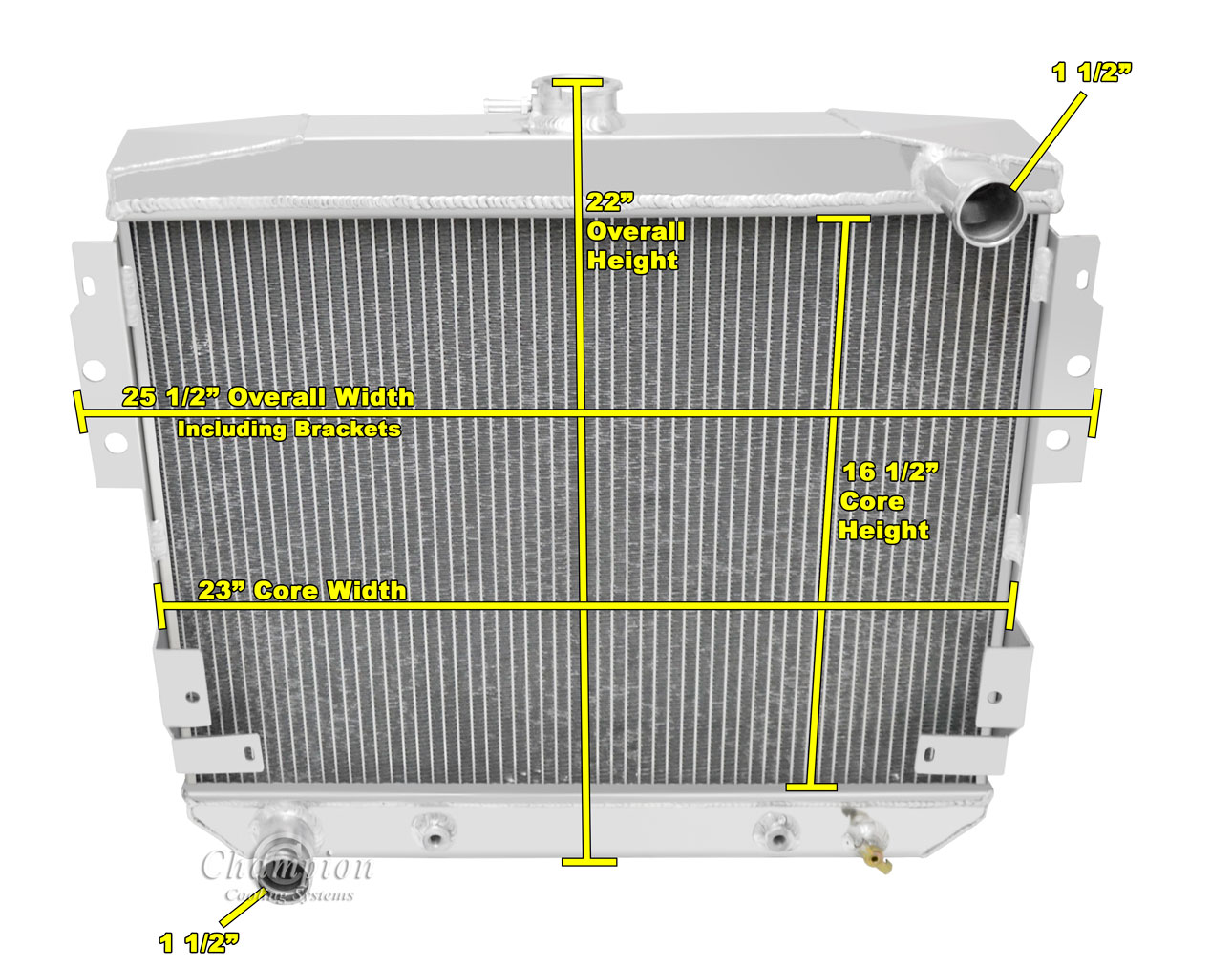

| CORE DIM (H x W): 16 1/2 X 23 |
| OVERALL (H x W): 22 X 25 1/2 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 |
| TANK WIDTH: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1977 - 1978 Ford Mustang II | 5.0L 302ci V8 |
