IN STOCK (27)

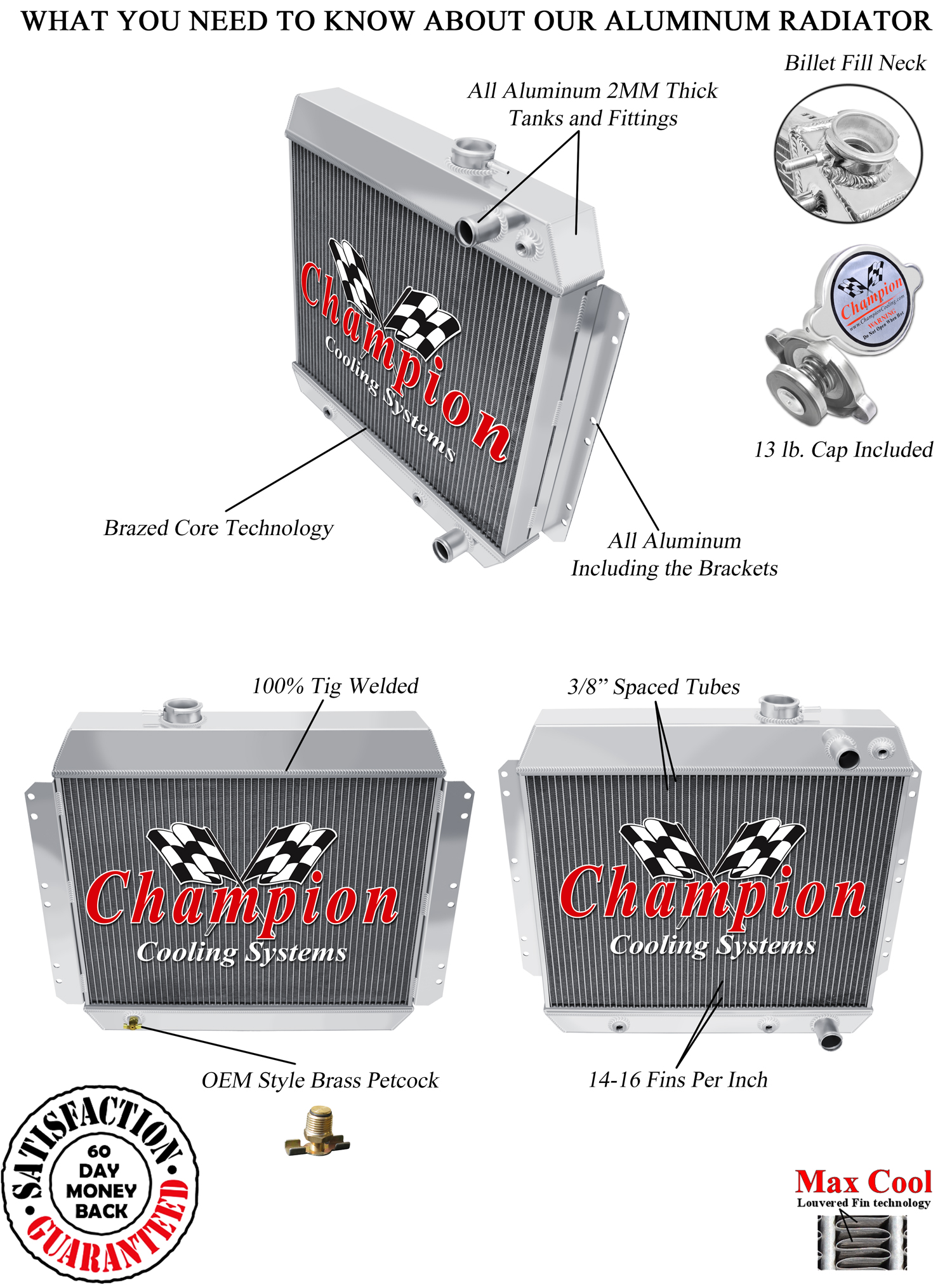

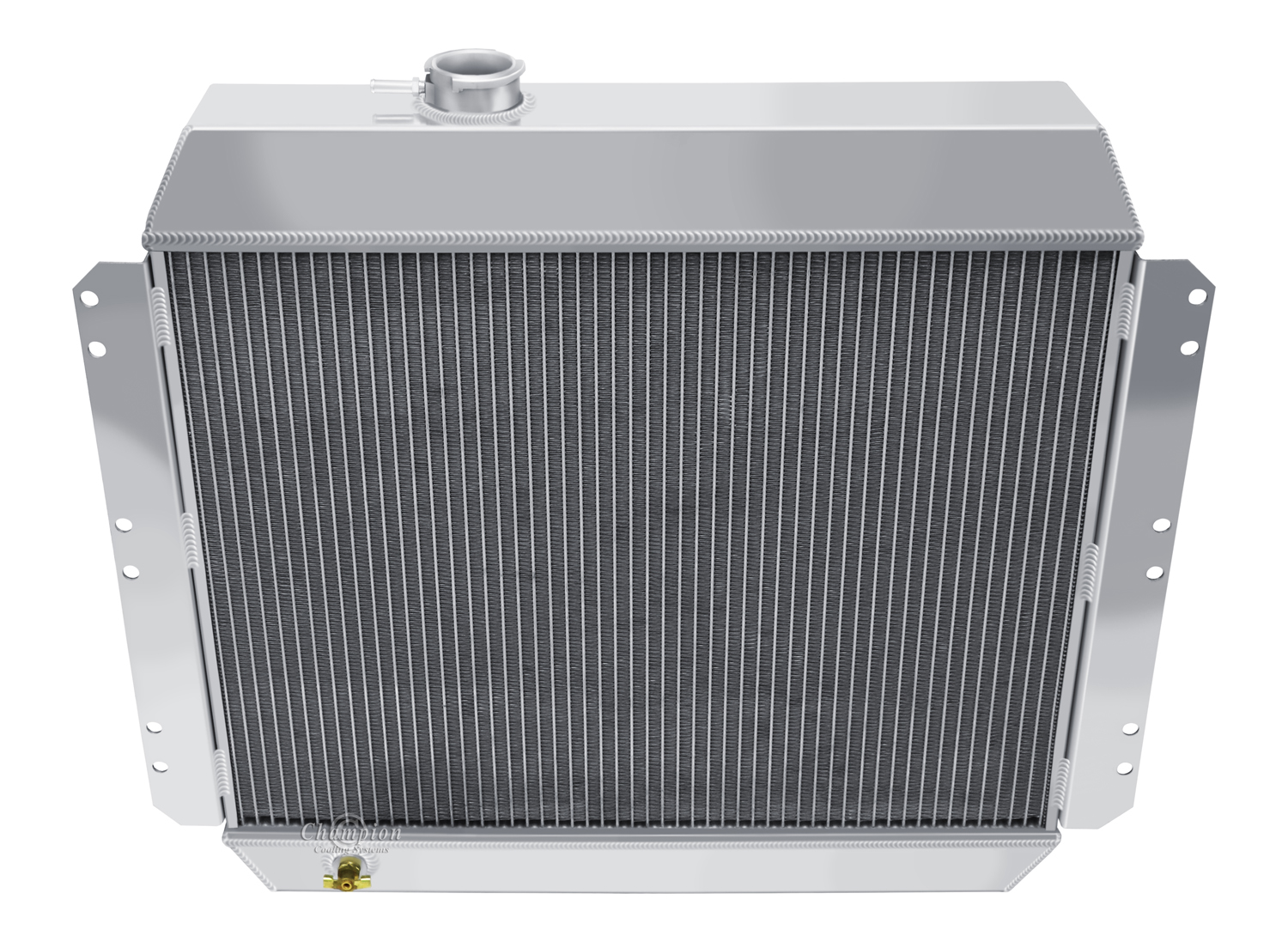

3 Row All Aluminum Radiator

LS Engine Swap

Related Products:
Available Packages:
CC4954B-LS CC4954B-LS + CCFK16 CC4954B-LS + 2 x CCFK10 CC4954B-LS + FS4954 + CCFK16

Attributes:


CORE DIM (H x W): 17 1/8 X 21 5/8
OVERALL (H x W): 23 1/4 X 25 1/4
HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER
HOSE FITTINGS: IN: 1 1/4 - OUT: 1 1/2
TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3
TANK WIDTH: 3

Applications:

Name Engine Notes
1950 - 1954 Chevrolet Bel Air 3.5L 217ci L6, 3.8L 235ci L6, 3.9L 236ci L6 LS Engine Swap
1949 - 1952 Chevrolet Fleetline 3.5L 217ci L6, 3.8L 235ci L6 LS Engine Swap
1953 - 1954 Chevrolet One-Fifty Series 3.5L 217ci L6, 3.8L 235ci L6, 3.9L 236ci L6 LS Engine Swap
1949 - 1952 Chevrolet Styleline Deluxe 3.5L 217ci L6, 3.8L 235ci L6, 3.9L 236ci L6 LS Engine Swap
1949 - 1952 Chevrolet Styleline Special 3.5L 217ci L6, 3.8L 235ci L6 LS Engine Swap
1953 - 1954 Chevrolet Two-Ten Series 3.8L 235ci L6, 3.9L 236ci L6 LS Engine Swap
