Does NOT fit L6 engine, V8 only
Attributes:

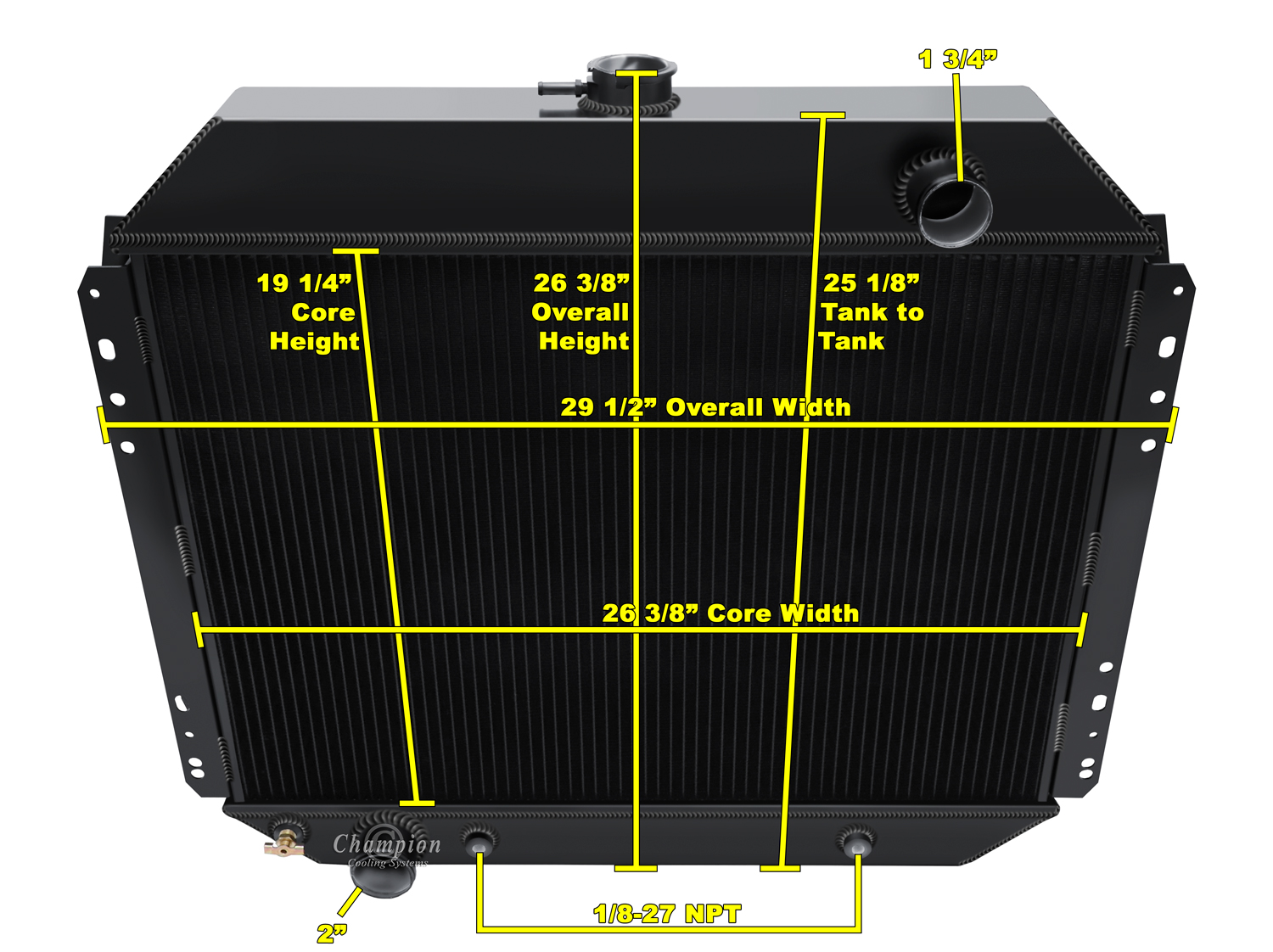

| CORE DIM (H x W): 19 1/4 X 26 3/8 |
| OVERALL (H x W): 26 3/8 X 29 1/2 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 3/4 - OUT: 2 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/2 |
| TANK WIDTH: 2 3/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1978 - 1979 Ford Bronco | 5.8L 351ci V8, 6.6L 400ci V8 | |
| 1968 - 1979 Ford F-Series | 5.0L 302ci V8, 5.8L 351ci V8, 5.9L 360ci V8, 6.4L 390ci V8, 6.6L 400ci V8 | |
| 1968 - 1979 Ford Truck | 5.0L 302ci V8, 5.8L 351ci V8, 5.9L 360ci V8, 6.4L 390ci V8, 6.6L 400ci V8 |
