IN STOCK (16)

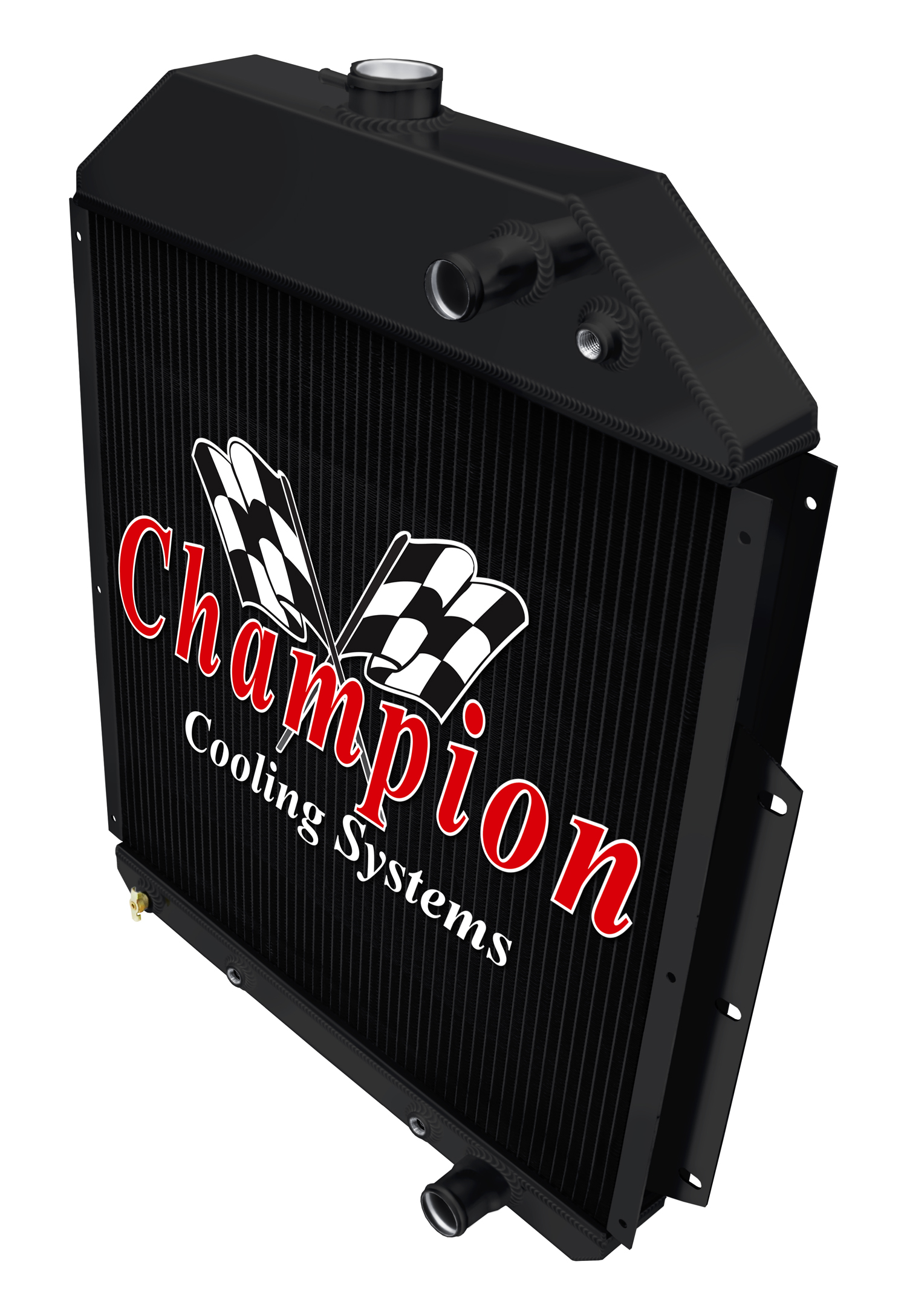

3 Row Black Finish All Aluminum Radiator

LS Engine Swap

Related Products:
Available Packages:
CC4252-LS-BLK

Attributes:

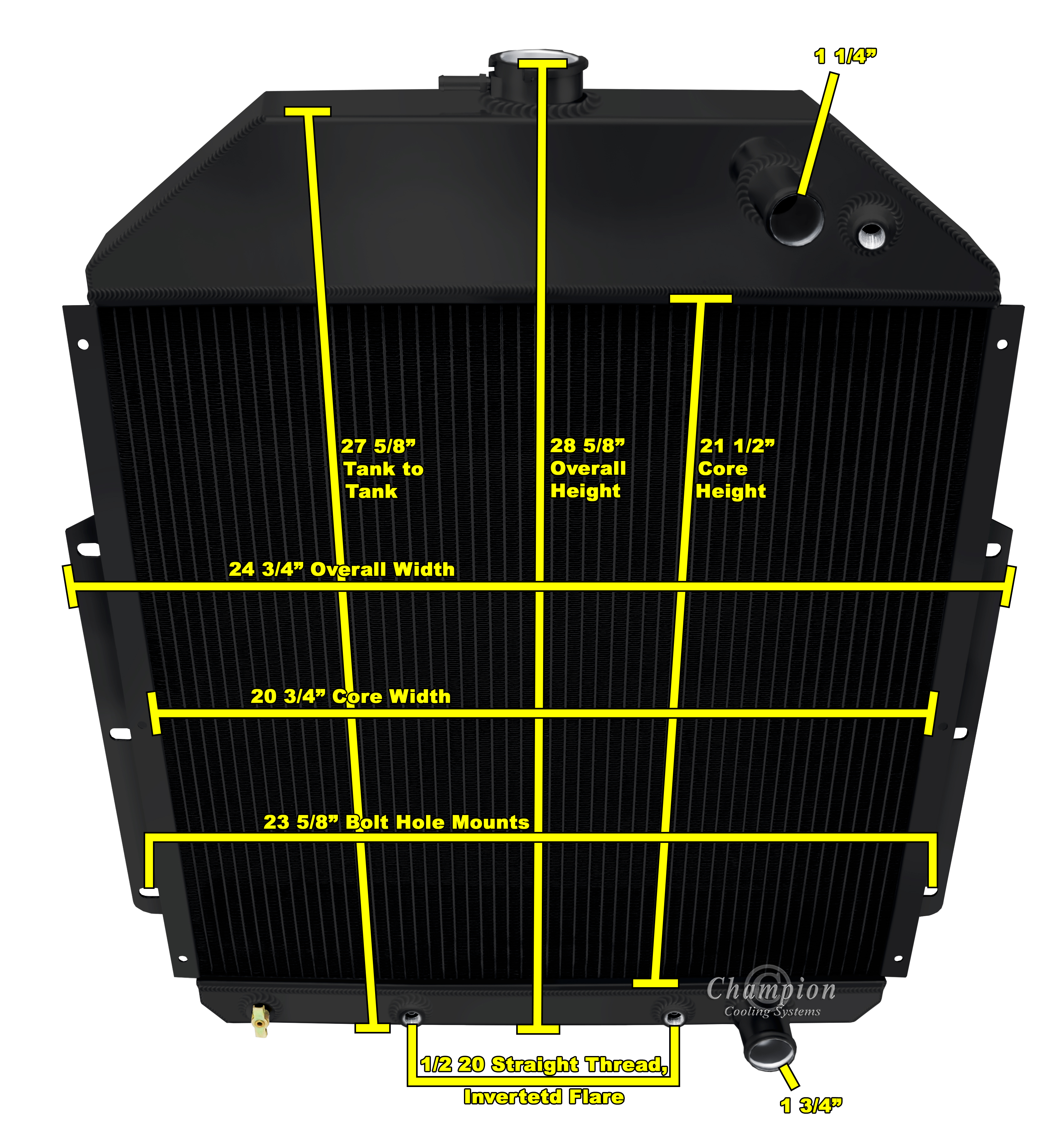

CORE DIM (H x W): 21 1/2 X 20 3/4
OVERALL (H x W): 27 5/8 X 24 3/4
HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER
HOSE FITTINGS: IN: 1 1/4 - OUT: 1 1/2
TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3
CORE THICKNESS: 2 1/4
TANK WIDTH: 2 5/8

Applications:

Name Engine Notes
1942 - 1947 Ford 1 Ton Pickup 2.0L 120ci L4, 3.6L 221ci V8, 3.7L 226ci L6, 3.9L 239ci V8 LS Engine Swap
1942 - 1947 Ford 1/2 Ton Pickup 2.0L 120ci L4, 3.6L 221ci V8, 3.7L 226ci L6, 3.9L 239ci V8 LS Engine Swap
1942 - 1947 Ford 3/4 Ton Pickup 2.0L 120ci L4, 3.6L 221ci V8, 3.7L 226ci L6, 3.9L 239ci V8 LS Engine Swap
1948 - 1952 Ford F1 3.7L 226ci L6, 3.9L 239ci V8, 4.2L 255ci V8 LS Engine Swap
1948 - 1952 Ford F2 3.7L 226ci L6, 3.9L 239ci V8, 4.2L 255ci V8 LS Engine Swap
1948 - 1952 Ford F3 3.7L 226ci L6, 3.9L 239ci V8, 4.2L 255ci V8 LS Engine Swap
