IN STOCK (70)

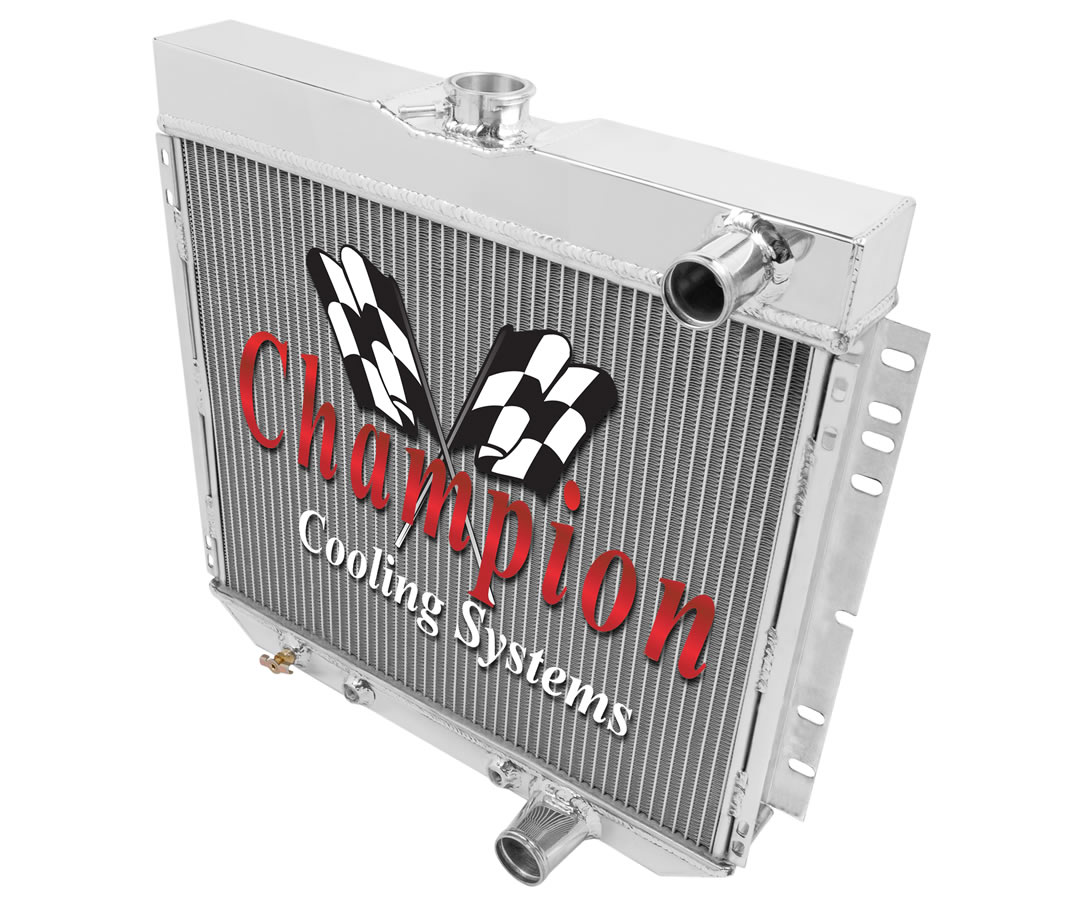

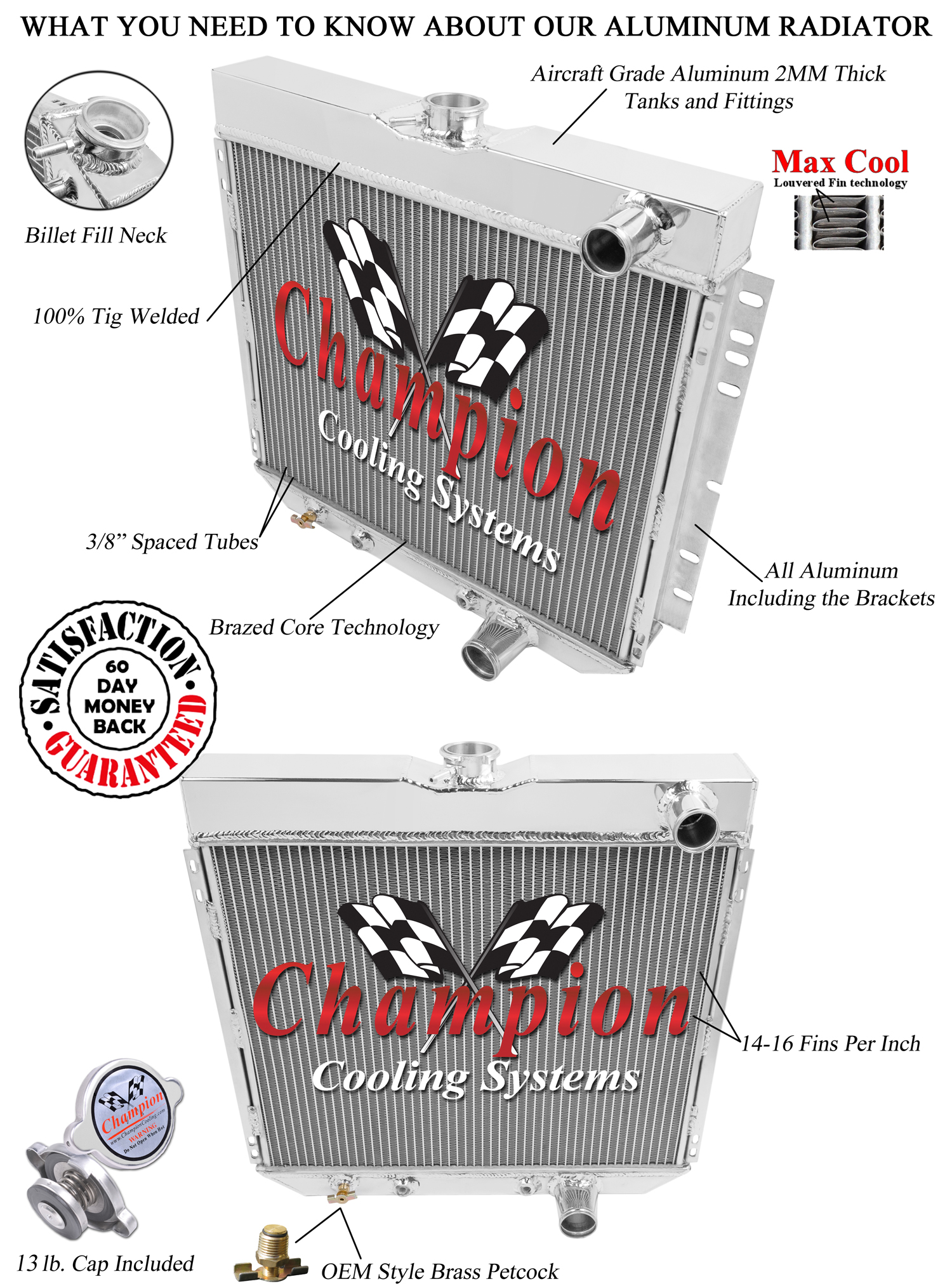

3 Row All Aluminum Radiator
20" Core
See Part#339 if your application has the Outlet on the drivers side. See Part#338 if you need a 24" Wide Core with Inlet and Outlet on passenger side.
Verify core size(20" Wide Core) and hose configuration(Inlet & Outlet on passenger side) for your application before purchasing.
Attributes:
| CORE DIM (H x W): 16 3/8 X 20 1/4 |
| OVERALL (H x W): 21 1/8 X 22 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/2 |
| TANK WIDTH: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1964 - 1968 Ford Country Sedan | 2.8L 170ci L6, 3.3L 200ci L6, 3.6L 223ci L6, 3.9L 240ci L6, 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1964 - 1968 Ford Country Squire | 2.8L 170ci L6, 3.3L 200ci L6, 3.6L 223ci L6, 3.9L 240ci L6, 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1963 - 1969 Ford Fairlane | 2.8L 170ci L6, 3.3L 200ci L6, 3.6L 221ci V8, 4.1L 250ci L6, 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1966 - 1970 Ford Falcon | 2.8L 170ci L6, 3.3L 200ci L6, 4.1L 250ci L6, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 7.0L 429ci V8 | |
| 1964 - 1967 Ford Galaxie | 3.6L 223ci L6, 3.9L 240ci L6, 4.3L 260ci V8, 4.7L 289ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1967 - 1968 Ford LTD | 3.9L 240ci L6, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1967 - 1970 Ford Mustang | 3.3L 200ci L6, 4.1L 250ci L6, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8, 7.0L 429ci V8 | |
| 1968 - 1969 Ford Torino | 3.3L 200ci L6, 4.1L 250ci L6, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1967 - 1968 Mercury Cougar | 4.7L 289ci V8, 5.0L 302ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8 |
