IN STOCK (12)

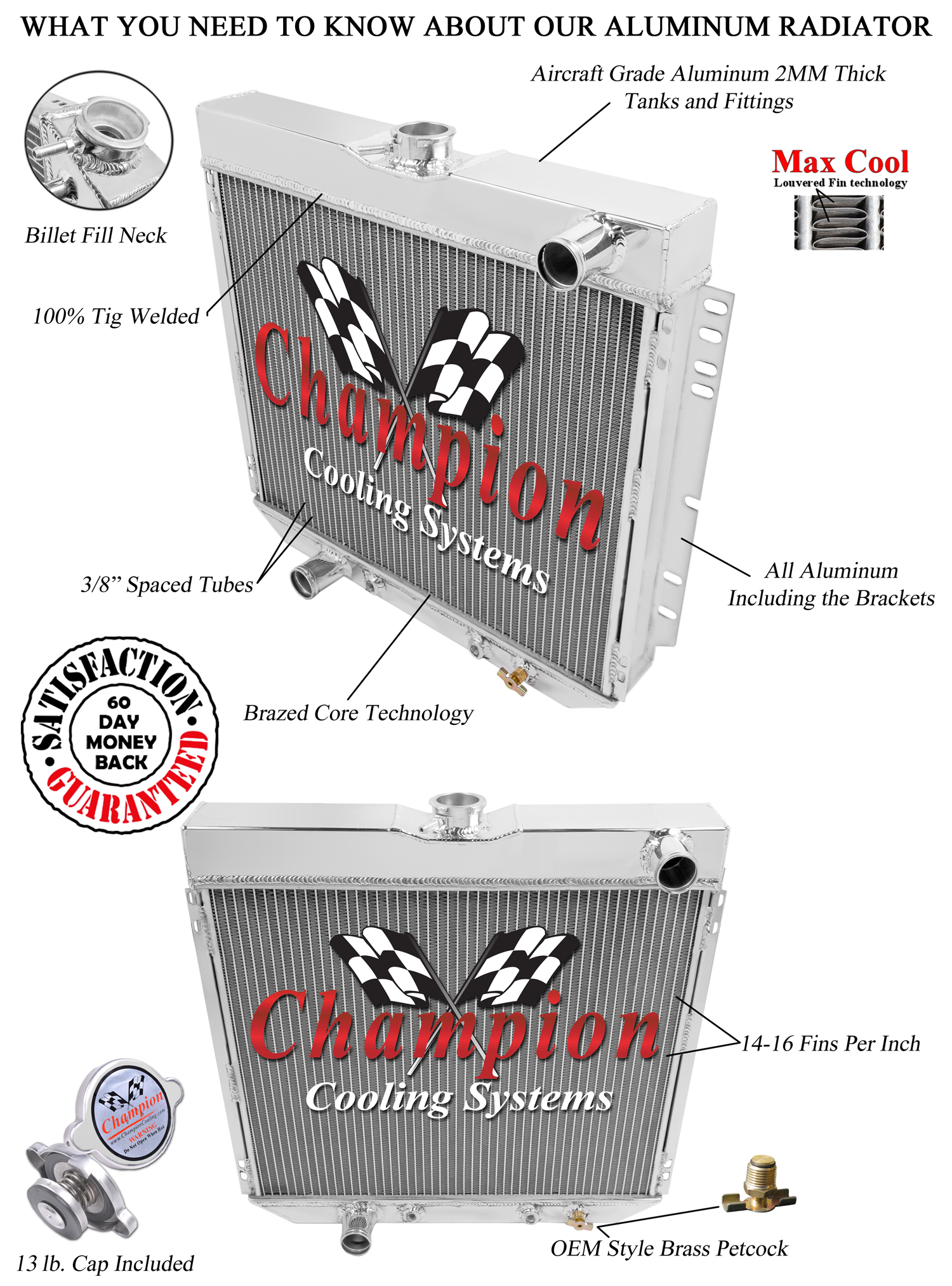

3 Row All Aluminum Radiator

20" Core

Verify hose configuration and core size for your application before purchasing.
Related Products:
Available Packages:
CC339B CC339B + CCFK16 CC339B + FS339/340 + CCFK16

Attributes:


CORE DIM (H x W): 16 3/8 X 20 1/4
OVERALL (H x W): 21 1/8 X 22 1/8
HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2
FILL NECK: YES
TRANS COOLER: 1/8-27NPT
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3 ROW
CORE THICKNESS: 2 1/2
TANK WIDTH: 3

Applications:

Name Engine Notes
1963 - 1969 Ford Fairlane 2.8L 170ci L6, 3.3L 200ci L6, 3.6L 221ci V8, 4.1L 250ci L6, 4.3L 260ci V8, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 5.8L 352ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
1966 - 1970 Ford Falcon 2.8L 170ci L6, 3.3L 200ci L6, 4.1L 250ci L6, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 7.0L 429ci V8
1970 - 1977 Ford Maverick 2.8L 170ci L6, 3.3L 200ci L6, 4.1L 250ci L6, 5.0L 302ci V8
1967 - 1970 Ford Mustang 3.3L 200ci L6, 4.1L 250ci L6, 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8, 7.0L 429ci V8
1968 - 1969 Ford Torino 3.3L 200ci L6, 4.1L 250ci L6, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
1966 - 1968 Mercury Comet 2.8L 170ci L6, 3.3L 200ci L6, 4.7L 289ci V8, 5.0L 302ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
1971 - 1973 Mercury Comet 2.8L 170ci L6, 3.3L 200ci L6, 4.1L 250ci L6, 5.0L 302ci V8
1967 - 1970 Mercury Cougar 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8, 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8, 7.0L 429ci V8
