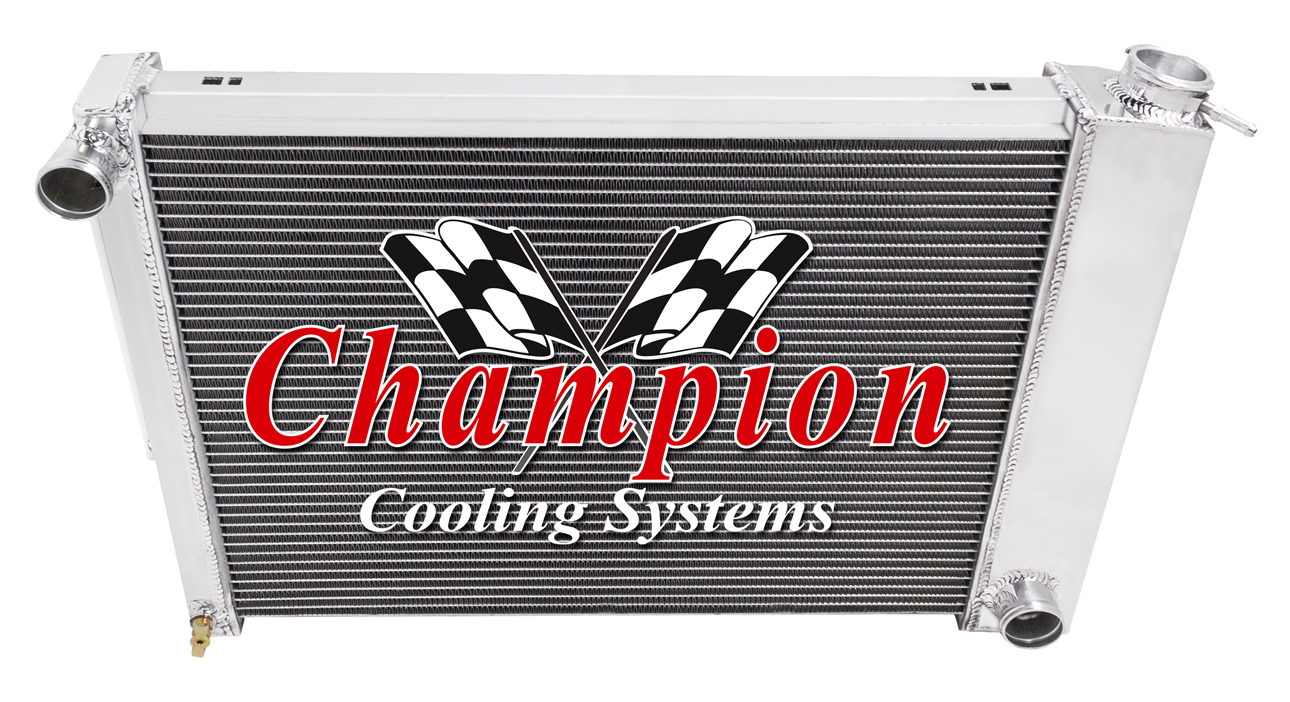

3 Row All Aluminum Radiator
Small Block Engine (Manual Transmission)
This radiator can be used as a crossflow for all 281 and 289 applications but will not fit the factory shroud.
Attributes:
| CORE DIM (H x W): 17 X 20 3/4 |
| OVERALL (H x W): 19 1/4 X 28 3/4 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| MOUNTING TYPE: FLANGES |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/2 |
| TANK WIDTH: 2 3/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1967 - 1969 Chevrolet Camaro | 4.1L 250ci L6, 5.0L 305ci V8, 5.0L 307ci V8, 5.3L 327ci V8, 5.7L 350ci V8 | Designed for manual transmissions or with the use of an external transmission cooler |
| 1967 - 1969 Pontiac Firebird Trans Am | 4.1L 250ci L6, 5.0L 305ci V8, 5.0L 307ci V8, 5.3L 327ci V8, 5.7L 350ci V8 | Designed for manual transmissions or with the use of an external transmission cooler |
