IN STOCK (11)

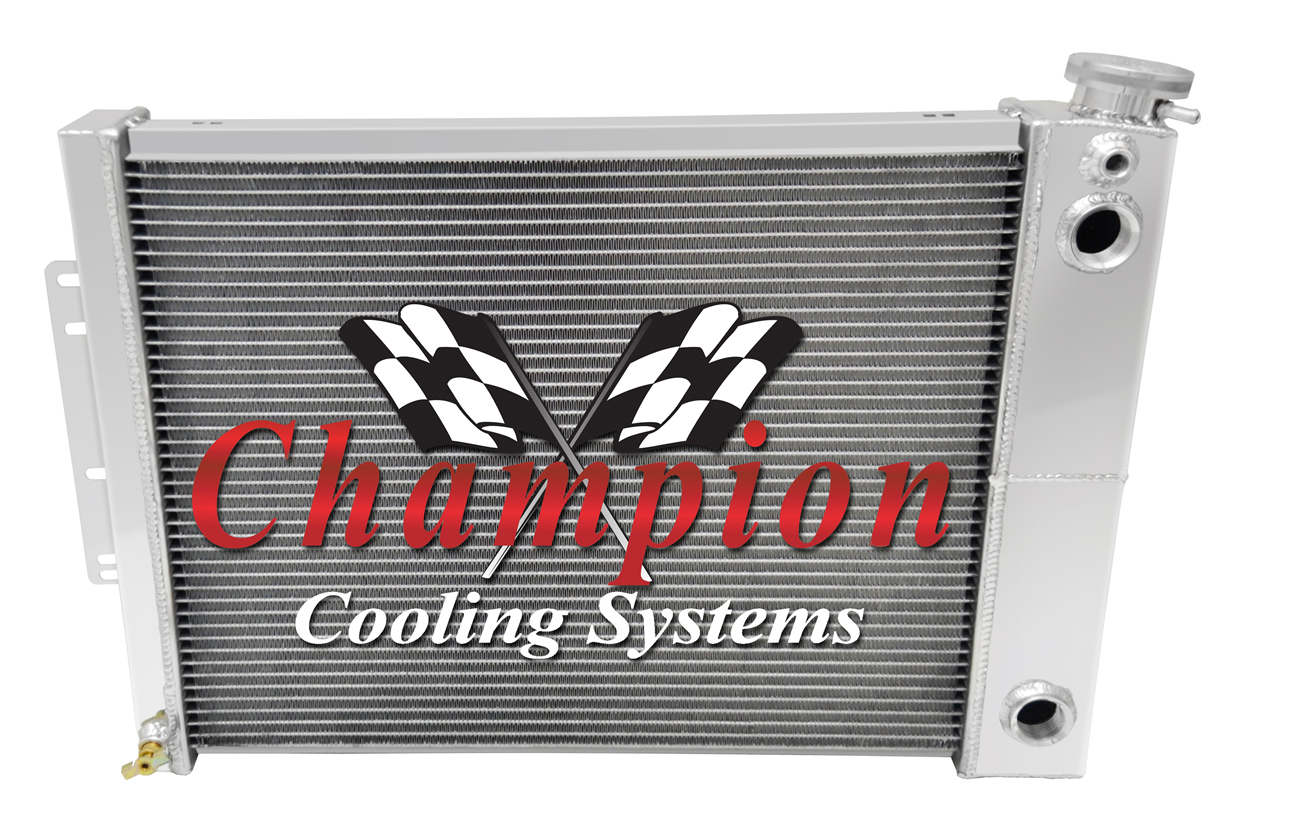

3 Row Dual Pass All Aluminum Radiator
Small Block LS Swap
This radiator can be used as a crossflow for all 281 and 289 applications but will not fit the factory shroud.
Attributes:
| CORE DIM (H x W): 17 X 20 3/4 |
| OVERALL (H x W): 19 1/4 X 28 3/4 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 16ORB(FEMALE) - OUT: 16ORB(FEMALE) |
| FILL NECK: YES |
| MOUNTING TYPE: FLANGES |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/2 |
| TANK WIDTH: 2 3/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1967 - 1969 Chevrolet Camaro | Small Block LS Swap, Will not mount factory shroud | |
| 1967 - 1969 Pontiac Firebird Trans Am | Small Block LS Swap, Will not mount factory shroud |
