Attributes:

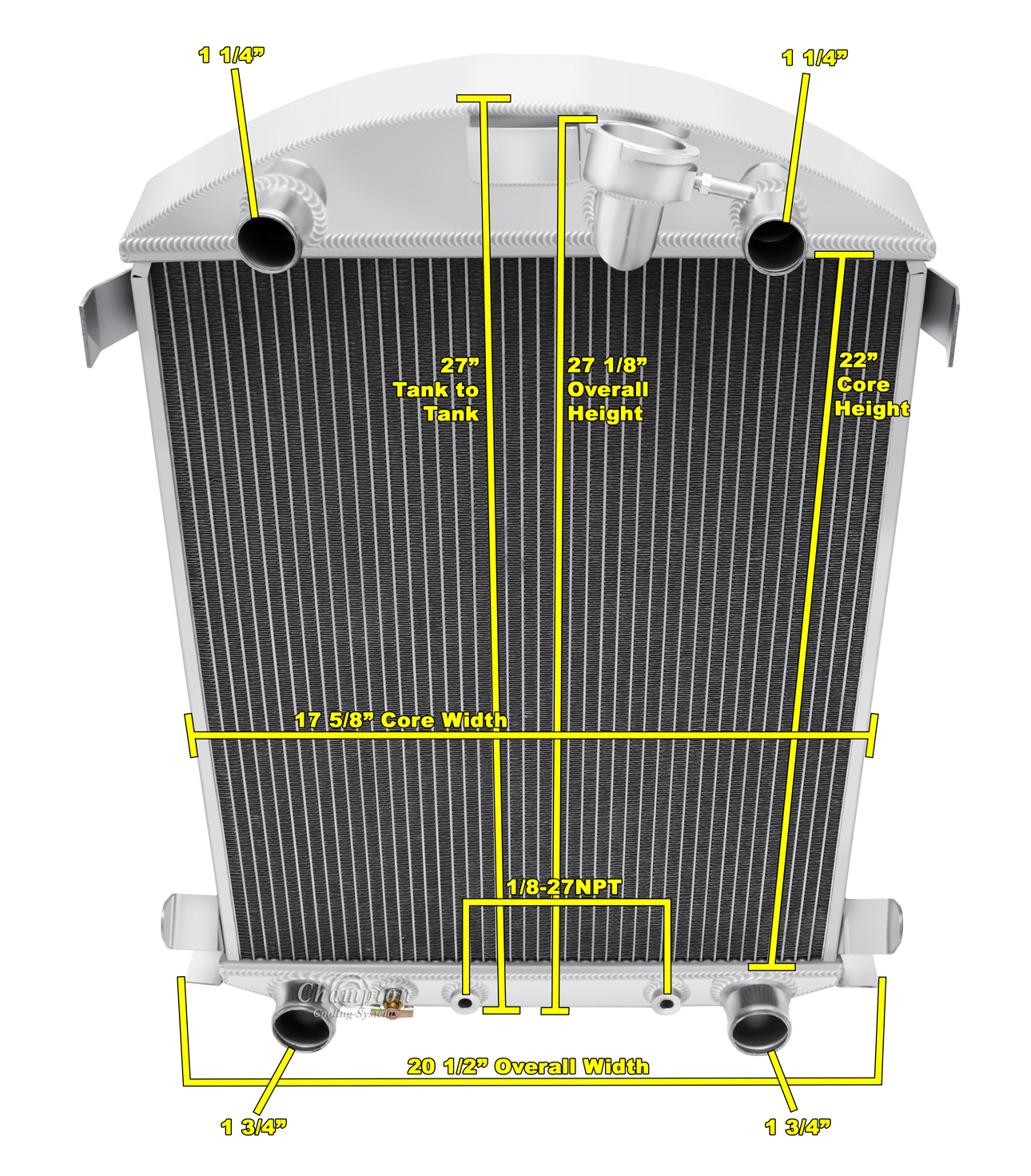

| CORE DIM (H x W): 22 X 17 5/8 |
| OVERALL (H x W): 27 1/8 X 20 1/2 |
| HOSE LOCATIONS: IN: DUAL - DRIVER & PASS - OUT: DUAL - DRIVER & PASS |
| HOSE FITTINGS: IN: 1 1/4 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 0 1/8 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1930 - 1931 Ford Model A | 3.3L 200ci L4 | Flathead Conversion |
