IN STOCK (7)

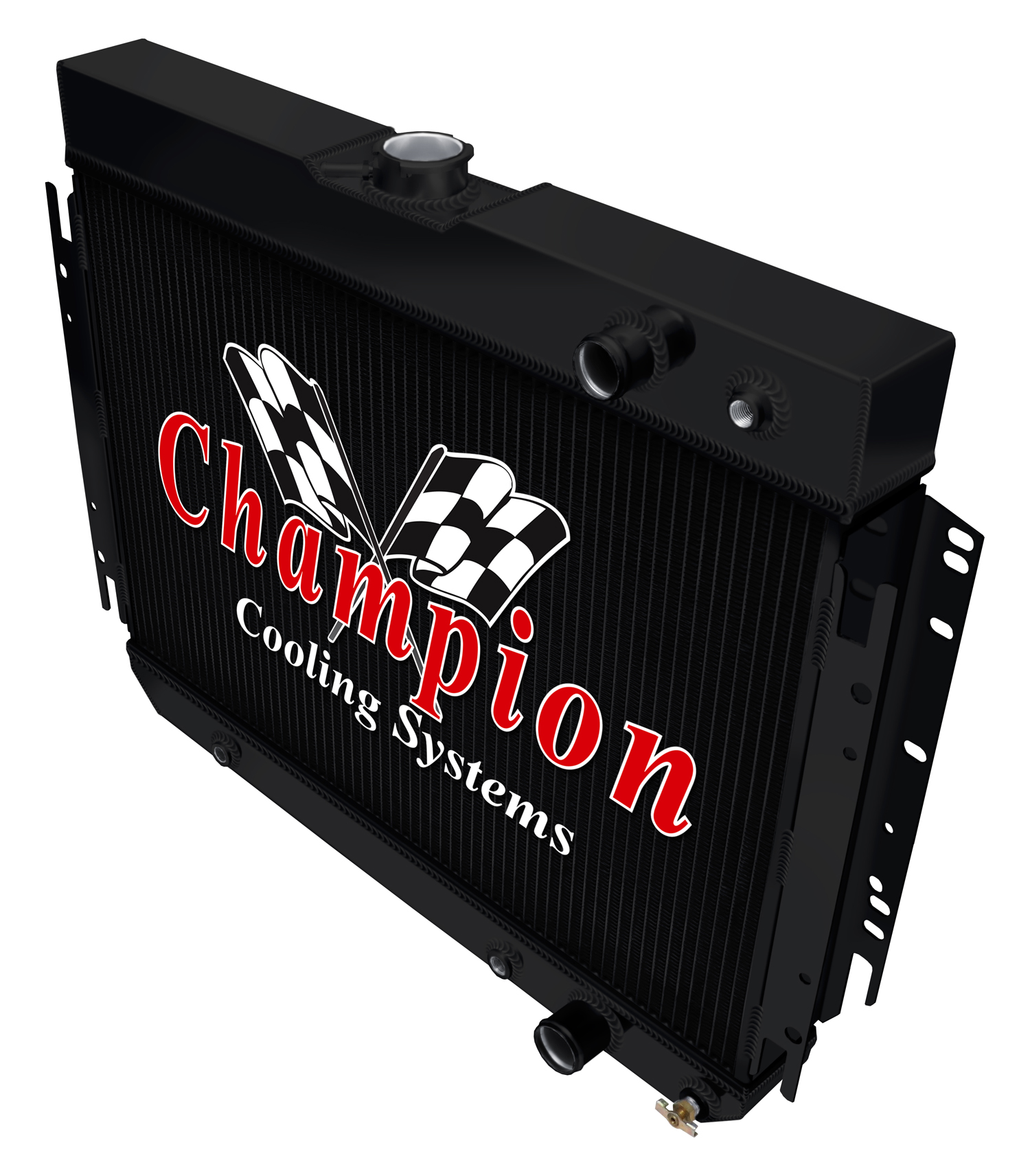

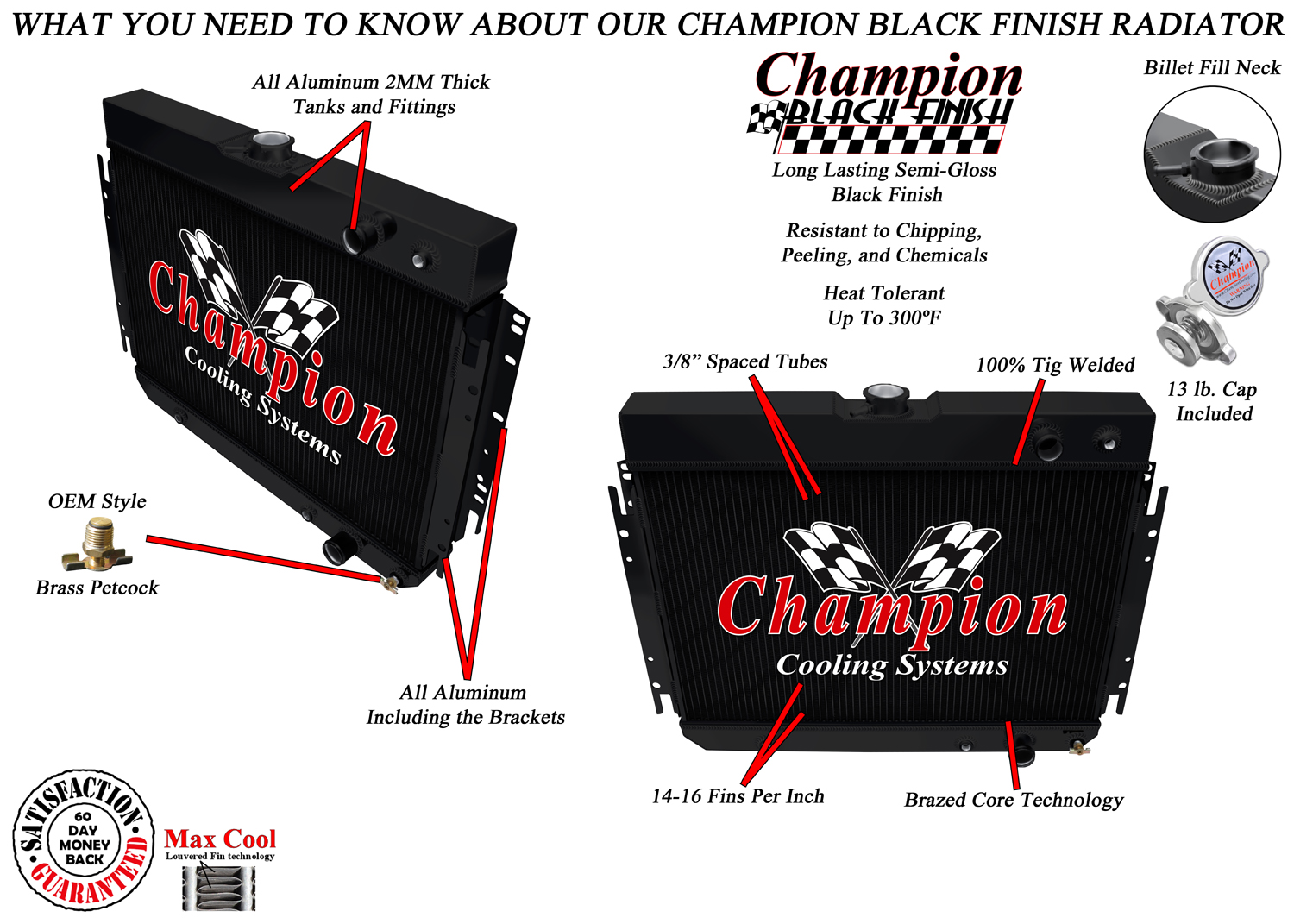

3 Row Black Finish All Aluminum Radiator

LS Engine Swap

Related Products:
Available Packages:
CC289B-LS-BLK CC289B-LS-BLK + FS289-BLK + 2 x CCFK12

Attributes:


CORE DIM (H x W): 16 X 24 3/4
OVERALL (H x W): 21 7/8 X 27 7/8
HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER
HOSE FITTINGS: IN: 1 1/4 - OUT: 1 1/2
TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3
TANK WIDTH: 2 3/4

Applications:

Name Engine Notes
1963 - 1968 Chevrolet Bel Air 3.8L 230ci L6, 4.1L 250ci L6, 4.6L 283ci V8 LS Engine Swap
1963 - 1968 Chevrolet Biscayne 3.8L 230ci L6, 4.1L 250ci L6 LS Engine Swap
1966 - 1968 Chevrolet Caprice 4.1L 250ci L6, 4.6L 283ci V8, 5.3L 327ci V8, 5.4L 327ci V8 LS Engine Swap
1964 - 1967 Chevrolet Chevelle 4.6L 283ci V8, 6.5L 396ci V8 LS Engine Swap
1964 - 1967 Chevrolet El Camino 3.2L 194ci L6, 3.8L 230ci L6, 4.1L 250ci L6, 4.6L 283ci V8, 5.3L 327ci V8, 6.5L 396ci V8 LS Engine Swap
1963 - 1968 Chevrolet Impala 3.8L 230ci L6, 4.1L 250ci L6, 4.6L 283ci V8, 5.3L 327ci V8, 5.4L 327ci V8 LS Engine Swap
