IN STOCK (8)

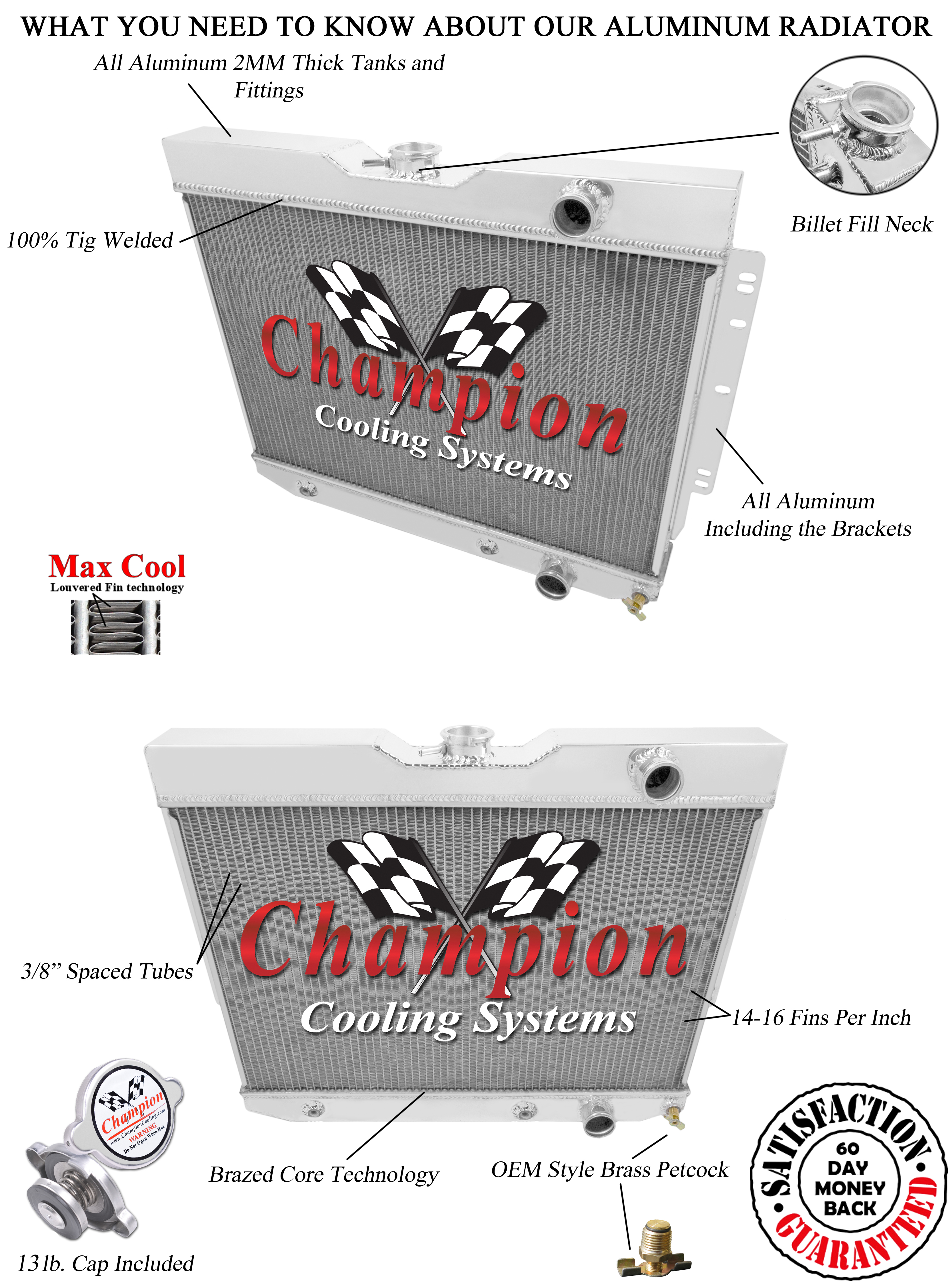

3 Row All Aluminum Radiator
24" Core
This radiator will fit all #289 applications but will not mount factory shroud.
Attributes:

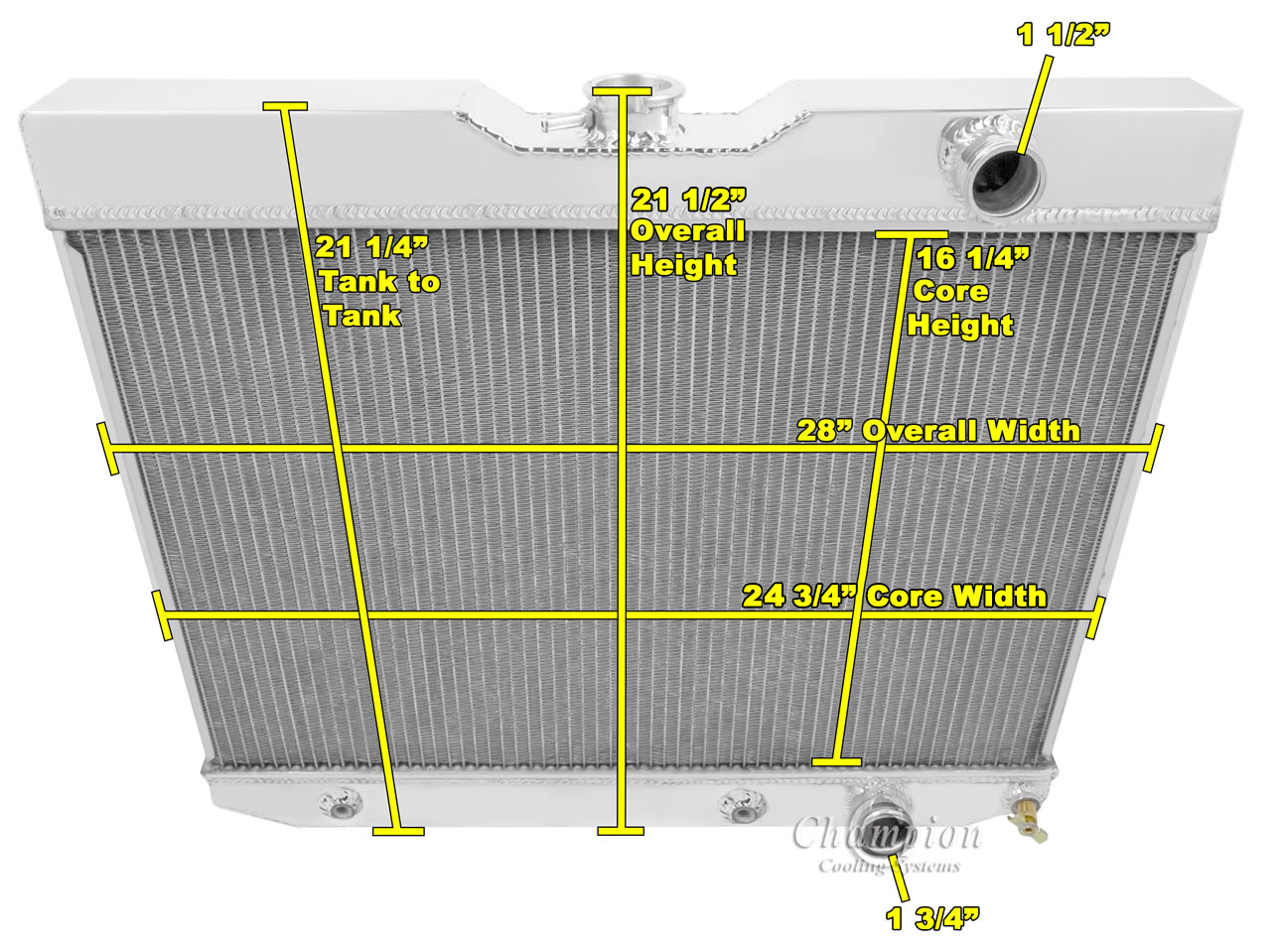

| CORE DIM (H x W): 16 1/4 X 24 3/4 |
| OVERALL (H x W): 21 1/2 X 28 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: FLANGES |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/2 |
| TANK WIDTH: 2 3/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1963 - 1965 Chevrolet Bel Air | ||
| 1960 - 1965 Chevrolet Biscayne | 3.9L 236ci L6, 4.6L 283ci V8, 6.7L 409ci V8 | |
| 1964 - 1965 Chevrolet Chevelle | ||
| 1959 - 1960, 1964 - 1965 Chevrolet El Camino | ||
| 1959 - 1963 Chevrolet Impala | 3.9L 236ci L6, 4.6L 283ci V8, 5.3L 327ci V8 | |
| 1959 - 1962 Chevrolet Kingswood | ||
| 1959 - 1960, 1964 - 1965 GMC Caballero |
