IN STOCK (6)

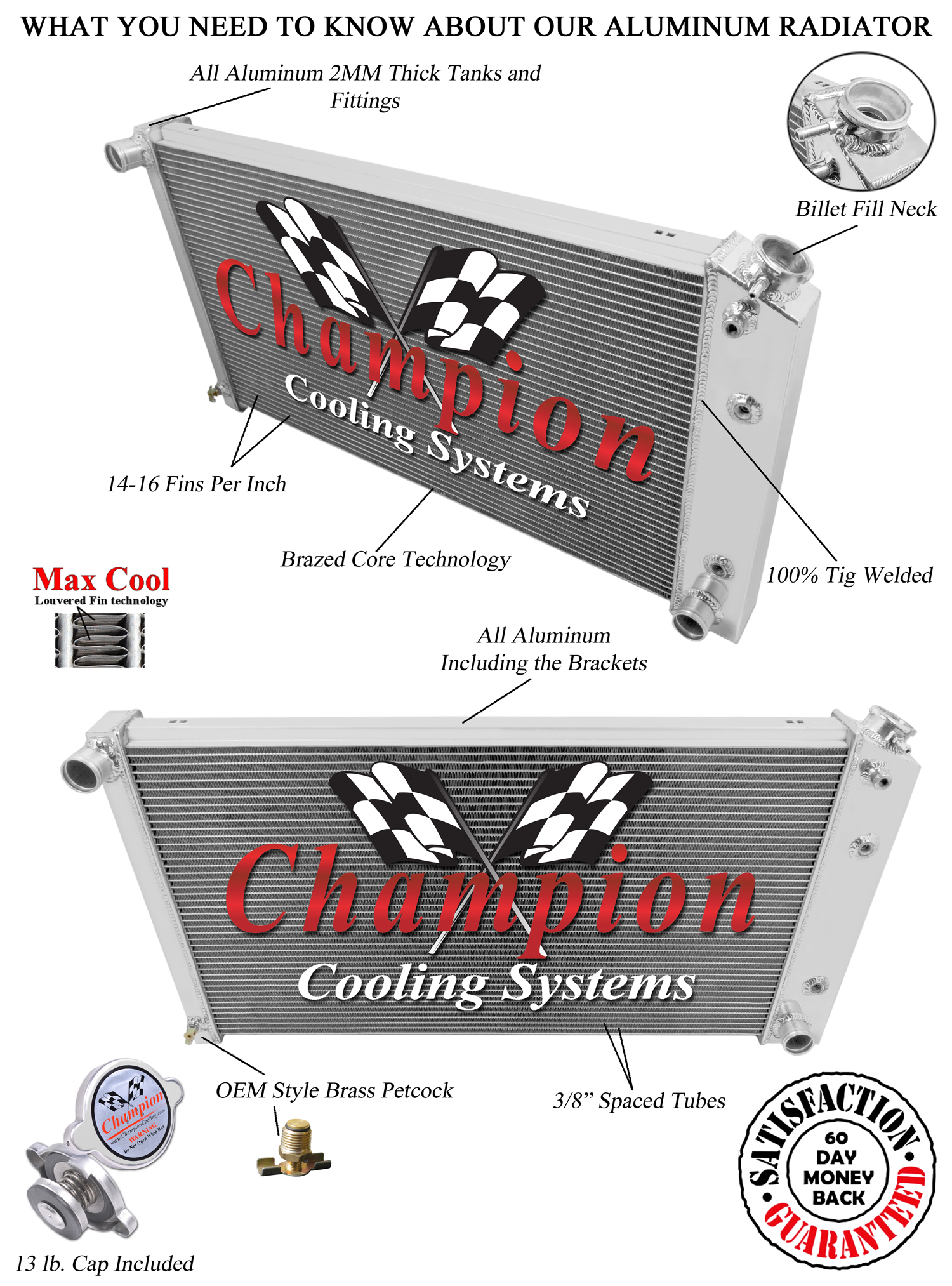

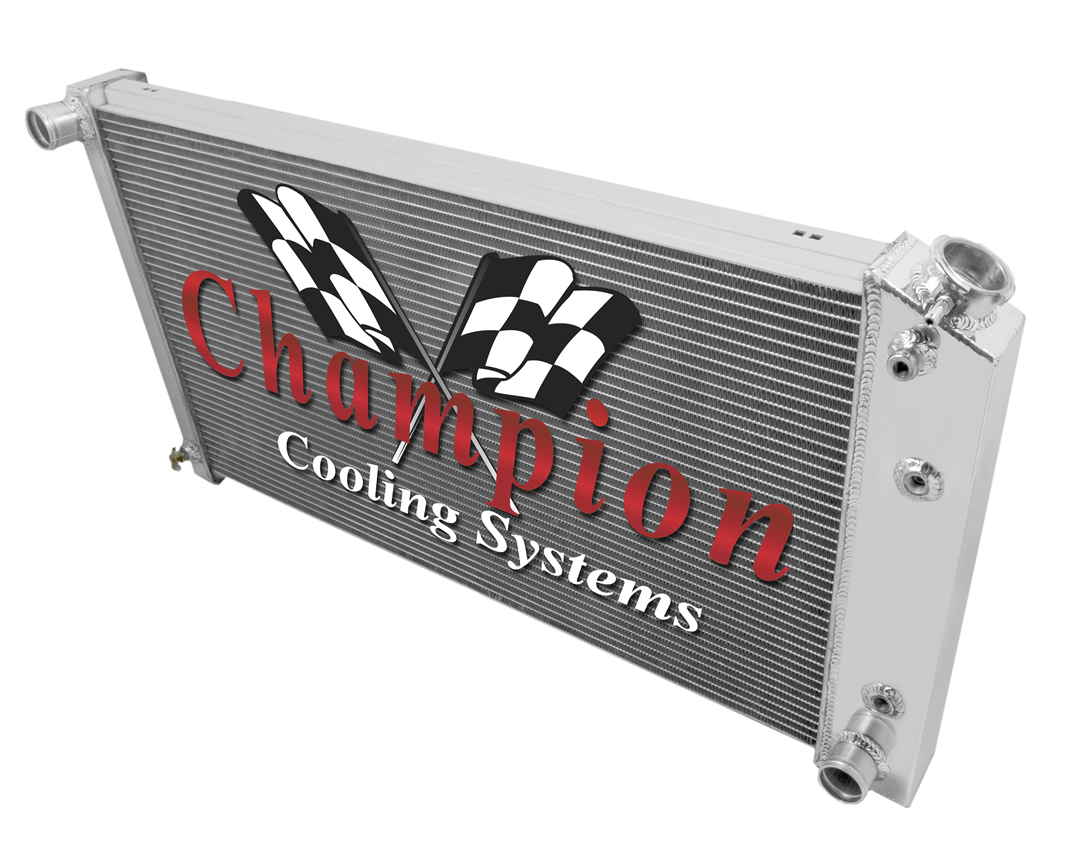

3 Row All Aluminum Radiator

Related Products:
Available Packages:
CC232 CC232 + CCFK16 CC232 + 2 x CCFK14 CC232 + FS232-2x14 + 2 x CCFK14

Attributes:


CORE DIM (H x W): 17 X 30 1/2
OVERALL (H x W): 18 1/2 X 35 1/4
HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2
FILL NECK: YES
TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE
MOUNTING TYPE: SADDLE
FLOW DIRECTION: CROSS FLOW
CORE ROWS: 3 ROW
CORE THICKNESS: 2 1/4
TANK WIDTH: 2 1/2

Applications:

Name Engine Notes
1979 Buick Electra 6.6L 403ci V8
1977 - 1979 Buick Estate Wagon 5.7L 350ci V8, 6.6L 403ci V8
1977 - 1979 Buick LeSabre 4.9L 301ci V8, 5.0L 305ci V8, 5.7L 350ci V8, 6.6L 403ci V8
1977 - 1978 Buick Riviera 5.7L 350ci V8, 6.6L 403ci V8
1982 - 1984 Cadillac Commercial Chassis 6.0L 368ci V8
1982 - 1984 Cadillac Limousine 6.0L 368ci V8
1982 - 1984 Cadillac Hearse 6.0L 368ci V8
1977 - 1982 Cadillac DeVille 7.0L 425ci V8
1977 - 1992 Cadillac Fleetwood Brougham 4.1L 250ci V6, 5.0L 305ci V8, 5.7L 350ci V8, 6.0L 368ci V8, 7.0L 425ci V8
1977 - 1979 Oldsmobile 98 5.7L 350ci V8, 6.6L 403ci V8
1977 - 1979 Oldsmobile Custom Cruiser 5.7L 350ci V8, 6.6L 403ci V8
1977 - 1979 Oldsmobile Delta 88 4.3L 260ci V8, 5.7L 350ci V8, 6.6L 403ci V8
1977 - 1979 Pontiac Bonneville 4.9L 301ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 6.6L 403ci V8
1977 - 1979 Pontiac Catalina 4.9L 301ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 6.6L 403ci V8
1977 Pontiac Safari Station Wagon 4.9L 301ci V8, 5.7L 350ci V8, 6.6L 400ci V8, 6.6L 403ci V8
