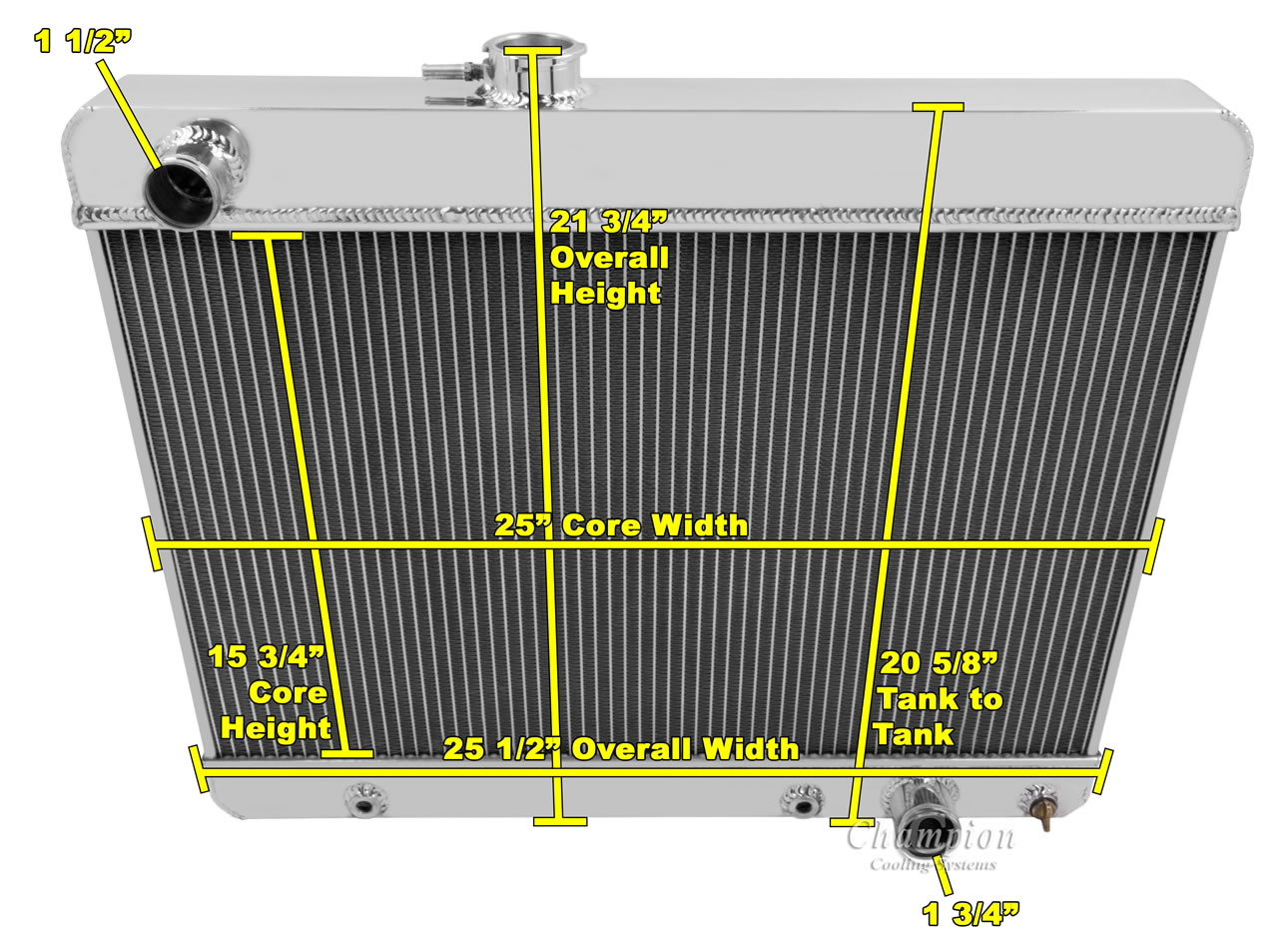

Verify your overall height for your application before purchasing. (Overall Height Tank to Tank: 20 9/16")
Attributes:
| CORE DIM (H x W): 15 3/4 X 25 |
| OVERALL (H x W): 21 3/4 X 25 1/2 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1965 - 1967 Pontiac GTO | 6.4L 389ci V8, 6.6L 400ci V8 | |
| 1965 - 1967 Pontiac LeMans | 5.3L 326ci V8 | |
| 1965 - 1967 Pontiac Tempest | 5.3L 326ci V8 |
