Attributes:

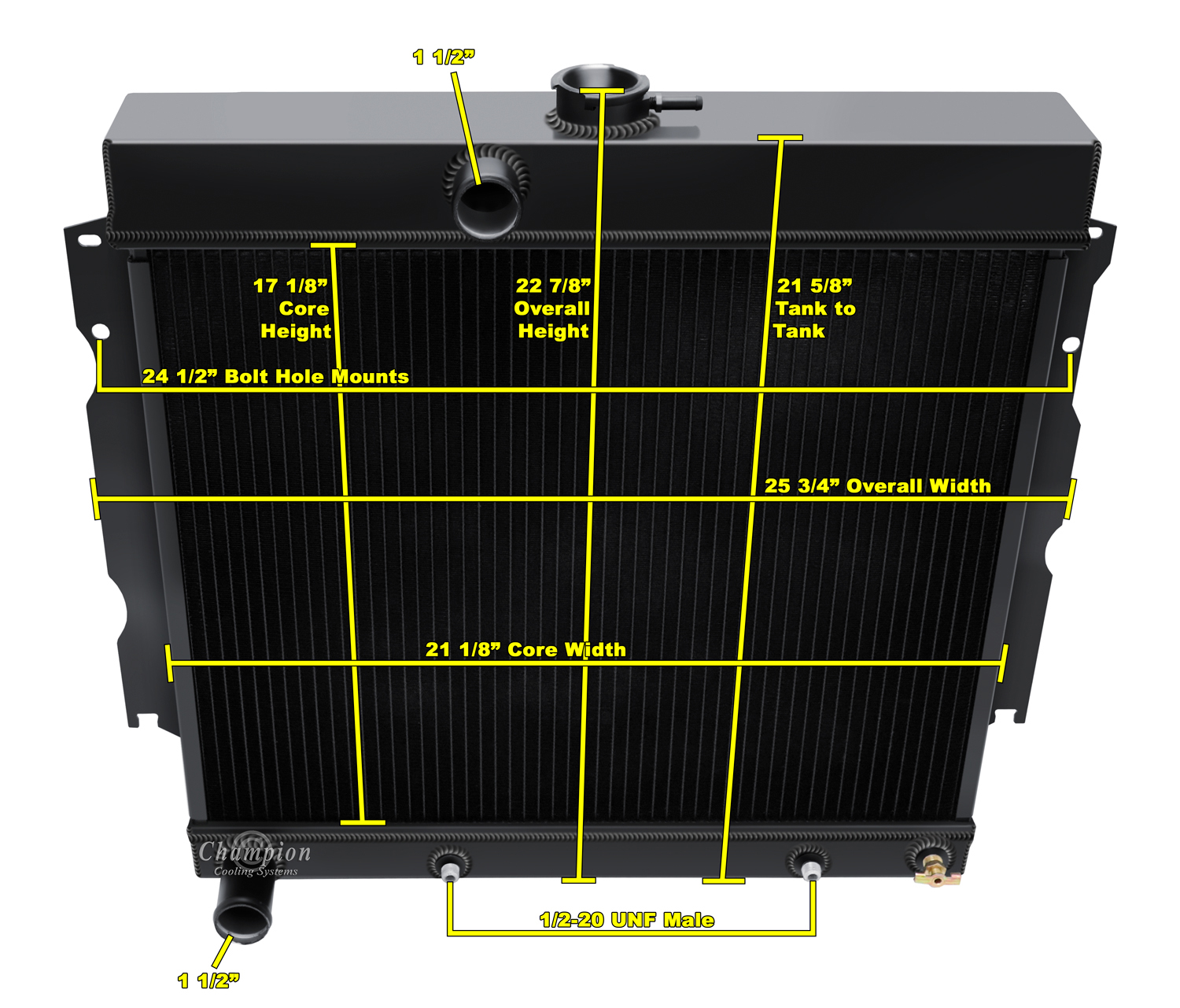

| CORE DIM (H x W): 17 1/8 X 21 1/8 |
| OVERALL (H x W): 22 7/8 X 25 3/4 |
| HOSE LOCATIONS: IN: OFF-SET DRIVER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 UNF |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 3 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1966 - 1969 Dodge Charger | ||
| 1965 - 1969 Dodge Coronet | ||
| 1965 - 1966 Dodge Dart | V8 | |
| 1963 - 1967 Dodge Station Wagon | ||
| 1963 - 1967 Plymouth Belvedere | ||
| 1963 - 1967 Plymouth Fury | ||
| 1965 - 1967 Plymouth Satellite | ||
| 1963 - 1964 Plymouth Savoy | ||
| 1963 - 1967 Plymouth Station Wagon | ||
| 1965 - 1966 Plymouth Valiant Signet | V8 |
