IN STOCK (21)

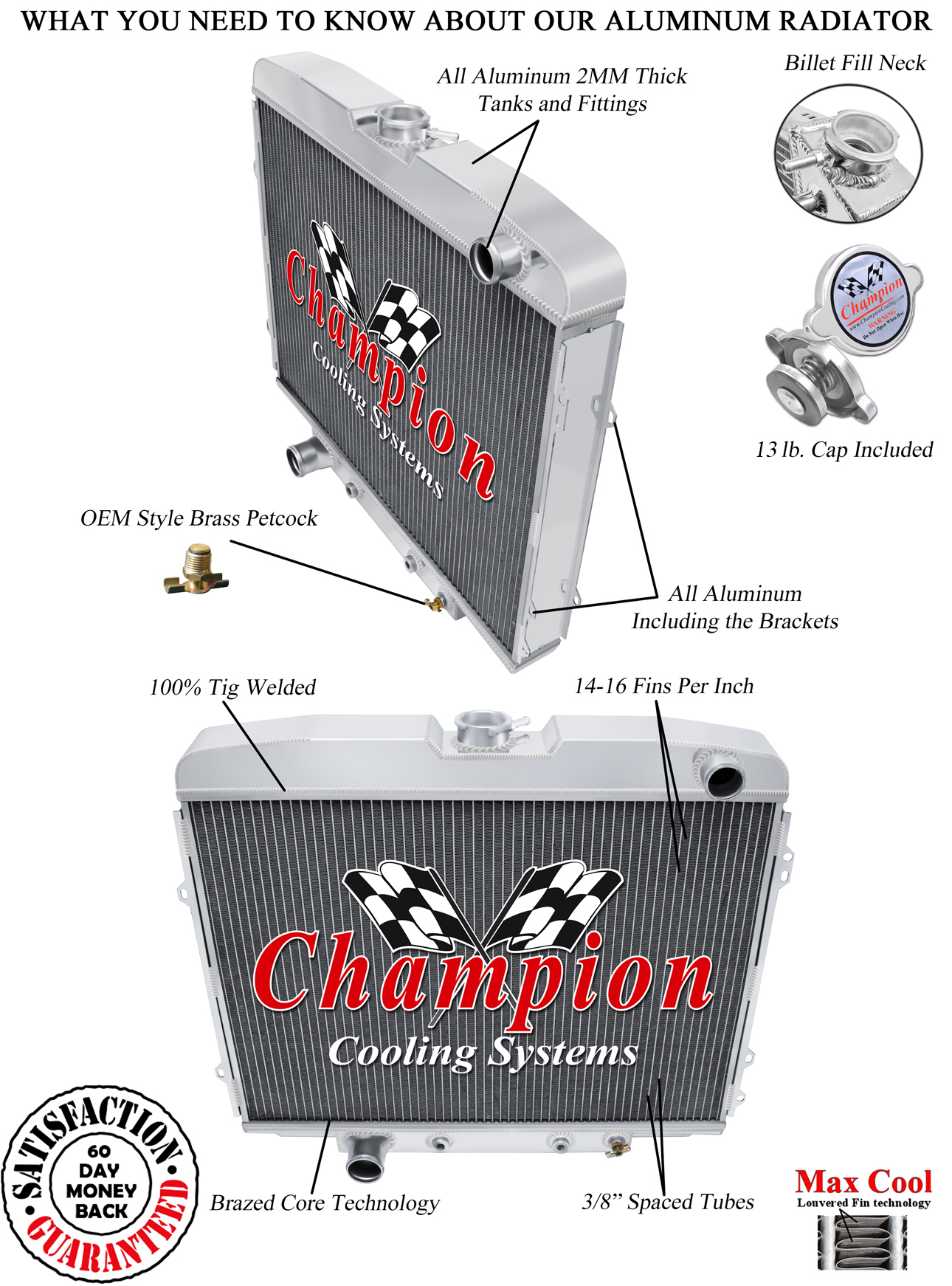

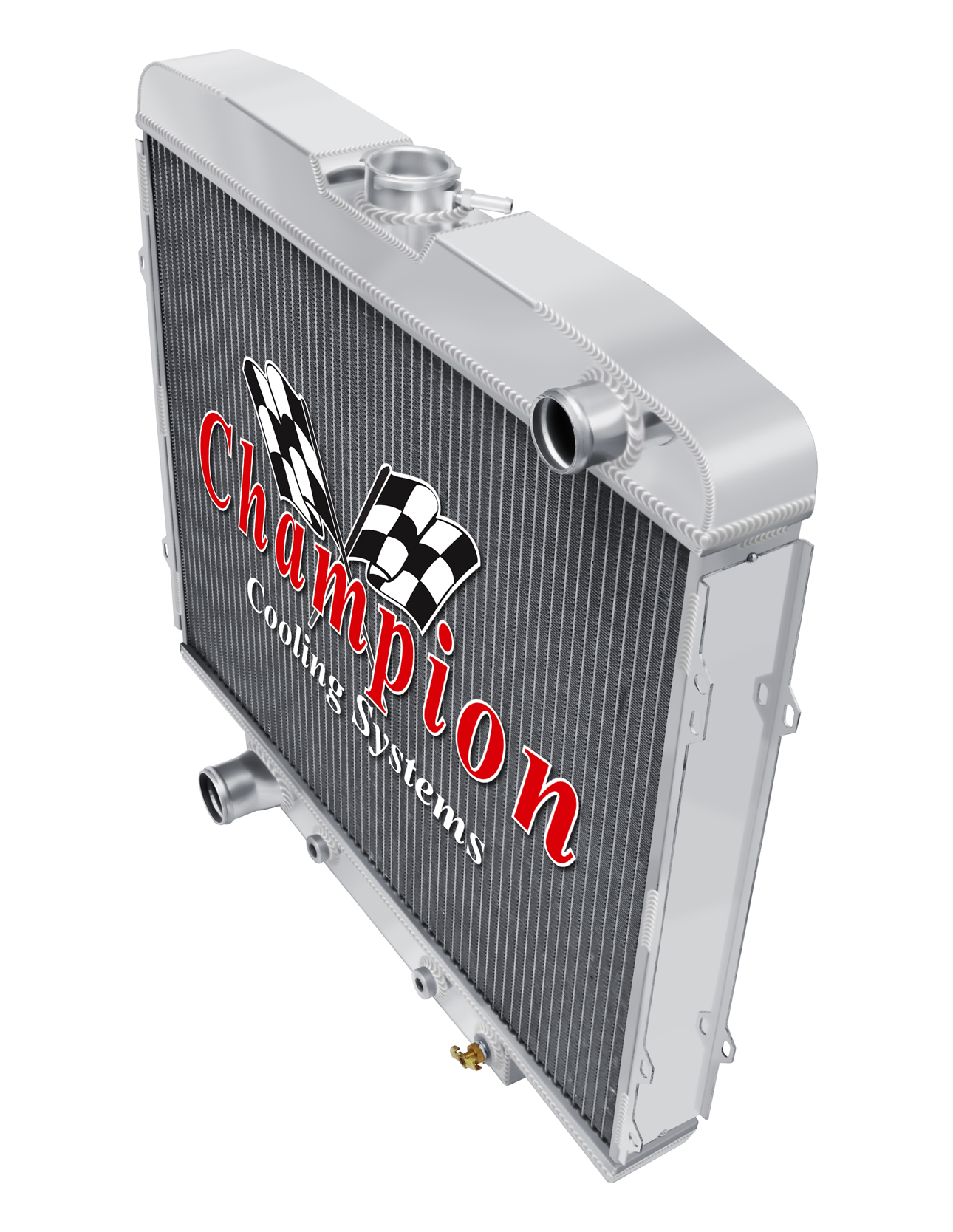

3 Row All Aluminum Radiator

Big Block V8 Engine

Available Packages:
CC1633 CC1633 + CCFK16 CC1633 + 2 x CCFK12 CC1633 + FS1631/1633-2x12 + 2 x CCFK12 CC1633 + FS1631/1633-1x16 + CCFK16

Attributes:

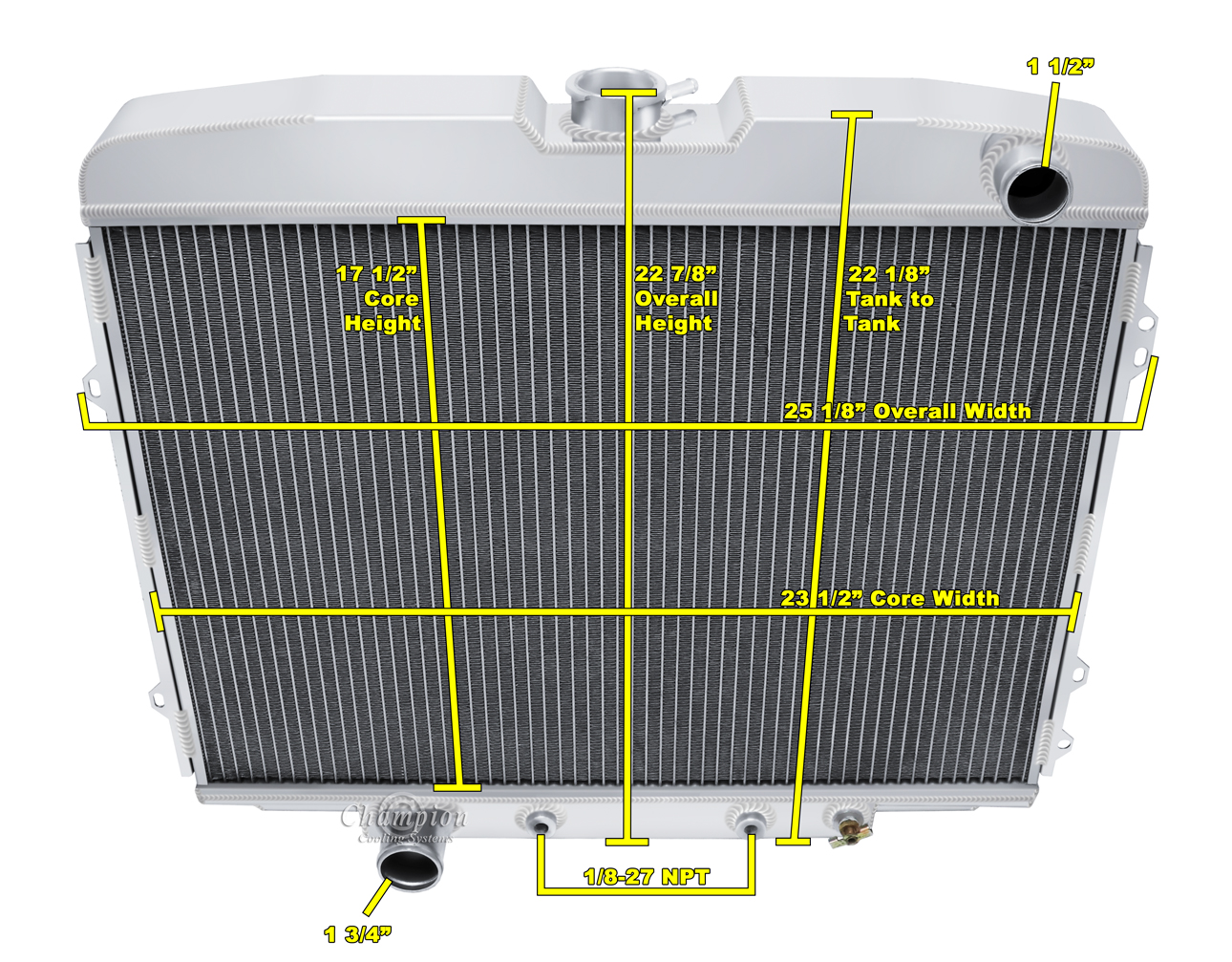

CORE DIM (H x W): 23 1/2 X 17 1/2
OVERALL (H x W): 27 7/8 X 25 1/8
HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4
FILL NECK: YES
TRANS COOLER: 1/8-27 NPT
MOUNTING TYPE: SADDLE
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3
CORE THICKNESS: 2 1/4
TANK WIDTH: 2 1/2

Applications:

Name Engine Notes
1968 - 1969 Ford Fairlane 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
1968 - 1969 Ford Ranchero 6.4L 390ci V8, 7.0L 428ci V8
1968 - 1969 Ford Torino 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
1968 - 1969 Mercury Comet 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
1968 - 1969 Mercury Cyclone 6.4L 390ci V8, 7.0L 427ci V8, 7.0L 428ci V8
