IN STOCK (13)

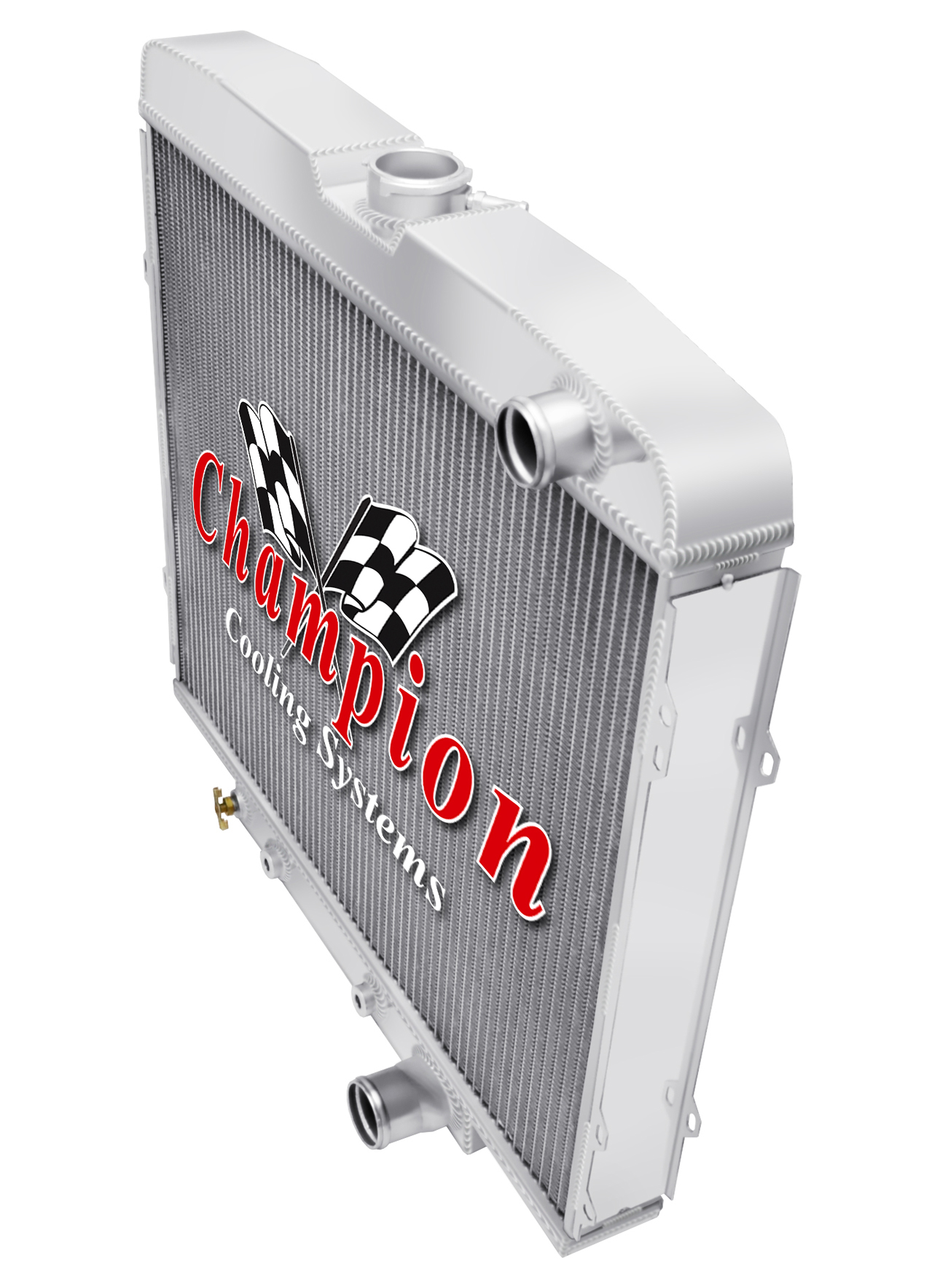

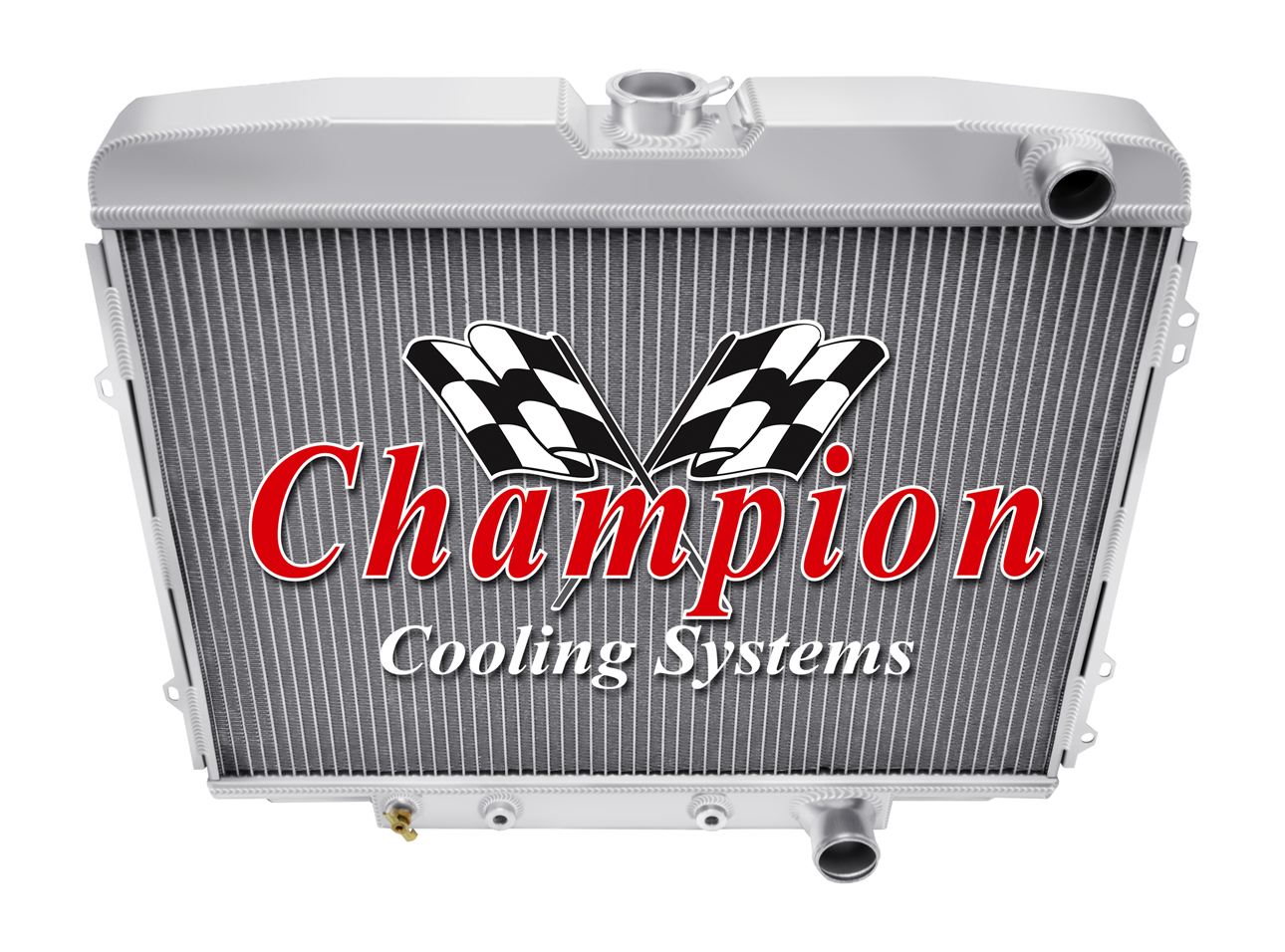

3 Row All Aluminum Radiator

Small Block V8 Engine

Available Packages:
CC1631 CC1631 + CCFK16 CC1631 + FS1631/1633-2x12 + 2 x CCFK12 CC1631 + FS1631/1633-1x16 + CCFK16

Attributes:

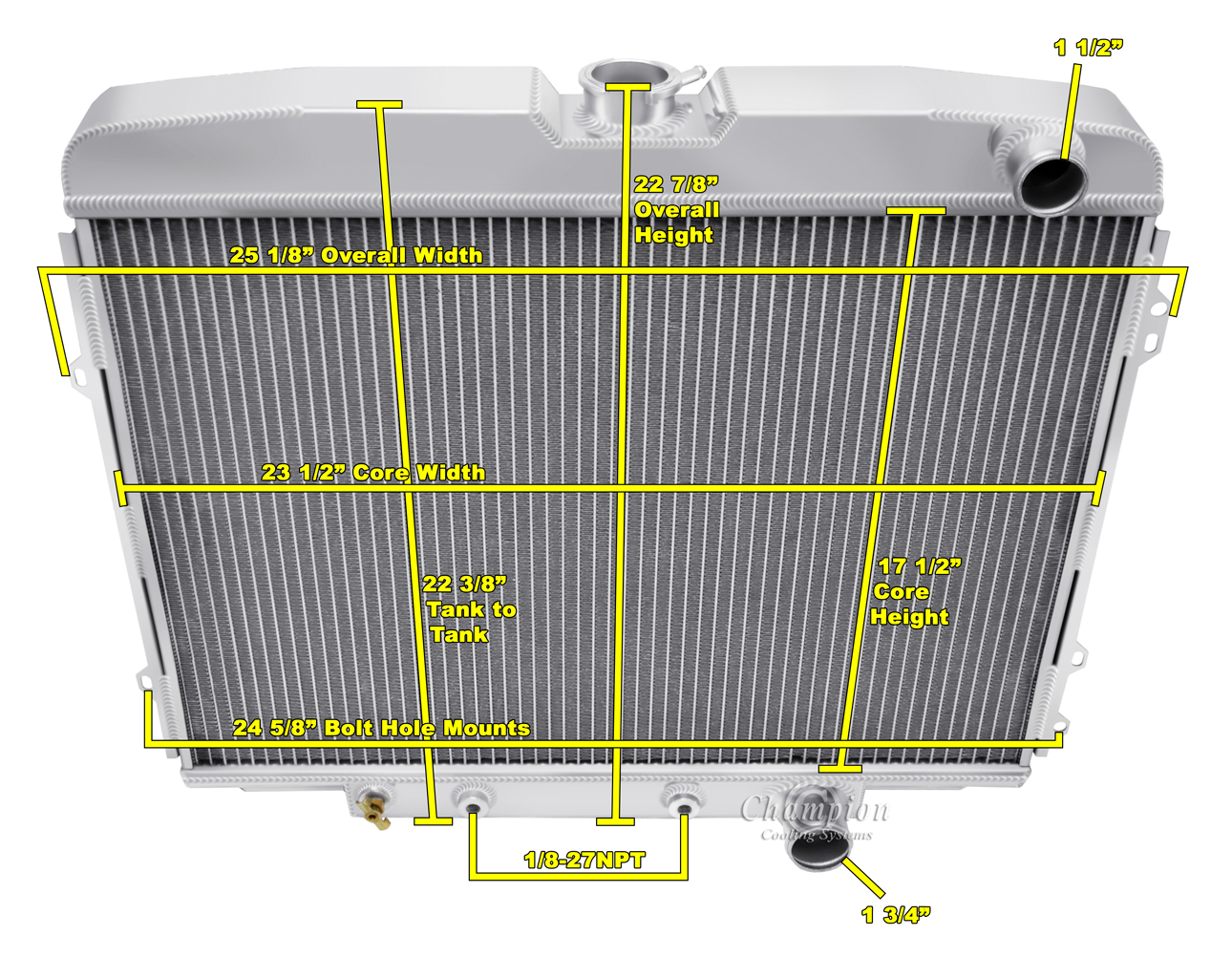

CORE DIM (H x W): 17 1/2 X 23 1/2
OVERALL (H x W): 22 7/8 X 25 1/8
HOSE LOCATIONS: IN: PASSENGER - OUT: PASSENGER
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4
FILL NECK: YES
TRANS COOLER: 1/8-27NPT
MOUNTING TYPE: BRACKET
FLOW DIRECTION: DOWN FLOW
CORE ROWS: 3 ROW
CORE THICKNESS: 2 1/4
TANK WIDTH: 2 1/2

Applications:

Name Engine Notes
1968 - 1969 Ford Fairlane 5.0L 302ci V8, 5.8L 351ci V8
1968 - 1969 Ford Ranchero 5.0L 302ci V8, 5.8L 351ci V8
1968 - 1969 Ford Torino 5.0L 302ci V8, 5.8L 351ci V8
1968 - 1969 Mercury Comet 4.7L 289ci V8, 5.0L 302ci V8
1968 - 1969 Mercury Cyclone 4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8
