OUT OF STOCK (0)

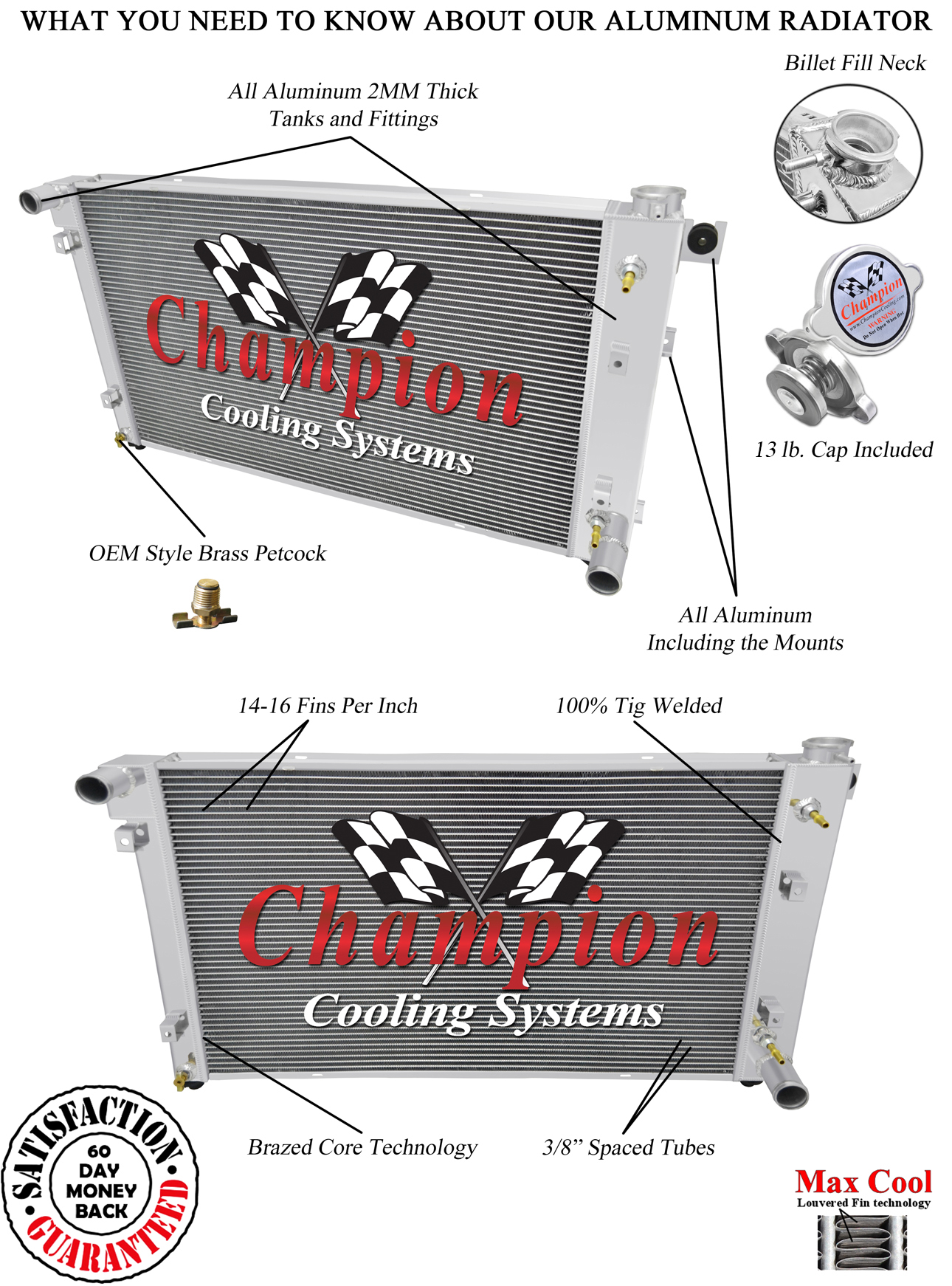

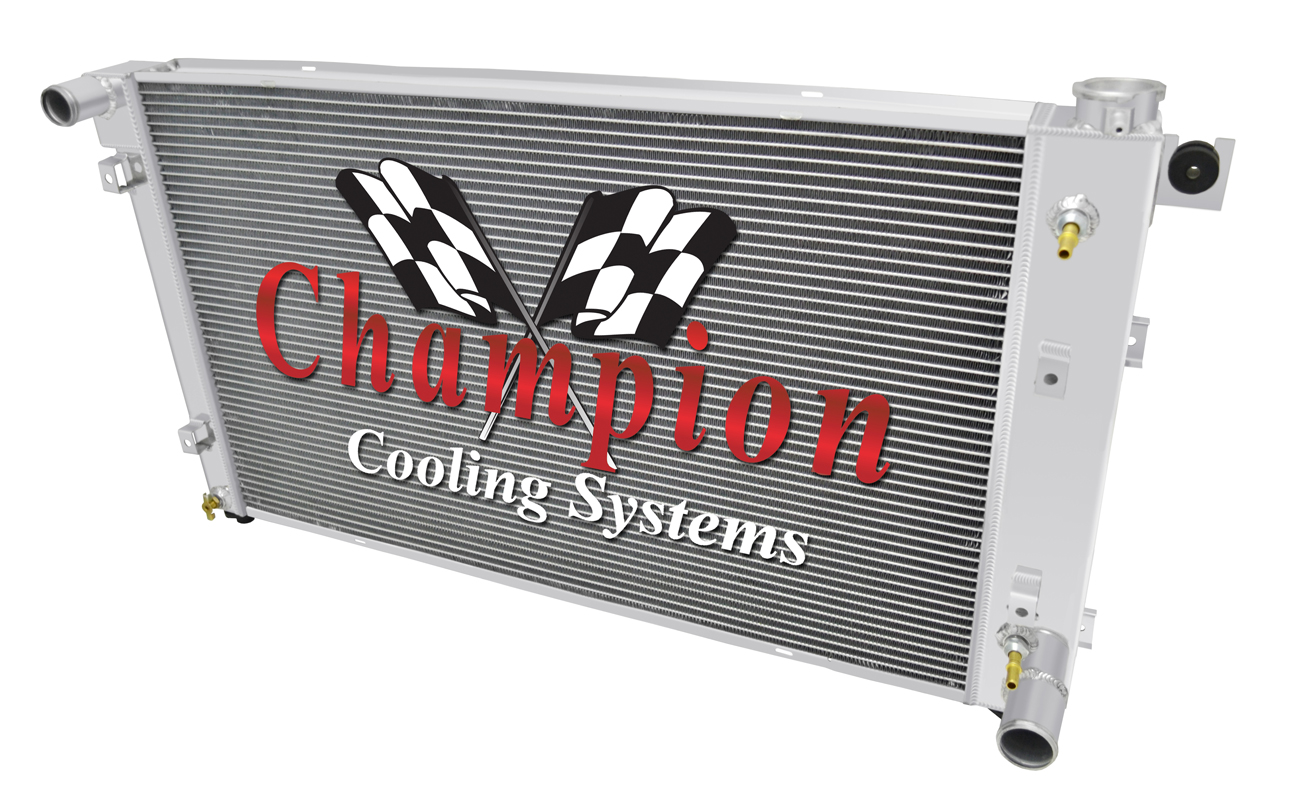

3 Row All Aluminum Radiator
The following applications will fit but the core is 3/16" smaller than the OEM Radiator so you may need to enlarge mounting holes for proper alignment. 2001 Dodge Ram 1500, 1998 - 2002 Dodge Ram 2500, 1998 - 2002 Dodge Ram 3500
Does not fit a 5.9L L6 Diesel
Attributes:

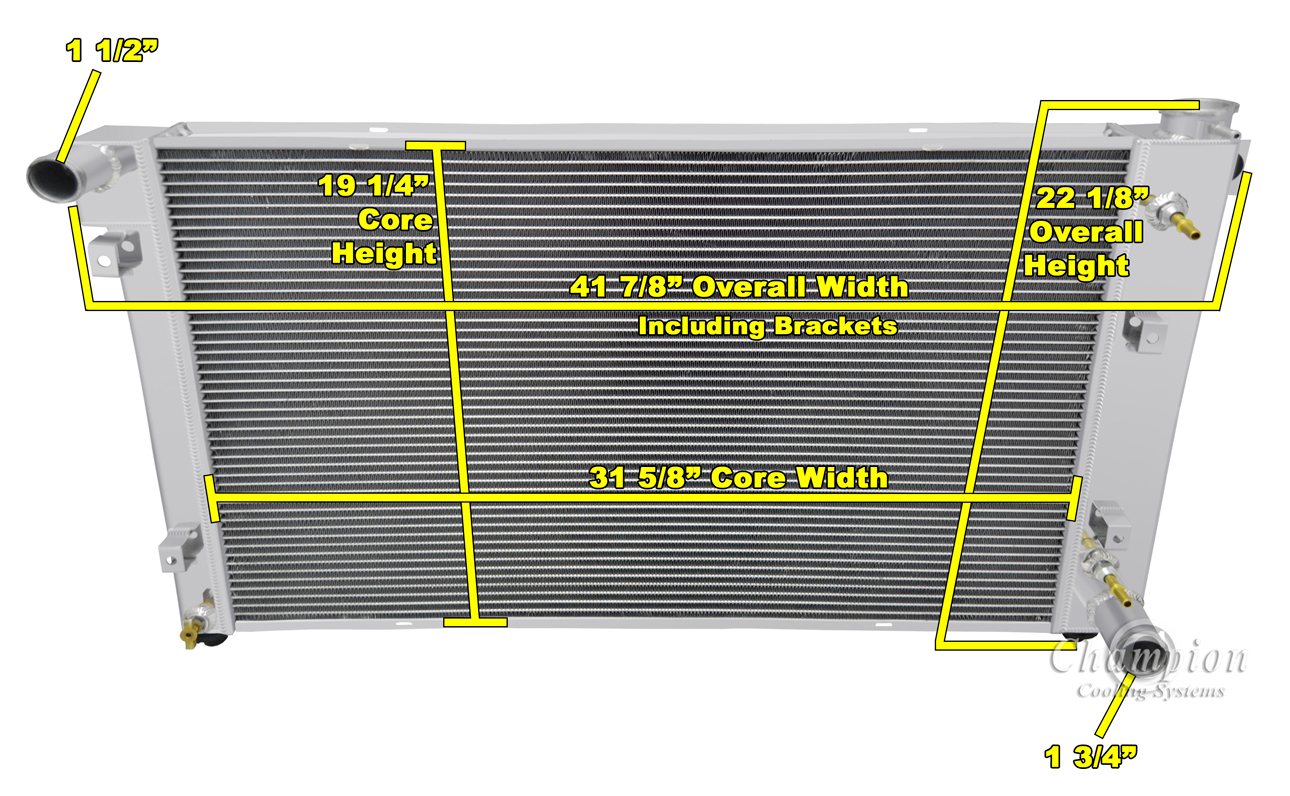

| CORE DIM (H x W): 19 1/4 X 31 5/8 |
| OVERALL (H x W): 22 1/8 X 41 7/8 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: M14-1.0 |
| MOUNTING TYPE: SLOTS AND PIN |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1994 - 2001 Dodge Ram 1500 | ||
| 1994 - 2002 Dodge Ram 2500 | 5.9L 360ci V8 | |
| 1994 - 2002 Dodge Ram 3500 | 5.9L 360ci V8 |
