Attributes:

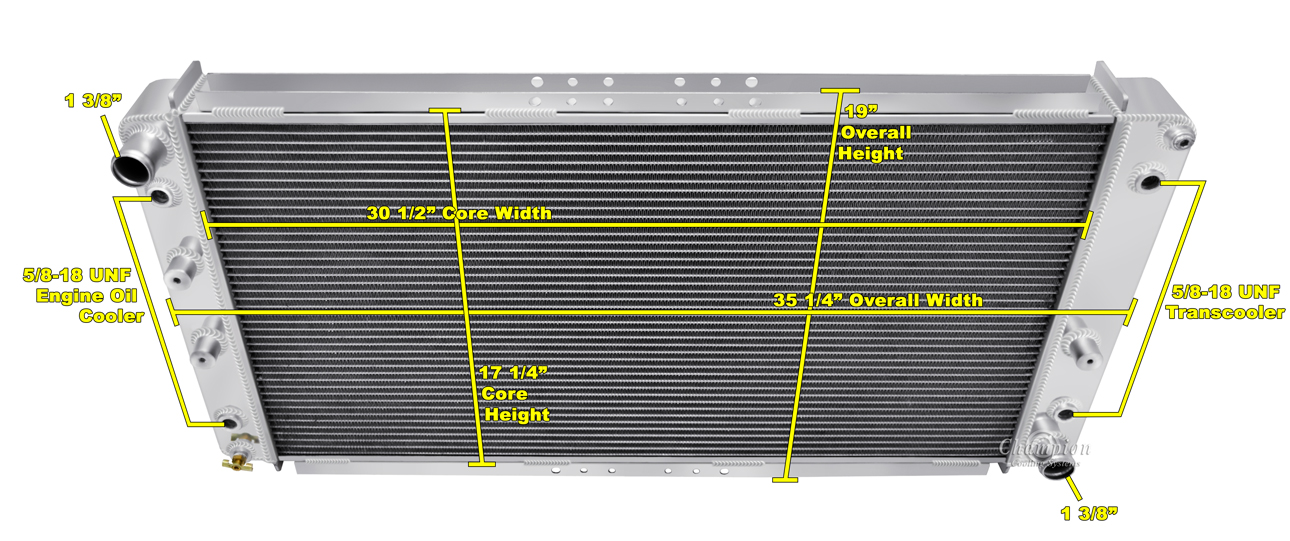

| CORE DIM (H x W): 17 1/4 X 30 1/2 |
| OVERALL (H x W): 19 X 35 1/4 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 3/8 - OUT: 1 3/8 |
| FILL NECK: NO |
| TRANS COOLER: 5/8-18 UNF |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 2 1/2 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1994 - 1996 Buick Roadmaster | 5.7L 350ci V8 | |
| 1994 - 1996 Cadillac Fleetwood | 5.7L 350ci V8 | |
| 1994 - 1996 Chevrolet Caprice | 4.3L 265ci V8, 5.7L 350ci V8 | |
| 1994 - 1996 Chevrolet Impala | 5.7L 350ci V8 |
