Attributes:

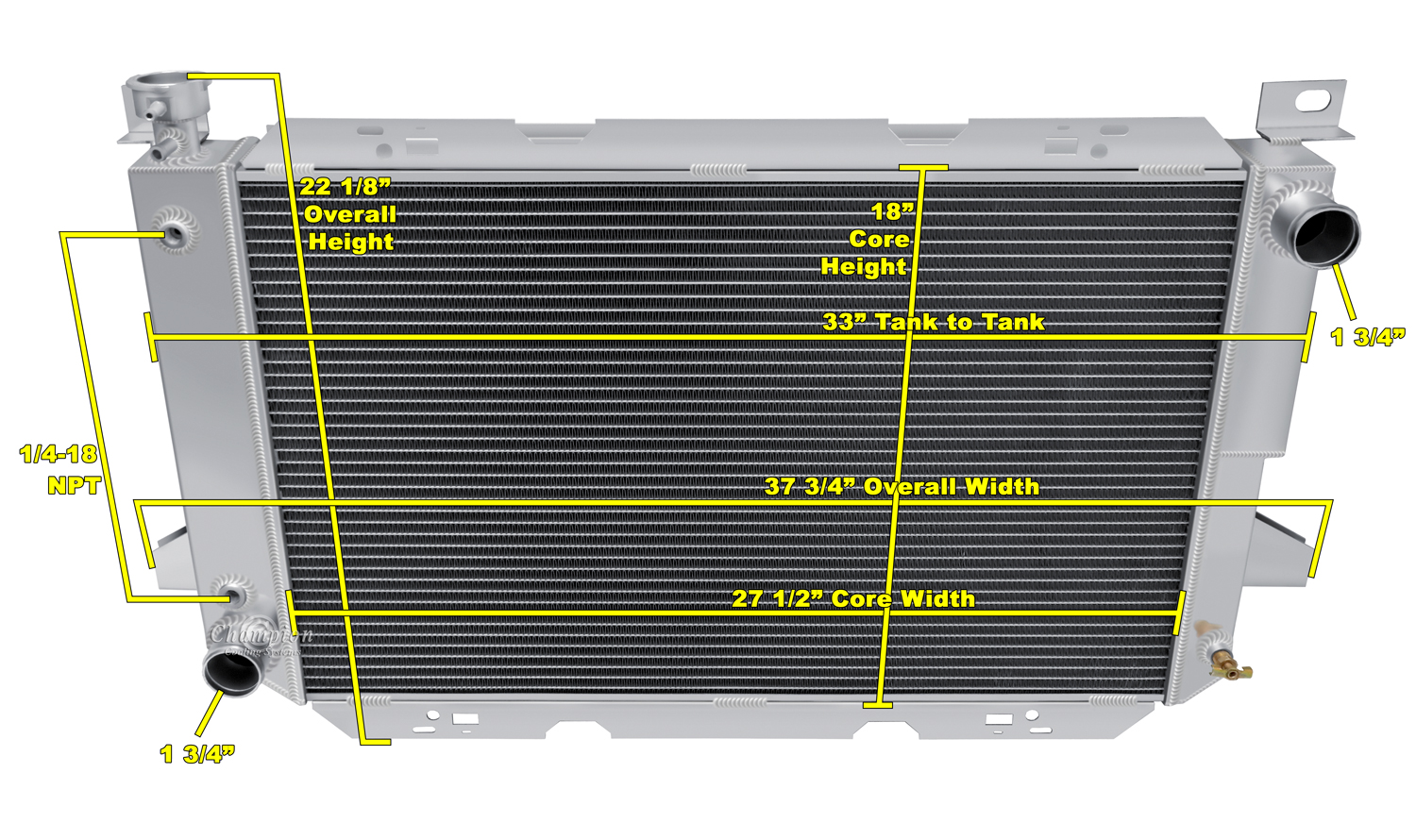

| CORE DIM (H x W): 18 3/8 X 27 1/2 |
| OVERALL (H x W): 22 1/2 X 37 1/4 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 3/4 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/4-18NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1985 - 1996 Ford Bronco | 5.0L 302ci V8, 5.8L 351ci V8 | |
| 1985 - 1997 Ford F-Series | 5.0L 302ci V8, 5.8L 351ci V8, 7.5L 460ci V8 |
