Attributes:

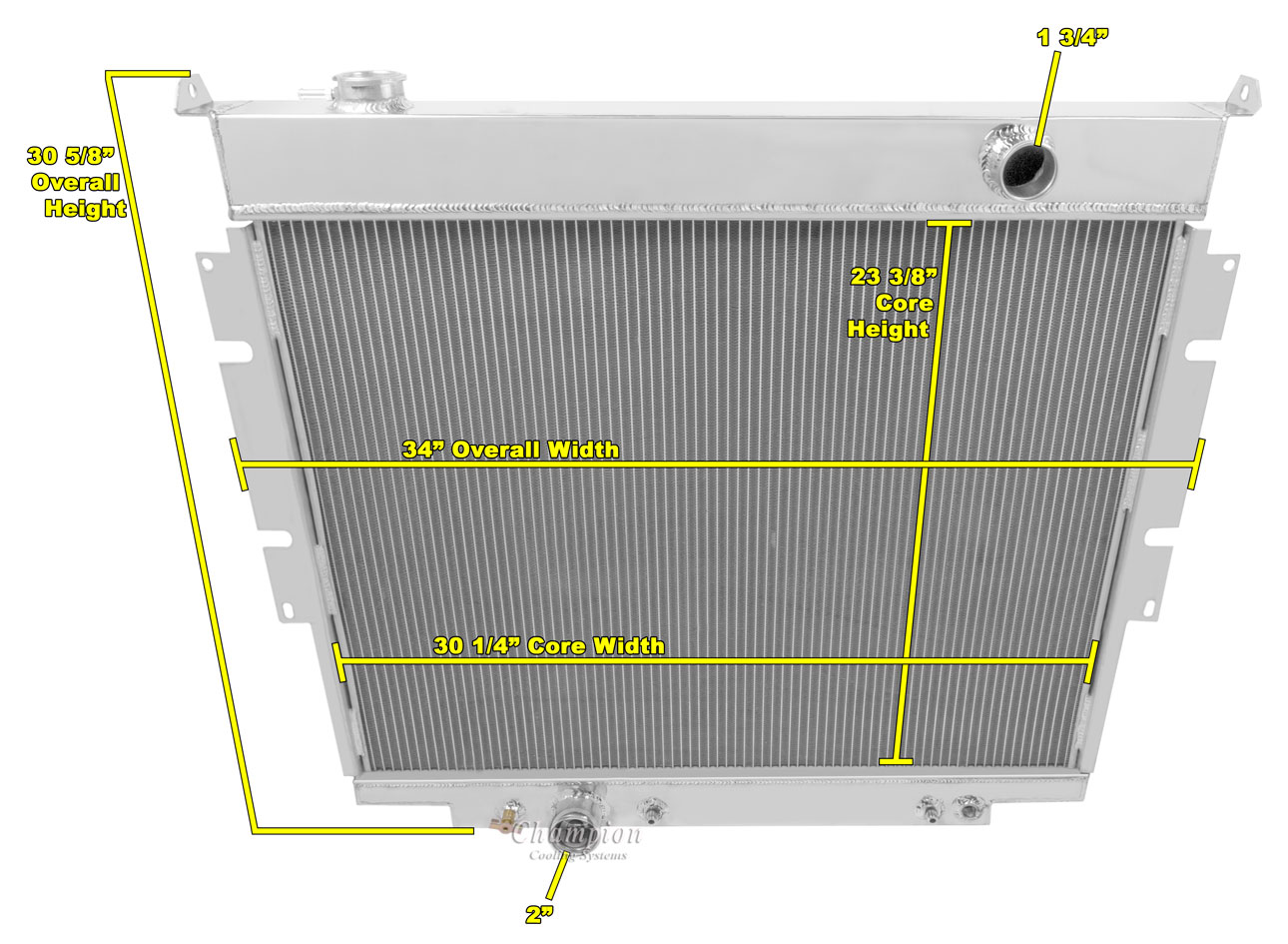

| CORE DIM (H x W): 23 3/4 X 31 1/8 |
| OVERALL (H x W): 30 7/8 X 33 3/4 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 3/4 - OUT: 2 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 3 ROW |
| CORE THICKNESS: 2 1/4 |
| TANK WIDTH: 3 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1983 - 1994 Ford F-Series Pickups | 6.9L 420ci V8, 7.3L 445ci V8 | Diesel Engine |
