Attributes:

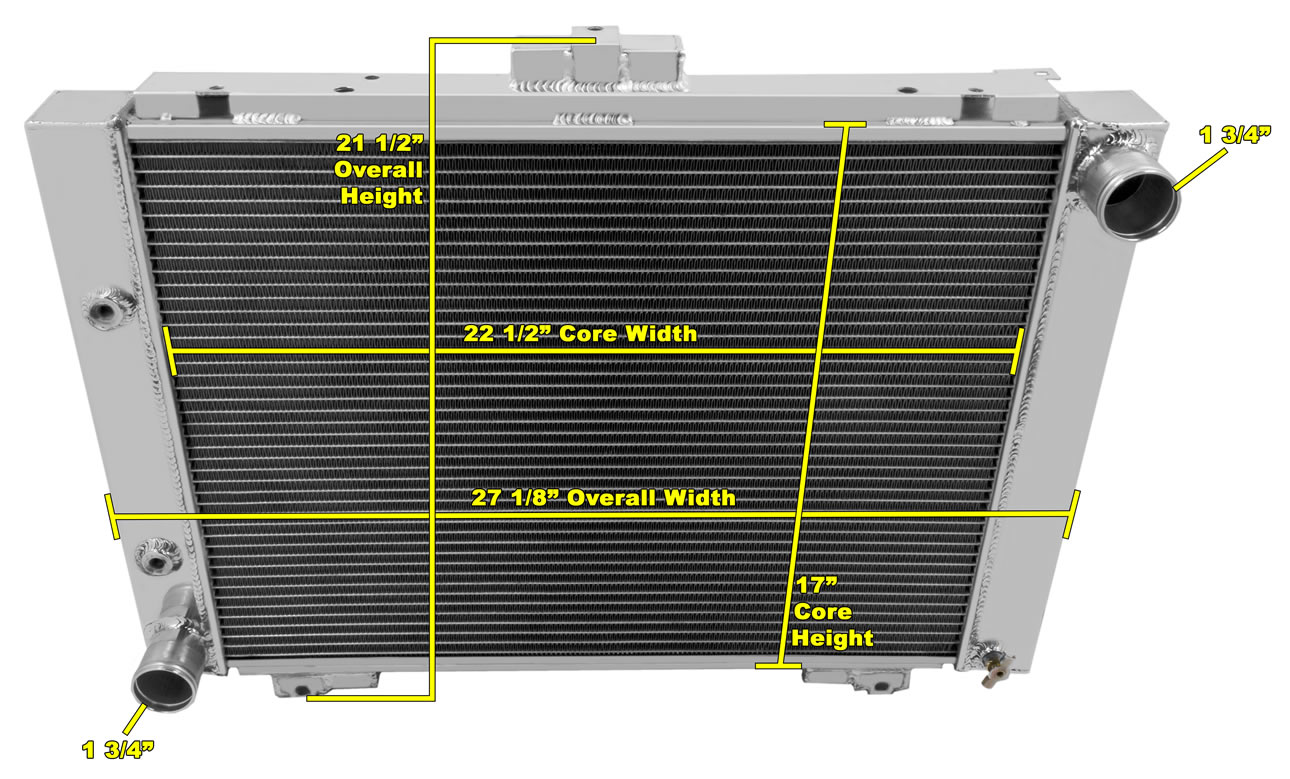

| CORE DIM (H x W): 17 X 22 1/2 |
| OVERALL (H x W): 21 1/2 X 27 1/8 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 3/4 - OUT: 1 3/4 |
| FILL NECK: NO |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1964 Ford Galaxie | 4.7L 289ci V8, 5.8L 352ci V8, 6.4L 390ci V8 | |
| 1964 Ford Galaxie 500 | 4.7L 289ci V8, 5.8L 352ci V8, 6.4L 390ci V8 | |
| 1964 - 1966 Mercury Montclair | 6.4L 390ci V8, 6.7L 410ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1964 - 1966 Mercury Monterey | 6.4L 390ci V8, 6.7L 410ci V8, 7.0L 427ci V8, 7.0L 428ci V8 | |
| 1964 - 1966 Mercury Park Lane | 6.4L 390ci V8, 6.7L 410ci V8, 7.0L 427ci V8, 7.0L 428ci V8 |
