Available Packages:
AE583 AE583 + CCFK16 AE583 + 2 x CCFK10 AE583 + FS583/1919 + CCFK16 AE583 + FS583/1919-2x13 + 2 x CCFK13
AE583 AE583 + CCFK16 AE583 + 2 x CCFK10 AE583 + FS583/1919 + CCFK16 AE583 + FS583/1919-2x13 + 2 x CCFK13
Attributes:

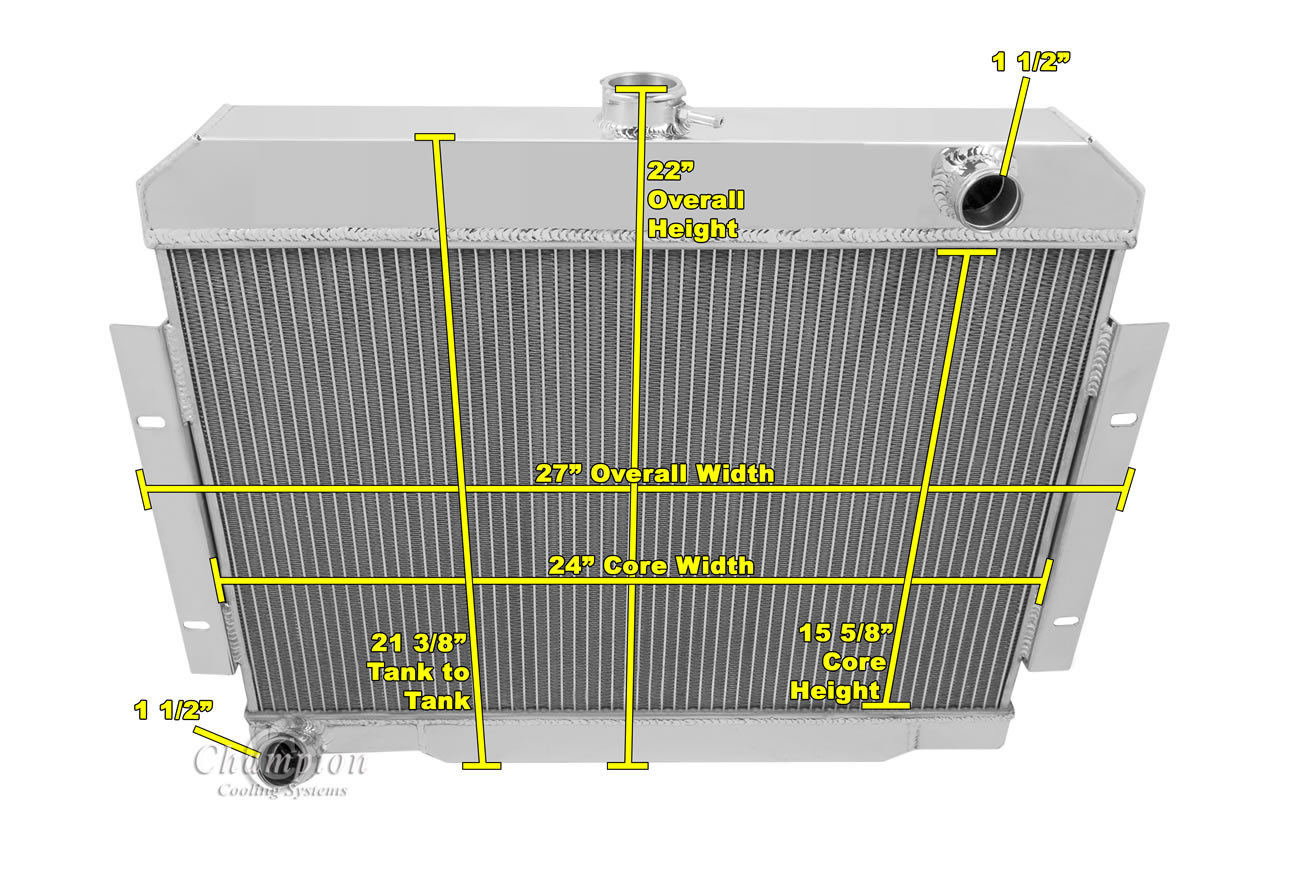

| CORE DIM (H x W): 15 5/8 X 24 |
| OVERALL (H x W): 22 X 27 |
| HOSE LOCATIONS: IN: PASSENGER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 1/2 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1970 - 1985 Jeep CJ Series | 3.8L 232ci L6, 4.2L 258ci L6, 5.0L 304ci V8 |
