This radiator does not work with a Flathead engine.
Attributes:

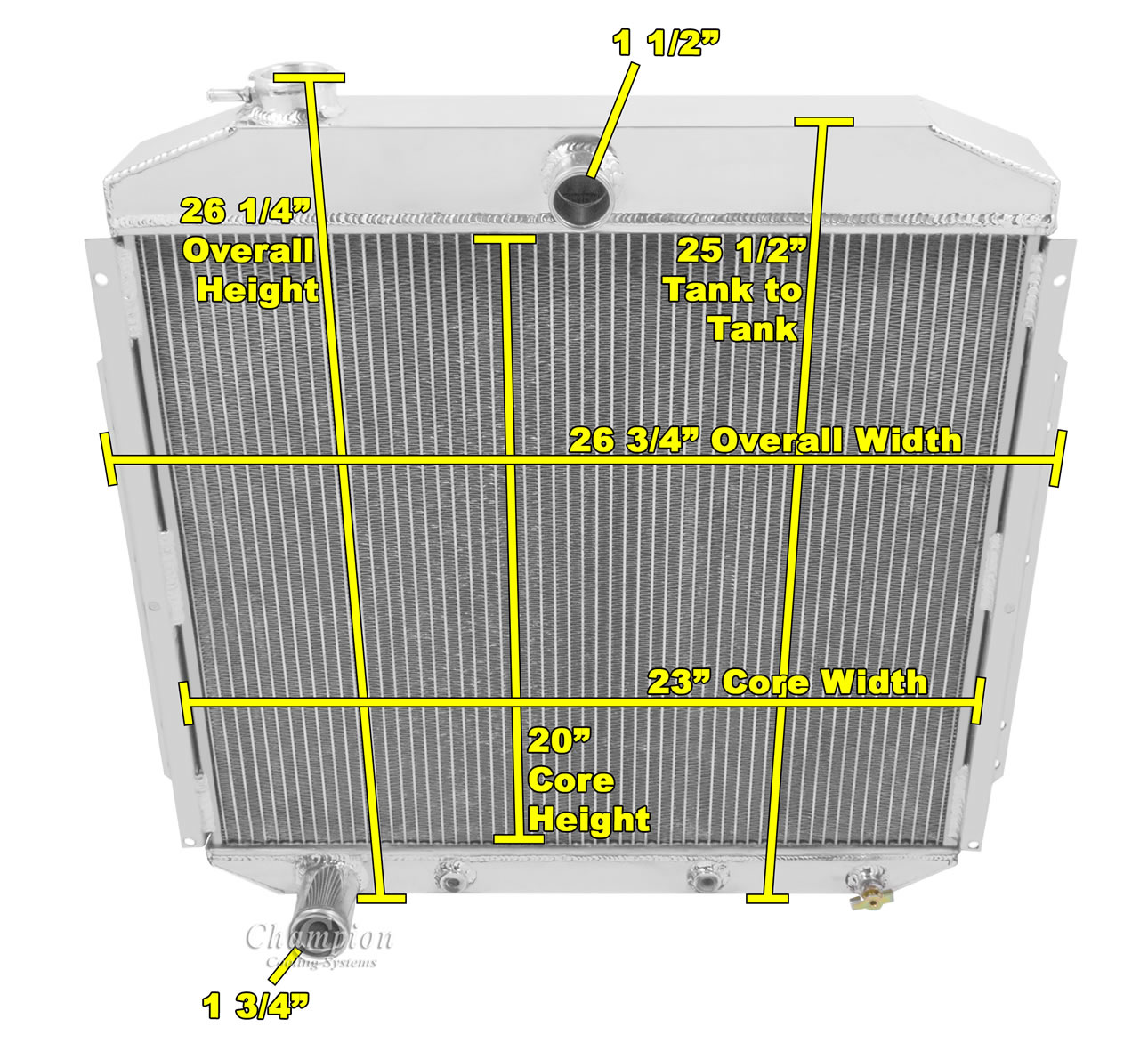

| CORE DIM (H x W): 20 X 23 |
| OVERALL (H x W): 26 1/4 X 26 3/4 |
| HOSE LOCATIONS: IN: CENTER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1953 - 1956 Ford Truck | 3.9L 239ci V8, 4.2L 255ci V8, 4.2L 256ci V8, 4.4L 272ci V8 | V6 or a V8 Engine |
