Available Packages:
AE4146CH AE4146CH + 2 x CCFK10 AE4146CH + CCFK16 AE4146CH + FS4146CH-2x10 + 2 x CCFK10 AE4146CH + FS4146/4146CH-16 + CCFK16
AE4146CH AE4146CH + 2 x CCFK10 AE4146CH + CCFK16 AE4146CH + FS4146CH-2x10 + 2 x CCFK10 AE4146CH + FS4146/4146CH-16 + CCFK16
Attributes:

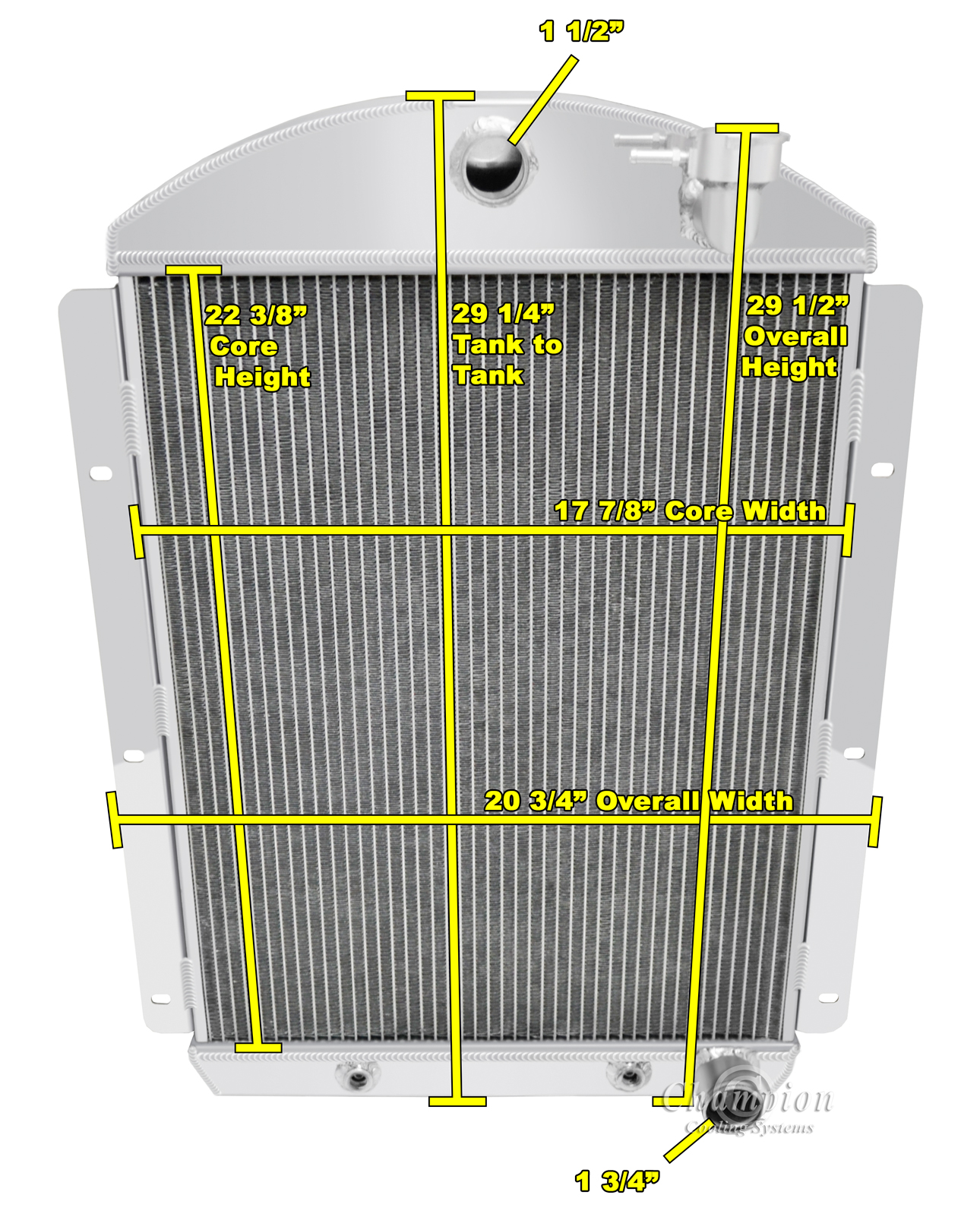

| CORE DIM (H x W): 22 1/4 X 18 |
| OVERALL (H x W): 29 X 20 3/4 |
| HOSE LOCATIONS: IN: CENTER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1941 - 1946 Chevrolet Truck | Small Block V8 |
