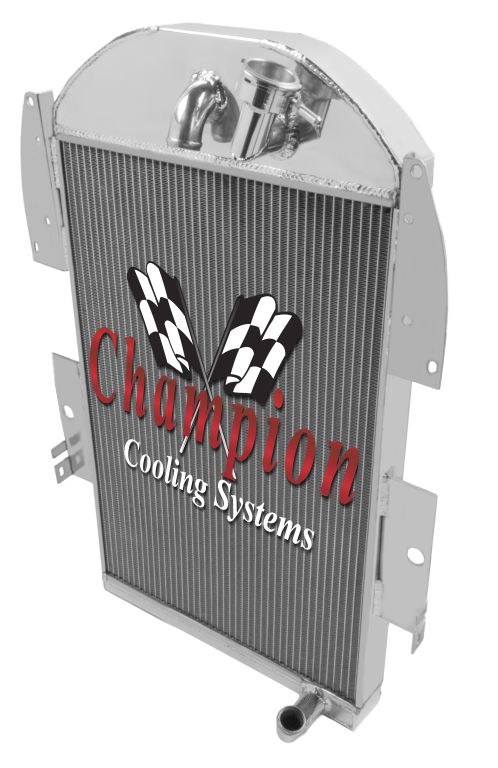

This radiator has "turned up and turned down" inlet and outlet hose fittings.
Attributes:

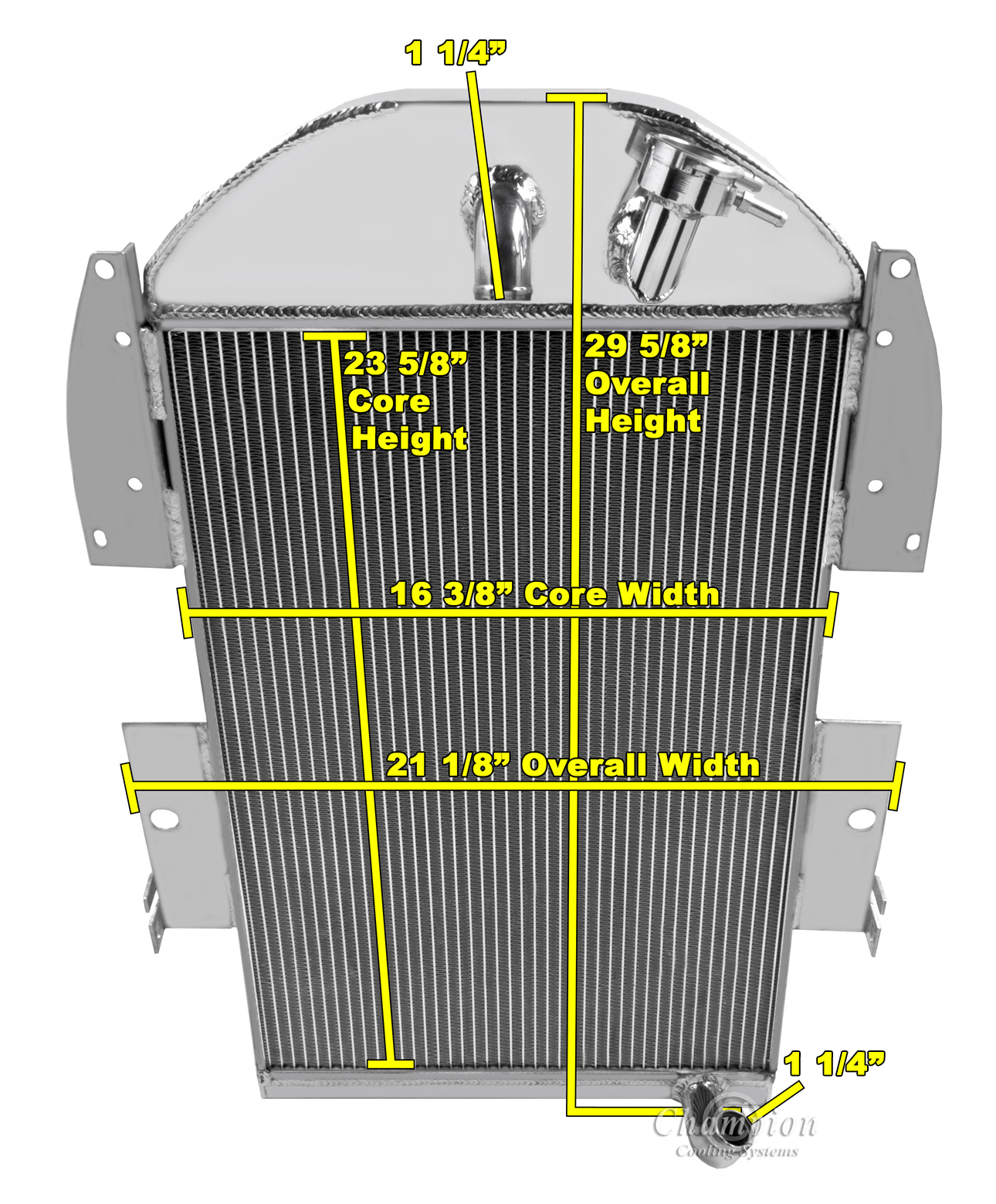

| CORE DIM (H x W): 23 5/8 X 16 3/8 |
| OVERALL (H x W): 29 5/8 X 21 1/8 |
| HOSE LOCATIONS: IN: CENTER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1934 - 1936 Chevrolet Pickup | Factory 6 Cylinder Engine |
