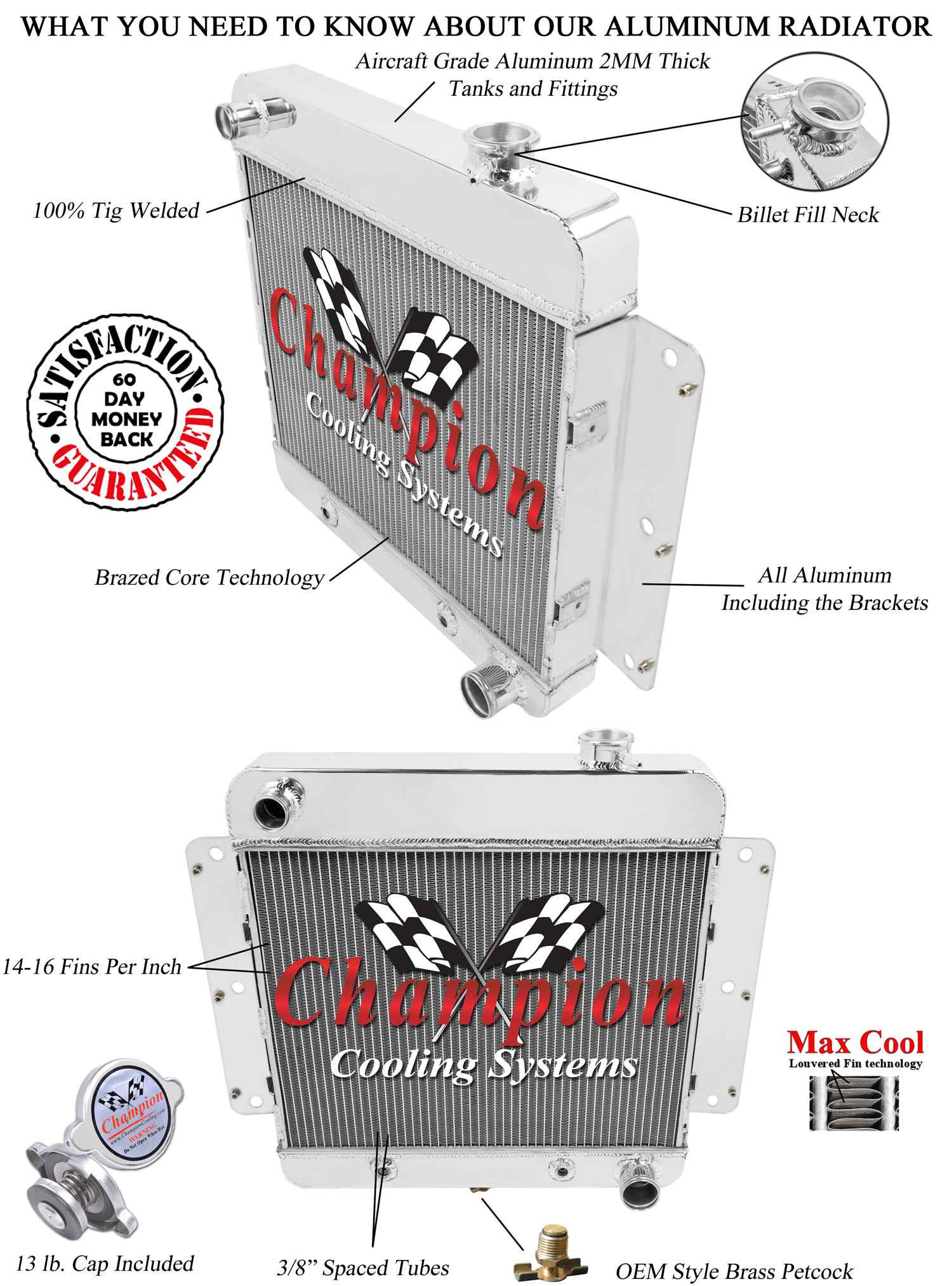

2 Row 1" Tubes All Aluminum Radiator
V8 Conversion
See Part Number EC255-6 for 6 cylinder motors since they are longer and need more room.
This radiator is designed as a V8 Conversion for a small displacement V8 or with a shortened L6 water pump shaft. It does NOT fit with six cylinder motors because the fan to core clearance is too close and the fan will go into the core and tanks.
Attributes:

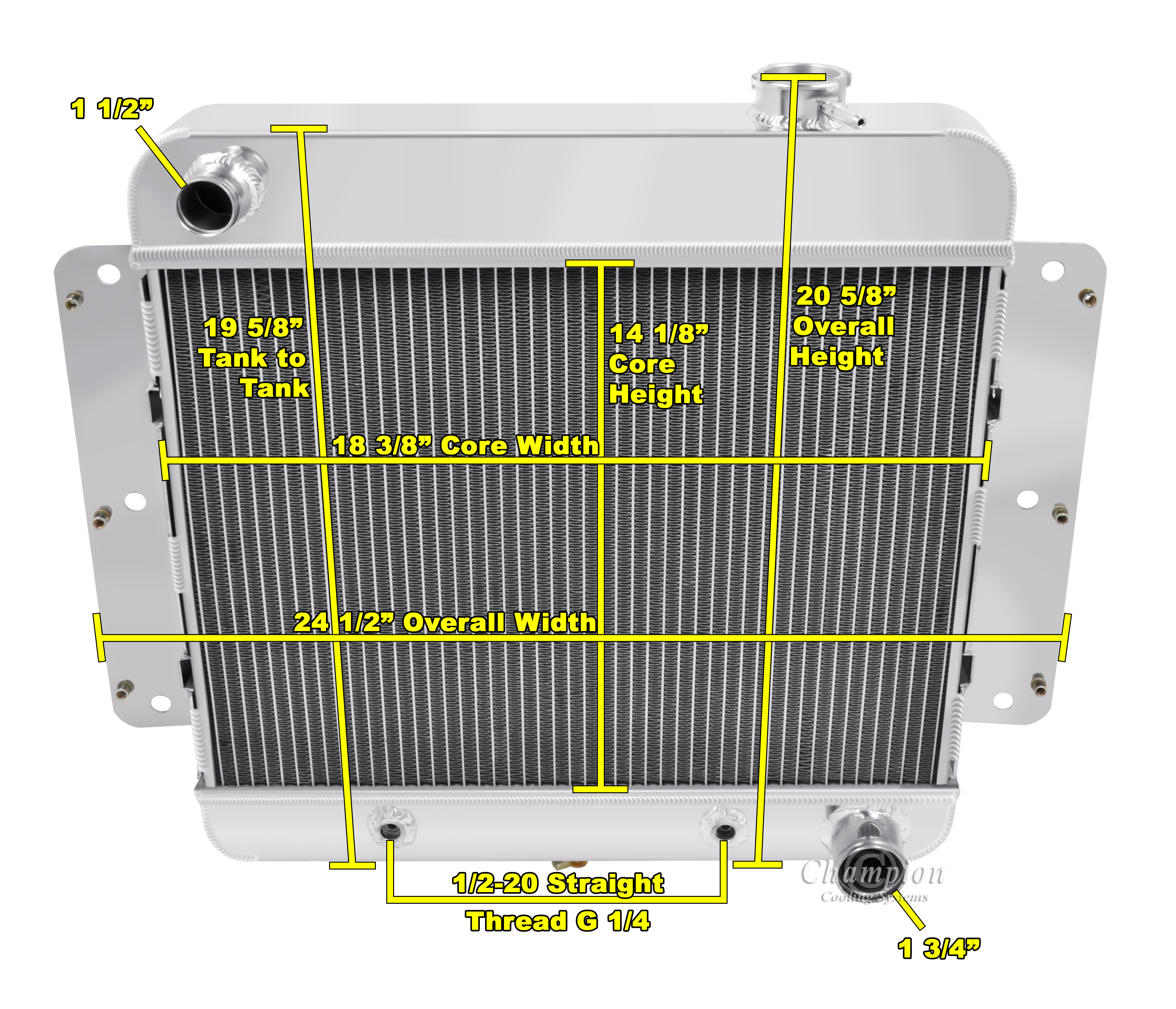

| CORE DIM (H x W): 14 1/8 X 18 1/8 |
| OVERALL (H x W): 22 1/8 X 24 1/2 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/4 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1962 - 1967 Chevrolet Chevy II Nova | V8 Conversion | |
| 1962 - 1967 Chevrolet Chevy II | V8 Conversion | |
| 1962 - 1967 Chevrolet Chevy II Nova SS | V8 Conversion |
