Attributes:

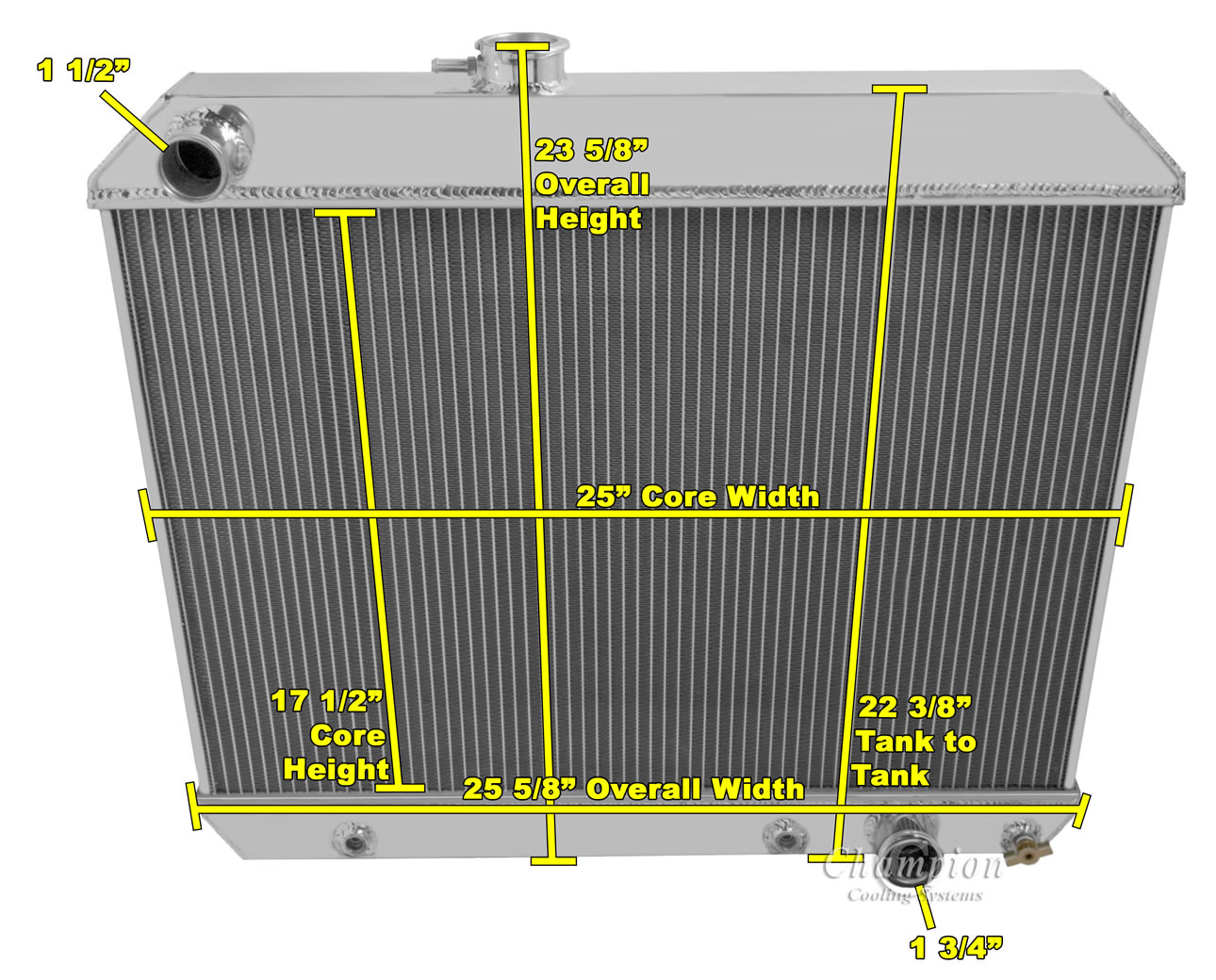

| CORE DIM (H x W): 17 1/2 X 25 |
| OVERALL (H x W): 23 5/8 X 25 5/8 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1964 - 1965 Pontiac GTO | 6.4L 389ci V8 | |
| 1964 - 1965 Pontiac LeMans | 5.3L 326ci V8 | |
| 1964 - 1965 Pontiac Tempest | 5.3L 326ci V8 |
