Attributes:

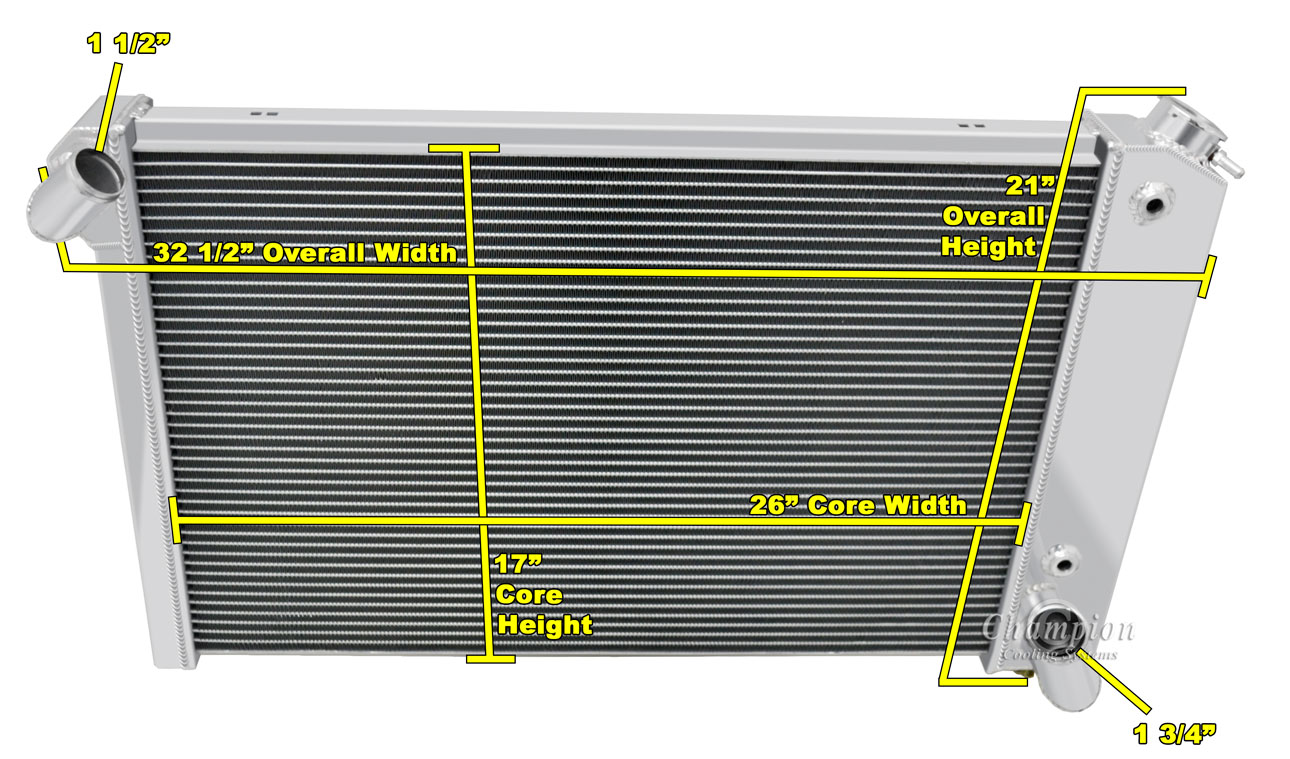

| CORE DIM (H x W): 17 X 26 |
| OVERALL (H x W): 20 1/2 X 31 5/8 |
| HOSE LOCATIONS: IN: DRIVER - OUT: PASSENGER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/2-20 STRAIGHT THREAD, INVERTED FLARE |
| MOUNTING TYPE: SADDLE |
| FLOW DIRECTION: CROSS FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1969 - 1972 Chevrolet Corvette | 5.7L 350ci V8 | Small Block Engine |
