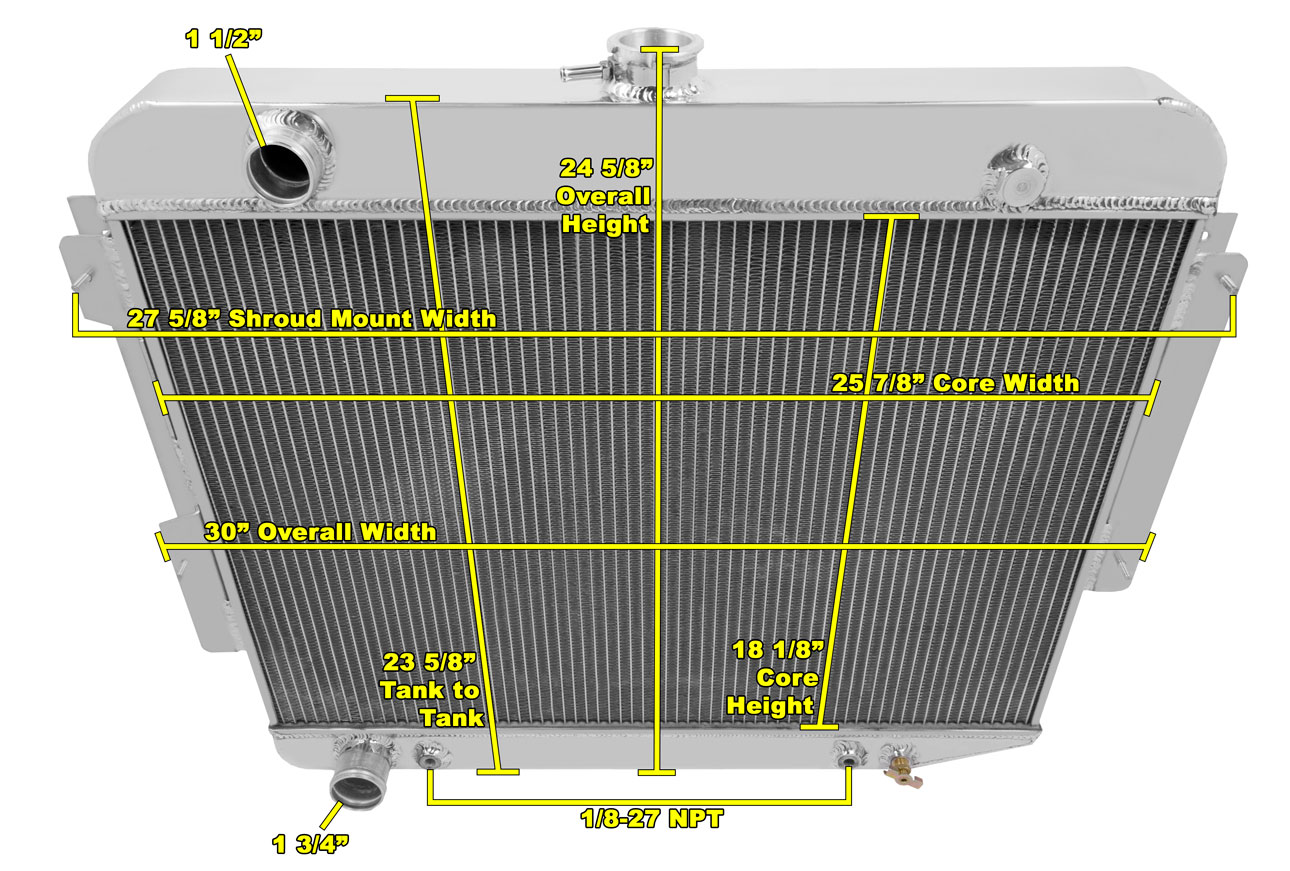

This radiator is NOT designed for the factory shroud, please verify the shroud mounting width(27 5/8") before ordering
Attributes:
| CORE DIM (H x W): 18 1/8 X 25 7/8 |
| OVERALL (H x W): 24 5/8 X 30 |
| HOSE LOCATIONS: IN: DRIVER - OUT: DRIVER |
| HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4 |
| FILL NECK: YES |
| TRANS COOLER: 1/8-27NPT |
| MOUNTING TYPE: BRACKET |
| FLOW DIRECTION: DOWN FLOW |
| CORE ROWS: 2 ROW WITH 1" TUBES |
| CORE THICKNESS: 2 1/4 |
Applications:
| Name | Engine | Notes |
|---|---|---|
| 1966 - 1969 Dodge Charger Base | 5.2L 318ci V8 | |
| 1967 - 1969 Dodge Charger R/T | 5.2L 318ci V8 | |
| 1969 Dodge Charger 500 | 5.2L 318ci V8 | |
| 1969 Dodge Charger SE | 5.2L 318ci V8 |
